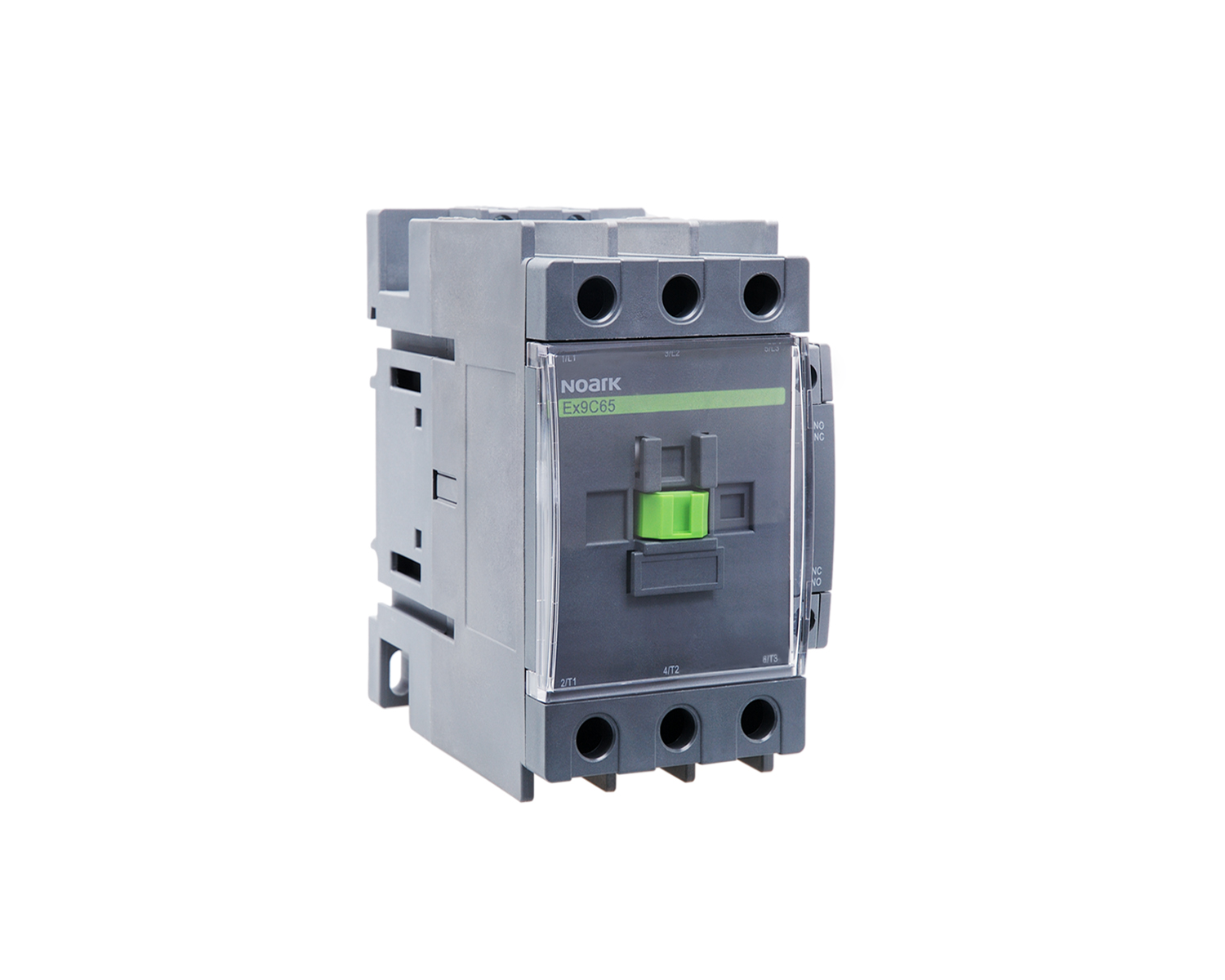

Ex9C40 11 3P 230V Stycznik, 3-bieg., 40A, 18,5kW AC-3, nap. cewki 230 V AC, 1 NC + 1 NO wbud. styki pomoc.
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 101248 |
| GTIN(EAN) | 8592765012494 |
| Price unit | piece |
| Catalog price | 384,74 zł (312,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,3 kg |
| ETIM class: | Power contactor, AC switching |
| Modular version: | no |
| Rated operation power at AC-3, 400 V: | 18.5 kW |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Rated operation current Ie at AC-3, 400 V: | 40 A |
| Rated operation current Ie at AC-1, 400 V: | 60 A |
| Type of electrical connection of main circuit: | Cable clamp |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-4, 400 V: | 40 A |
| Rated operation power at AC-4, 400 V: | 18.5 kW |
