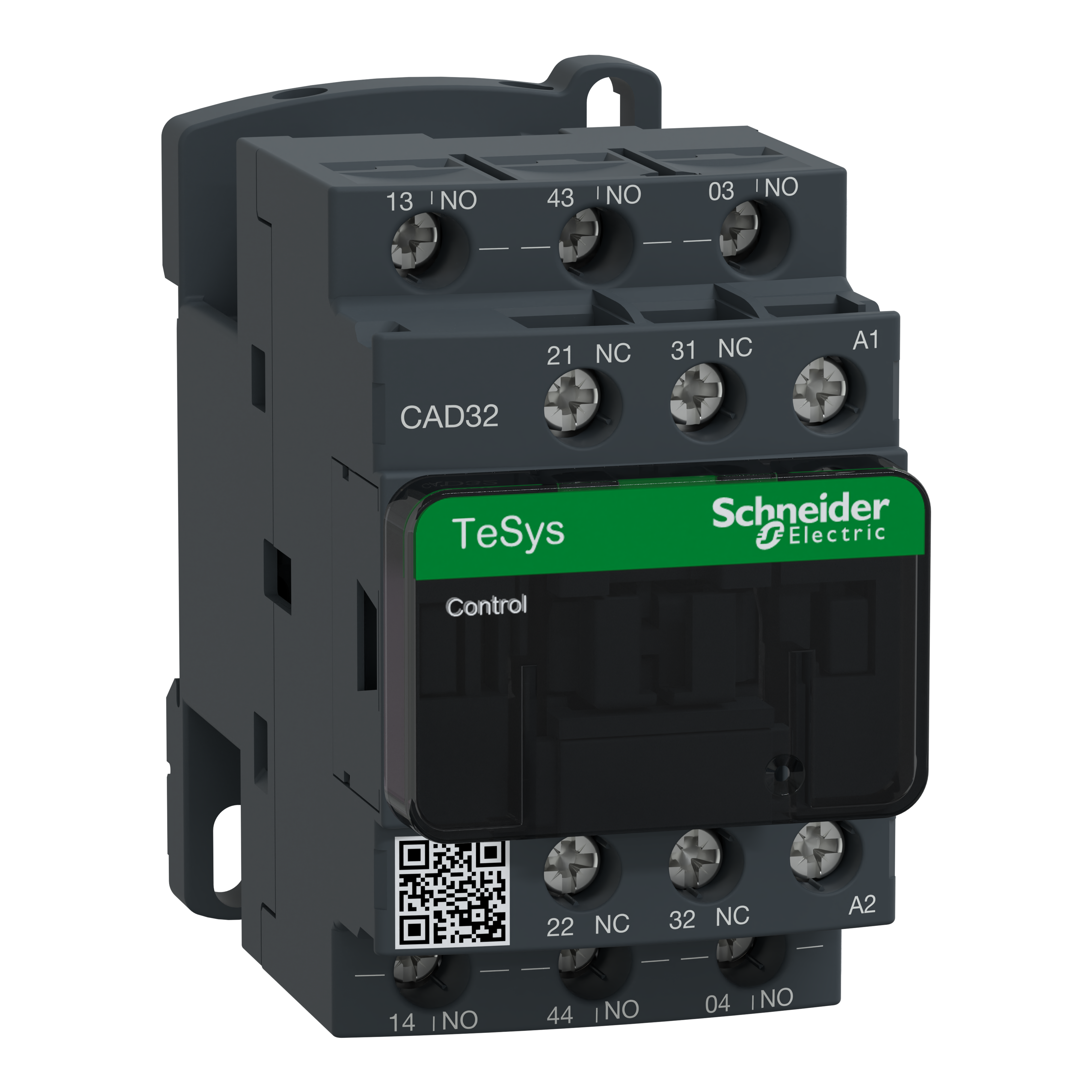

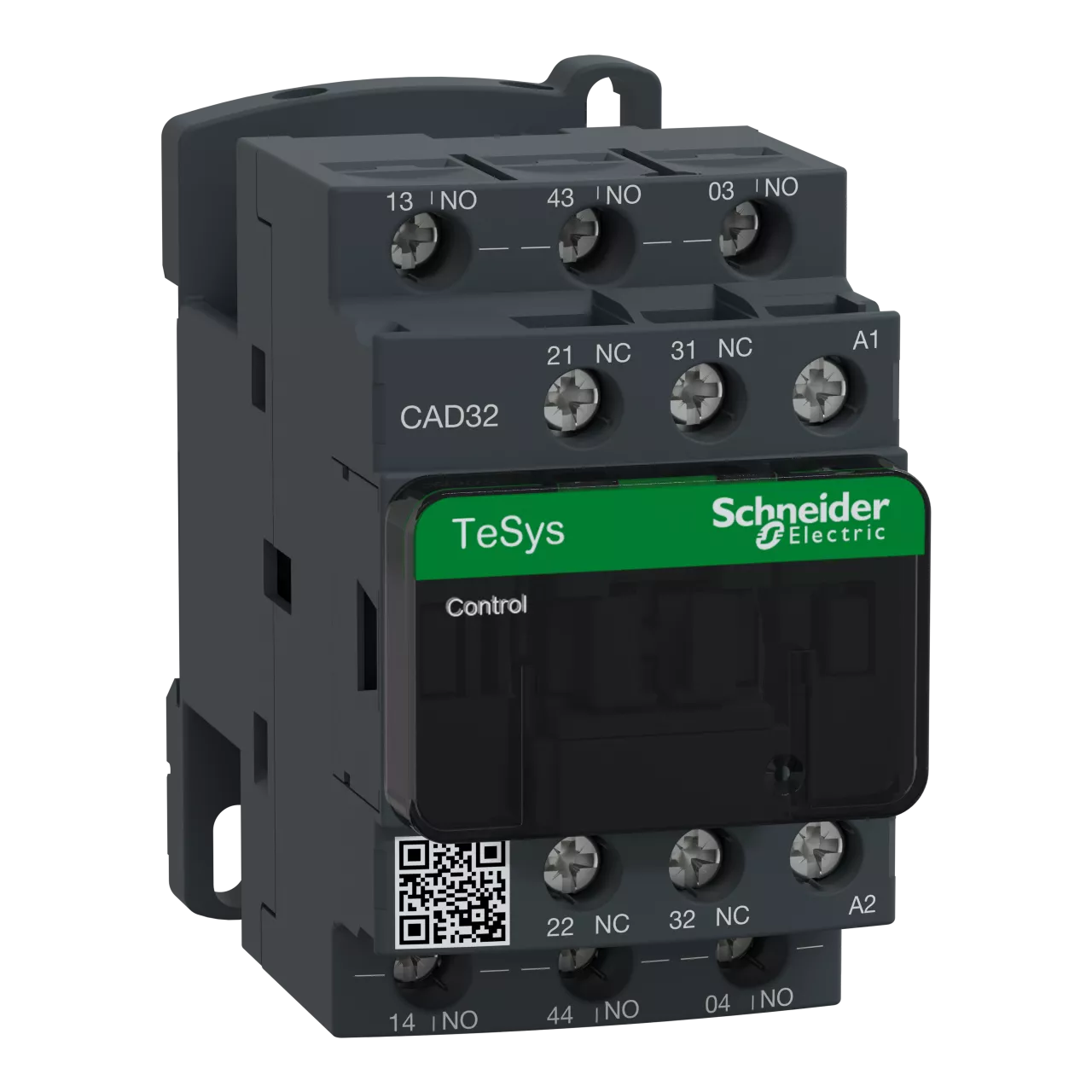

Stycznik pomocniczy, TeSys Deca, 3NO 2NC, cewka 110VAC, zaciski skrzynkowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | CAD32F7 |
| GTIN(EAN) | 3389110534276 |
| Price unit | piece |
| Catalog price | 258,76 zł (210,37 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik pomocniczy TeSys D, 5 styków (3NO + 2NC), 10A/690V, do sterowania obciążeniami elektromagnetycznymi AC-15/DC-13. Zapewnia obwód sterowania 110V 50/60Hz AC, podłączenie za pomocą zacisków skrzynkowych. Przy wysokiej częstotliwości pracy do 180 cykli/min i temperaturze otoczenia -40/+60°C, zapewnia wysoką niezawodność i trwałość. Kompaktowy (szerokość 45 mm), do mocowania na szynie DIN 35 mm lub za pomocą śrub. Certyfikat zgodności z wieloma normami (IEC, UL, CSA, CCC, EAC, Marine), produkt oznaczony ekologicznym znakiem Green Premium (RoHS/REACh).
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 353 g |
| ETIM class: | Contactor relay |
| Suitable for manual operation: | no |
| With LED indication: | no |
| Connection type auxiliary circuit: | Screw connection |
| Number of auxiliary contacts as change-over contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 3 |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Rated operation current Ie, 400 V: | 10 A |
| Mounting method: | DIN-rail/screw |
| Voltage type for actuating: | AC |
| Number of auxiliary contacts as normally closed contact, delayed switching: | 0 |
| Rated control supply voltage AC 60 Hz: | 110 - 110 V |
| Rated control supply voltage AC 50 Hz: | 110 - 110 V |
| Interface: | no |
| Number of auxiliary contacts as normally open contact, leading: | 0 |
