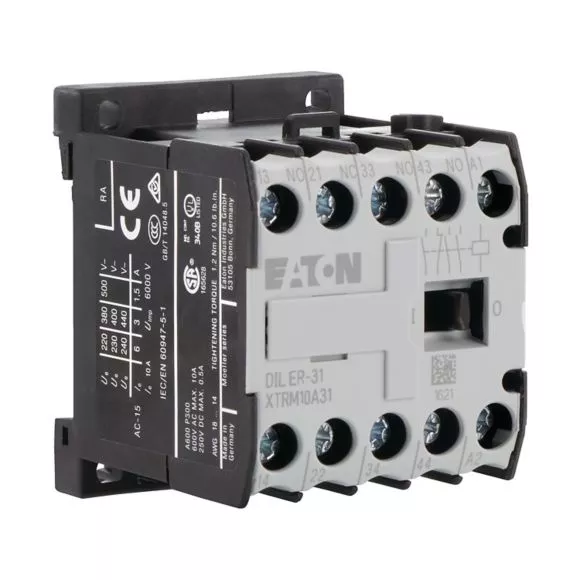

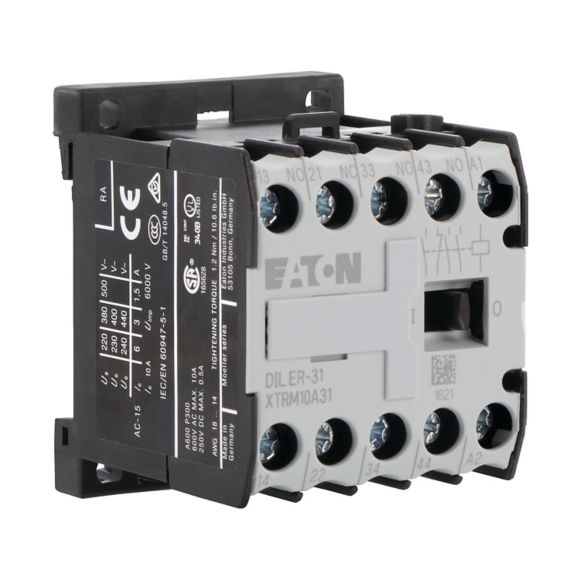

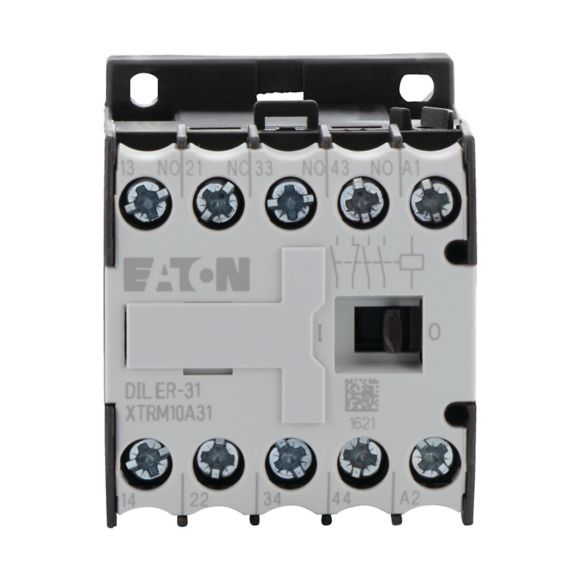

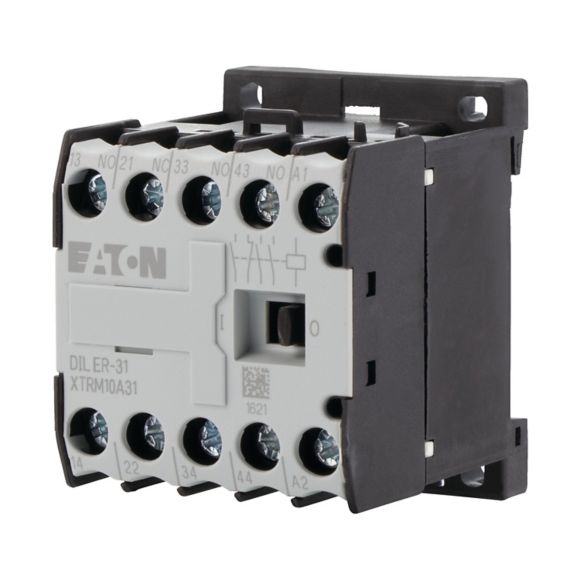

DILER-31(110V50HZ,120V60HZ) stycznik pomocniczy AC-15 I=3A 3Z 1R
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 051765 |
GTIN(EAN) | 4015080517658 |
Price unit | piece |
Catalog price | 379,21 zł (308,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Mały stycznik pomocniczy, zgodnie z IEC/EN60947, z połączeniami śrubowymi, można rozszerzać do 8 styków, zestyki z wymuszonym przewodzeniem, mocowanie na śruby i zaciski, ui 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, trwałość 10 mln cyklów łączenia mechanicznego, dostępne akcesoria: moduły łączników pomocniczych, układy ochronne, plombowana pokrywa do rozdzielacza instalacyjnego
Additional features:
Information | Value |
---|---|
Net weight: | 170 g |
ETIM class: | Contactor relay |
Mounting method: | DIN-rail/screw |
Interface: | no |
Number of auxiliary contacts as normally open contact: | 3 |
Number of auxiliary contacts as normally closed contact: | 1 |
Rated operation current Ie, 400 V: | 3 A |
Suitable for manual operation: | no |
Number of auxiliary contacts as change-over contact: | 0 |
Rated control supply voltage AC 50 Hz: | 110 - 110 V |
Rated control supply voltage AC 60 Hz: | 120 - 120 V |
Rated control supply voltage DC: | 0 - 0 V |
With LED indication: | no |
Connection type auxiliary circuit: | Screw connection |
Number of auxiliary contacts as normally closed contact, delayed switching: | 0 |
Number of auxiliary contacts as normally open contact, leading: | 0 |
Voltage type for actuating: | AC |
