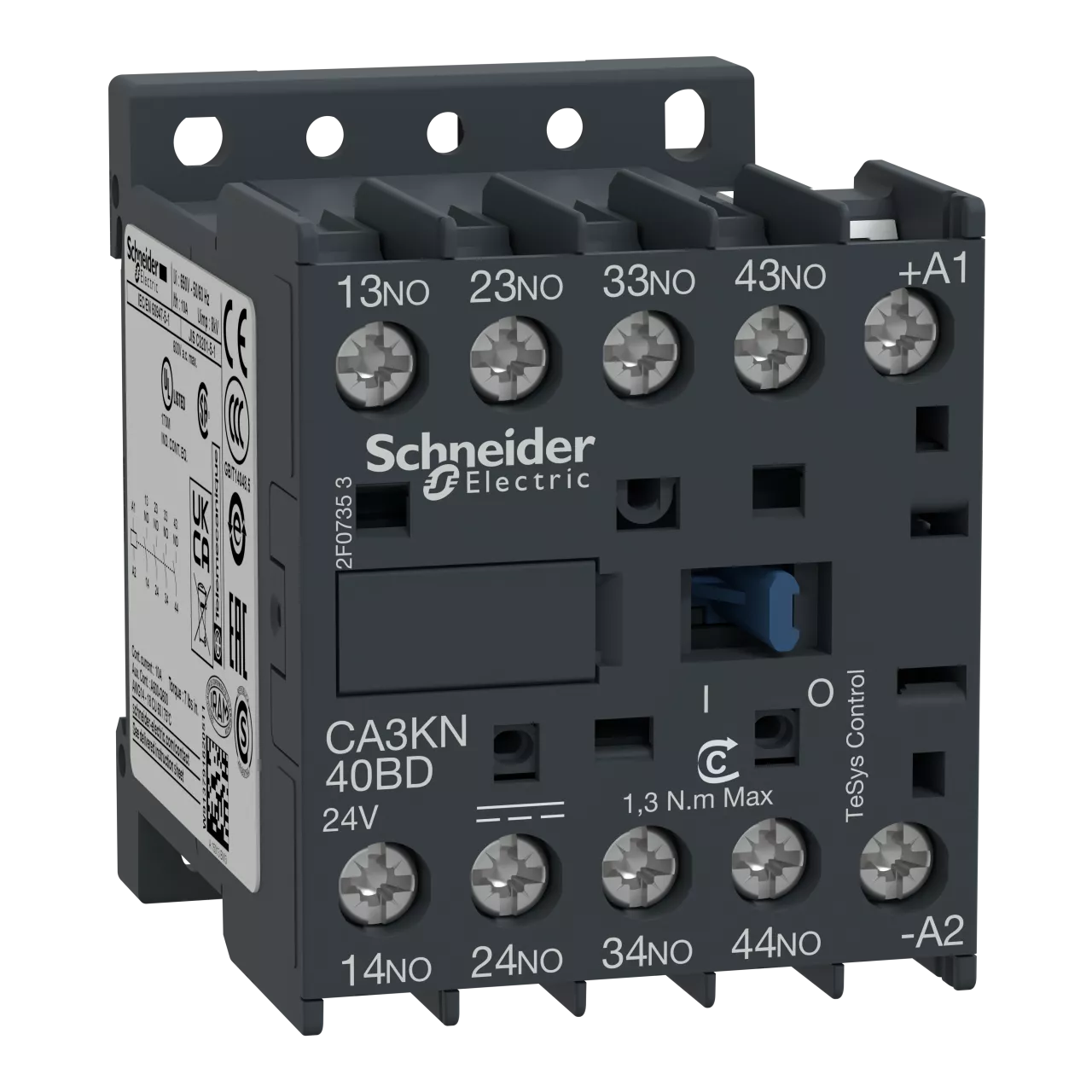

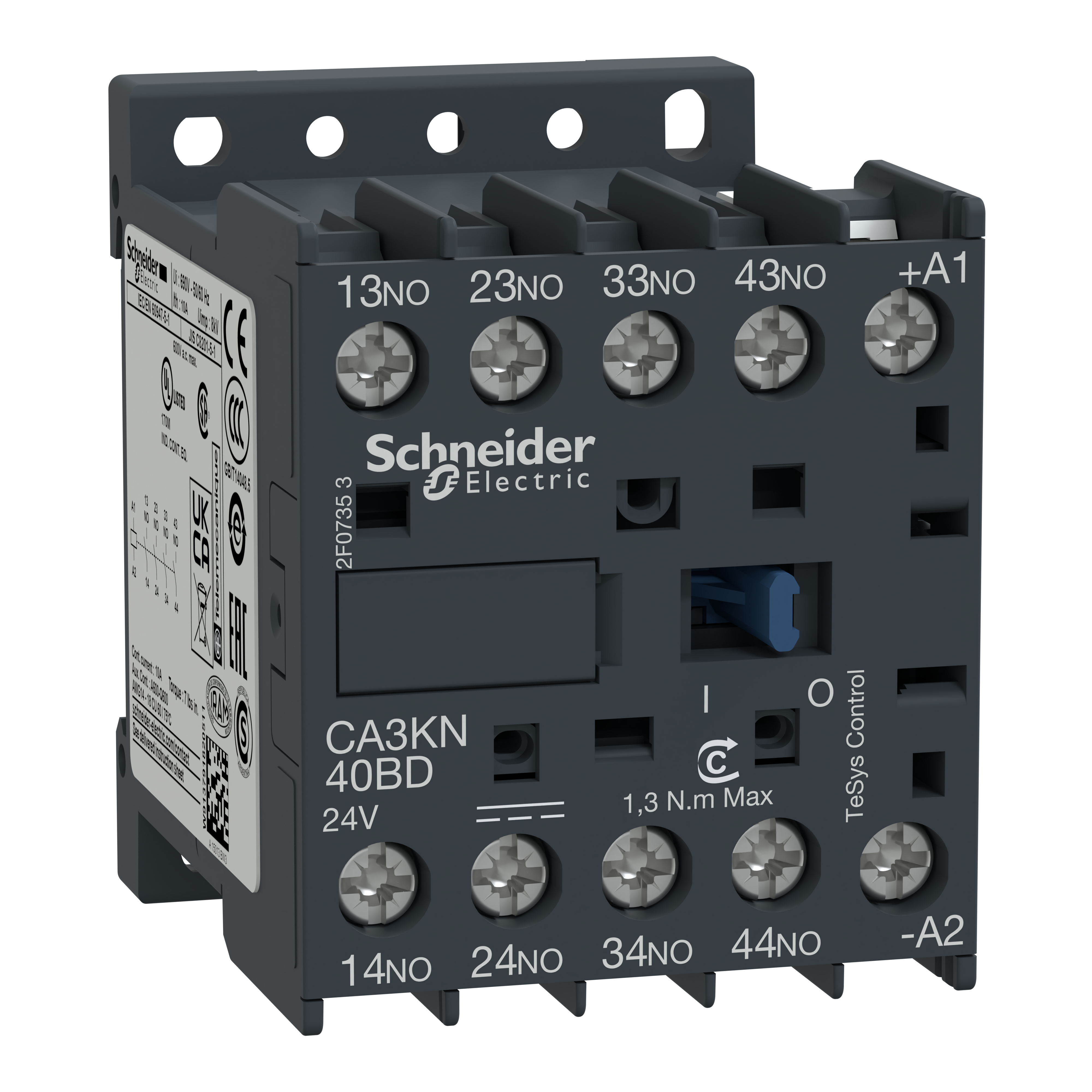

Miniaturowy stycznik pomocniczy, TeSys K, 4NO, cewka 24VDC, zaciski skrzynkowe
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | CA3KN40BD |
GTIN(EAN) | 3389110500219 |
Price unit | piece |
Catalog price | 244,22 zł (198,55 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik pomocniczy TeSys K, 4 styki (4NO), 10A/690V, do sterowania obciążeniami elektromagnetycznymi AC-15/DC-13. Zapewnia obwód sterowania 24V DC bez poboru prądu na rozruch, podłączenie za pomocą zacisków skrzynkowych. Przy wysokiej częstotliwości pracy do 180 cykli/min i temperaturze otoczenia -25/+50°C, zapewnia wysoką niezawodność i trwałość . Kompaktowy (szerokość 45 mm), do mocowania na szynie DIN 35 mm lub za pomocą śrub. Certyfikat zgodności z wieloma normami (IEC, UL, CSA, CCC, EAC), produkt oznaczony ekologicznym znakiem Green Premium (RoHS/REACh).
Additional features:
Information | Value |
---|---|
Gross weight: | 218 g |
ETIM class: | Contactor relay |
Suitable for manual operation: | no |
With LED indication: | no |
Connection type auxiliary circuit: | Screw connection |
Number of auxiliary contacts as change-over contact: | 0 |
Number of auxiliary contacts as normally open contact: | 4 |
Number of auxiliary contacts as normally closed contact: | 0 |
Rated operation current Ie, 400 V: | 10 A |
Mounting method: | DIN-rail/screw |
Voltage type for actuating: | DC |
Number of auxiliary contacts as normally closed contact, delayed switching: | 0 |
Rated control supply voltage DC: | 24 - 24 V |
Interface: | no |
Number of auxiliary contacts as normally open contact, leading: | 0 |
