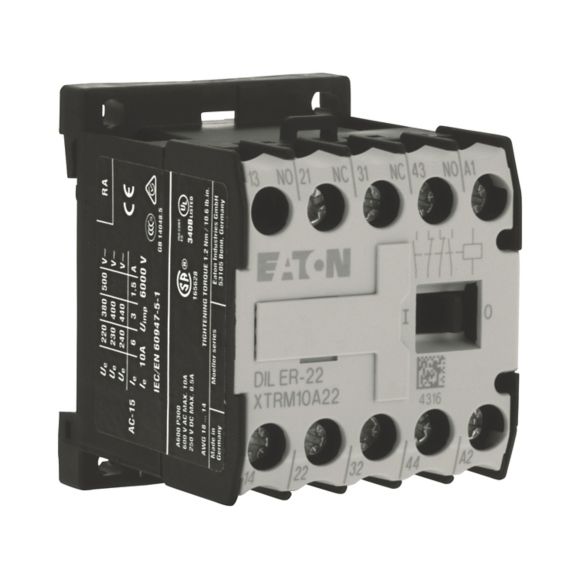

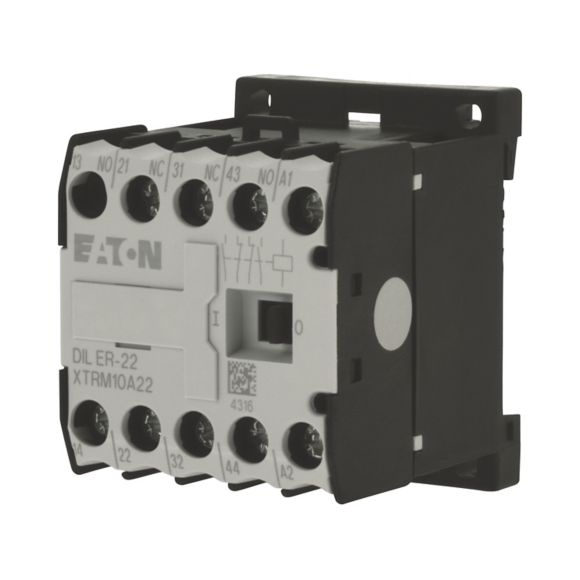

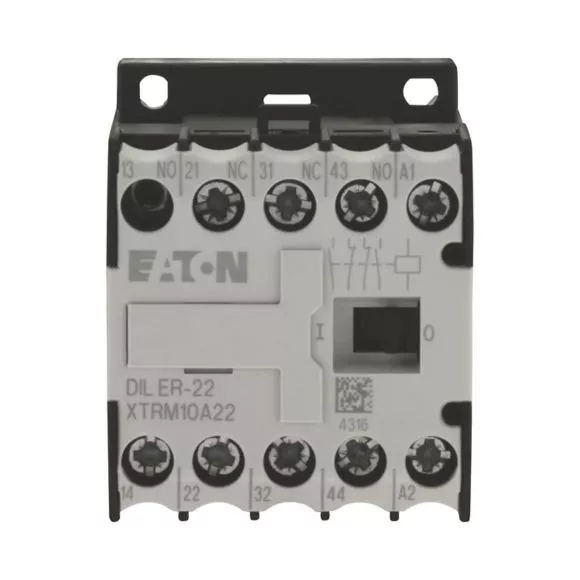

DILER-22-G(24VDC) stycznik pomocniczy AC-15 I=3A 2Z 2R
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 010042 |
GTIN(EAN) | 4015080100423 |
Price unit | piece |
Catalog price | 430,25 zł (349,80 zł + 23% VAT) |
Sale price | from 144,16 zł (117,20 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Mały stycznik pomocniczy, zgodnie z IEC/EN60947, z połączeniami śrubowymi, można rozszerzać do 8 styków, zestyki z wymuszonym przewodzeniem, mocowanie na śruby i zaciski, zintegrowane połączenie ochronne, ui 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, trwałość 20 mln cyklów łączenia mechanicznego, z wbudowanym układem ochronnym, dostępne akcesoria: moduły łączników pomocniczych, plombowana pokrywa do rozdzielacza instalacyjnego
Additional features:
Information | Value |
---|---|
Net weight: | 206 g |
ETIM class: | Contactor relay |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 24 - 24 V |
Voltage type for actuating: | DC |
Rated operation current Ie, 400 V: | 3 A |
Connection type auxiliary circuit: | Screw connection |
Mounting method: | DIN-rail/screw |
Interface: | no |
Number of auxiliary contacts as normally closed contact: | 2 |
Number of auxiliary contacts as normally open contact: | 2 |
Number of auxiliary contacts as normally closed contact, delayed switching: | 0 |
Number of auxiliary contacts as normally open contact, leading: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
With LED indication: | no |
Suitable for manual operation: | no |
