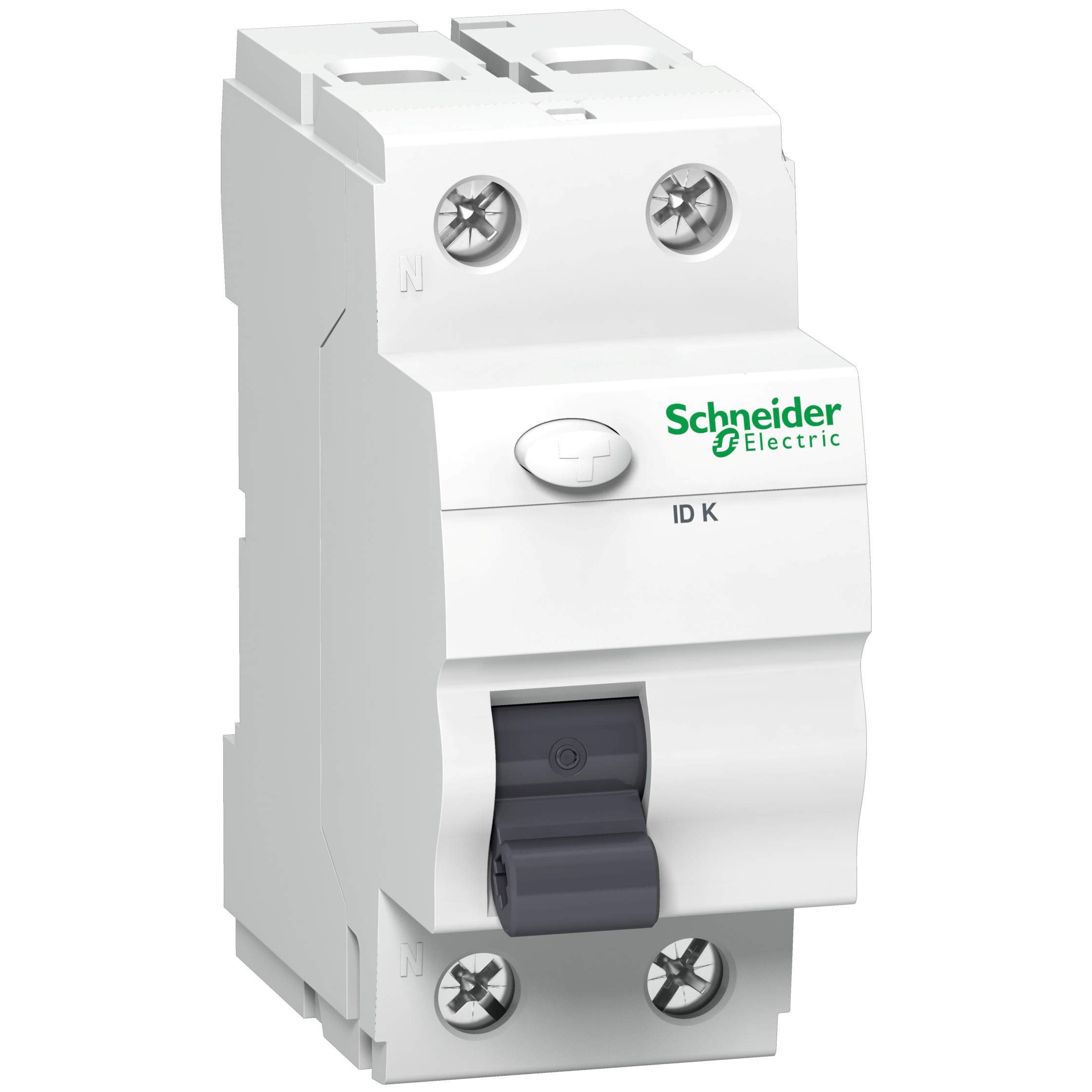

Wy??cznik ró?nicowopr?dowy K60 IDK-25-2-30-AC 25A 2-biegunowy 30mA typ AC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9Z05225 |
| GTIN(EAN) | 3606480473883 |
| Price unit | piece |
| Catalog price | 247,23 zł (201,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Wy??cznik ró?nicowopr?dowy serii IDK, o numerze A9Z05225, IDK-25-2-30-AC, 2-biegunowy, 25A, czu?o?? 30 mA, typ AC - poprawnie reaguje na pr?dy up?ywu sinusoidalne Pozwala na realizacj? ochrony przeciwpora?eniowej w instalacjach elektrycznych. enterWy??cznik ró?nicowopr?dowy dopasowany do potrzeb budownictwa mieszkaniowego i podobnego. Podwójne zaciski od do?u (szyna + przewód). Karbowane zaciski zwi?kszaj?ce pewno?? pod??czenia. o?liwo?? sprawdzania poprawno?ci dzia?ania przyciskiem kontrolnym "T" jedynie raz do roku, przez pierwsze 7 lat u?ytkowania. Tor N umieszony po lewej stronie, u?atwia oszynowanie z wy??cznikami nadpr?dowymi.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 10 |
| Gross weight: | 196 g |
| ETIM class: | Residual current circuit breaker (RCCB) |
| Short-time delayed tripping: | no |
| Built-in depth: | 44 mm |
| Selective protection: | no |
| Connectable conductor cross section solid-core: | 1 - 35 mm² |
| Explosion-proof: | no |
| Leakage current type: | AC |
| Additional equipment possible: | no |
| Voltage type: | AC |
| Surge current capacity: | 0.25 kA |
| Degree of protection (IP): | IP20 |
| Number of poles: | 2 |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Width in number of modular spacings: | 2 |
| Rated fault current: | 0.03 A |
| Frequency: | 50/60 Hz |
| Mounting method: | DIN rail |
| Ambient temperature during operating: | -5 - 40 °C |
| Rated current: | 25 A |
| Rated voltage: | 230 V |
| Rated insulation voltage Ui: | 440 V |
| Connectable conductor cross section multi-wired: | 1 - 25 mm² |
| Pollution degree: | 2 |
| With interlocking device: | yes |
