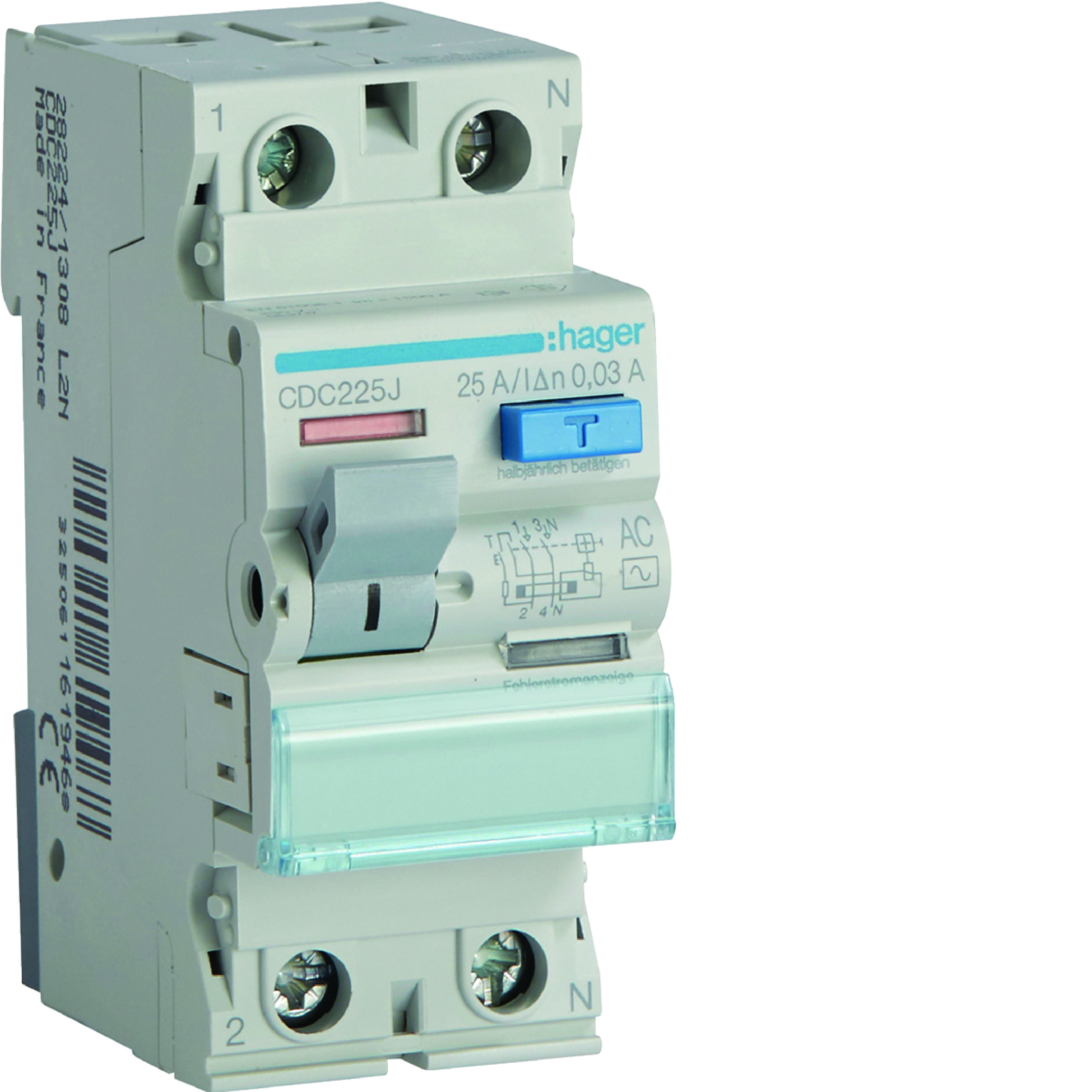

RCCB Wyłącznik różnicowoprądowy 1P+N 25A 30mA 6kA AC
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | CDC225J |
GTIN(EAN) | 3250611619468 |
Price unit | piece |
Catalog price | 289,05 zł (235,00 zł + 23% VAT) |
Sale price | from 87,33 zł / szt. (71,00 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
Gross weight: | 198 g |
Country of origin | Francja |
ETIM class: | Residual current circuit breaker (RCCB) |
Rated current: | 25 A |
Selective protection: | no |
Short-time delayed tripping: | no |
With interlocking device: | yes |
Short-circuit breaking capacity (Icw): | 6 kA |
Connectable conductor cross section multi-wired: | 1 - 16 mm² |
Number of poles: | 2 |
Built-in depth: | 70 mm |
Mounting method: | DIN rail |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
Rated voltage: | 230 V |
Surge current capacity: | 0.25 kA |
Rated insulation voltage Ui: | 500 V |
Frequency: | 50 Hz |
Rated fault current: | 0.03 A |
Rated impulse withstand voltage Uimp: | 4 kV |
Width in number of modular spacings: | 2 |
Pollution degree: | 2 |
Degree of protection (IP): | IP20 |
Ambient temperature during operating: | -25 - 40 °C |
Leakage current type: | AC |
Additional equipment possible: | yes |
Explosion-proof: | no |
Voltage type: | AC |
RAL-number (similar): | 7005 |
Power loss: | 2.32 W |
