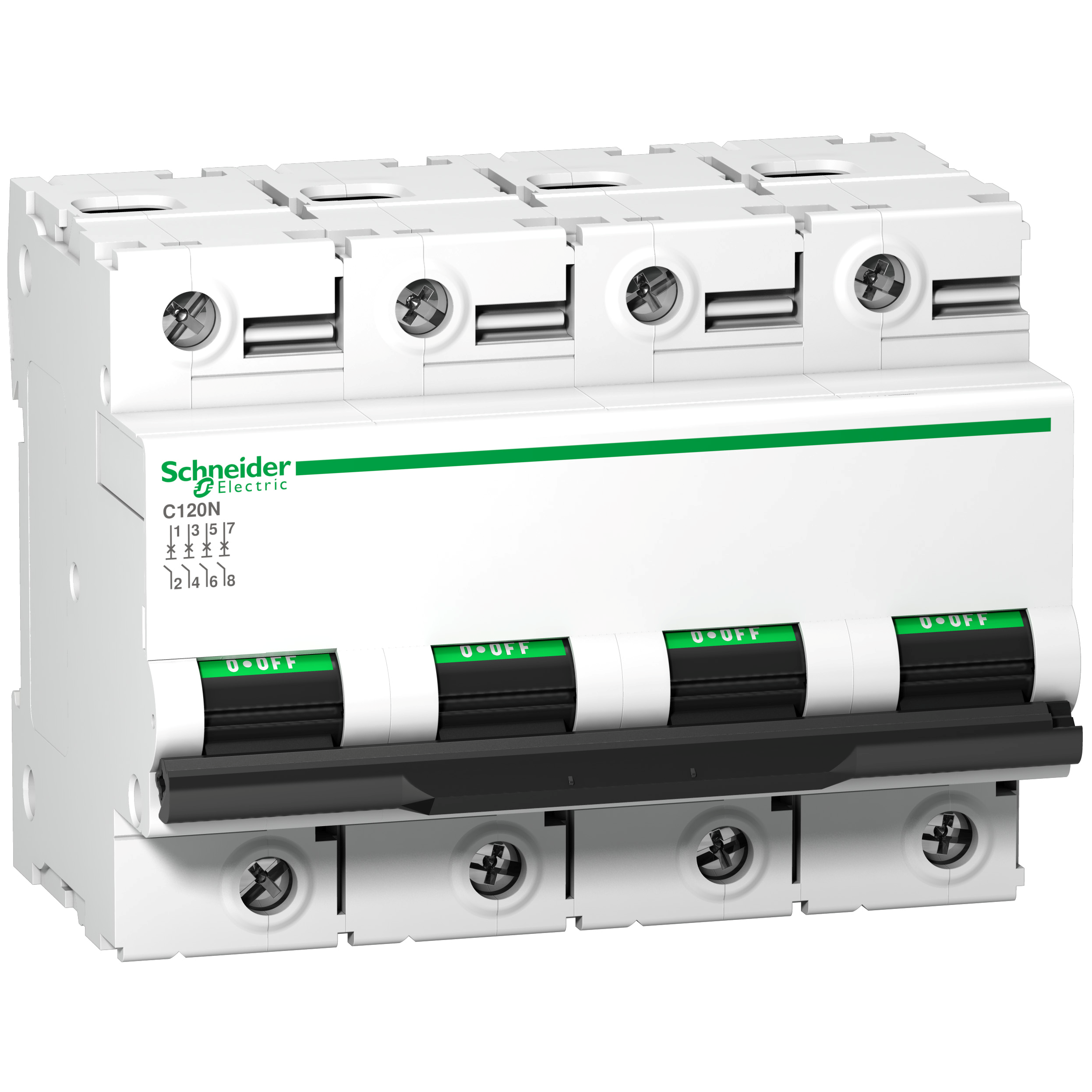

Wyłącznik nadprądowy Acti9 C120N-D125-4 D 125A 4-biegunowy
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9N18393 |
| GTIN(EAN) | 3606480379642 |
| Price unit | piece |
| Catalog price | 2 498,13 zł (2 031,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 105 |
| Gross weight: | 776 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Frequency: | 50 - 60 Hz |
| Number of poles (total): | 4 |
| Built-in depth: | 44 mm |
| Connectable conductor cross section solid-core: | 1.5 - 50 mm² |
| Explosion-proof: | no |
| Additional equipment possible: | yes |
| Voltage type: | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 20 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 10 kA |
| Concurrently switching neutral conductor: | yes |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 10 kA |
| Degree of protection (IP): | IP20 |
| Rated impulse withstand voltage Uimp: | 6 kV |
| Release characteristic: | D |
| Width in number of modular spacings: | 6 |
| Number of protected poles: | 4 |
| Flush-mounted installation: | no |
| Ambient temperature during operating: | -25 - 70 °C |
| Over voltage category: | 4 |
| Current limiting class: | 3 |
| Rated current: | 125 A |
| Rated voltage: | 400 V |
| Rated insulation voltage Ui: | 500 V |
| Connectable conductor cross section multi-wired: | 1 - 35 mm² |
| Pollution degree: | 3 |
