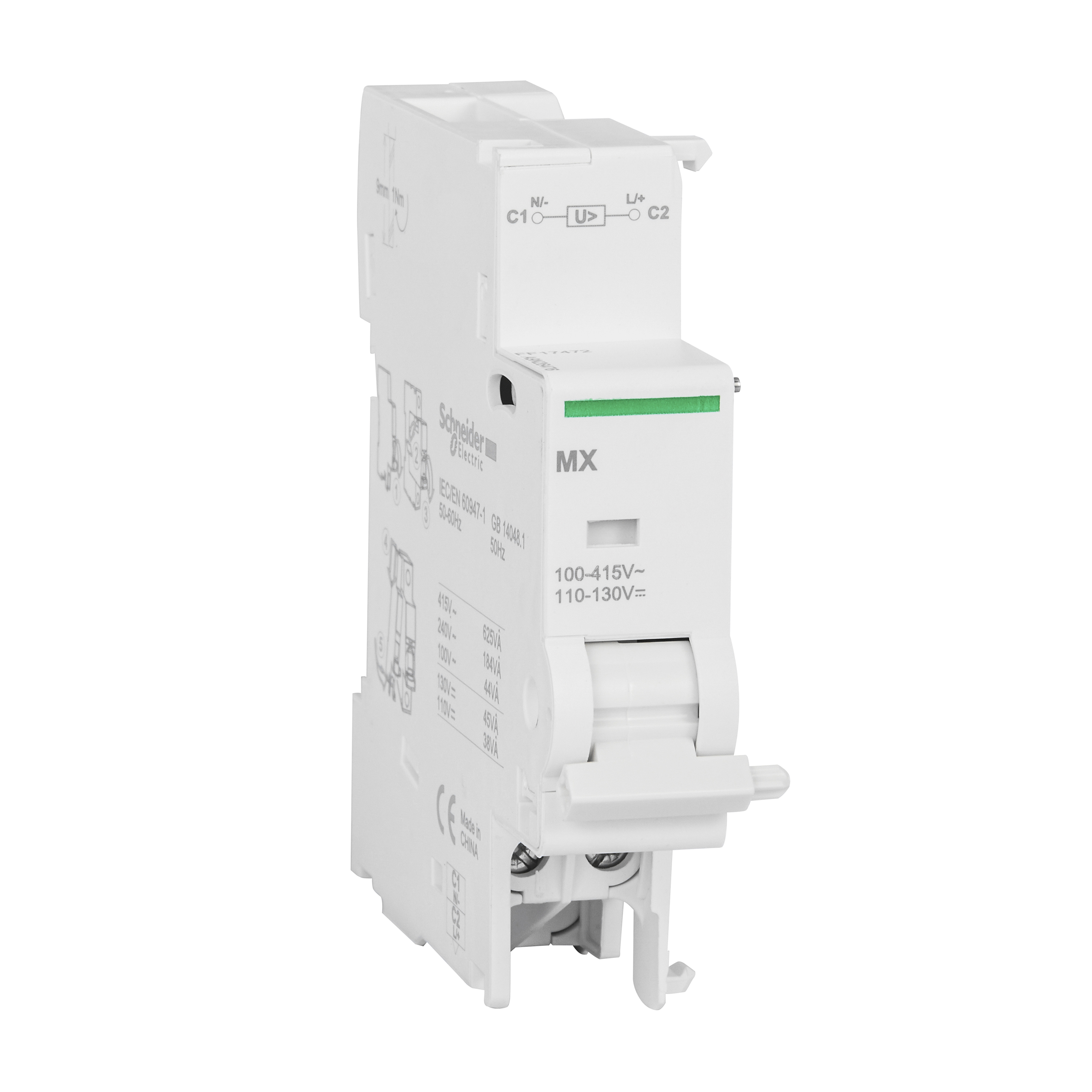

Wyzwalacz wzrostowy Acti9 MX-230/400 A9N26476 100…415 VAC, 110…130 VDC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9N26476 |
| GTIN(EAN) | 3606480378126 |
| Price unit | piece |
| Catalog price | 493,23 zł (401,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Ten produkt MX jest pomocniczym wyzwalaczem wzrostowym. Jest mocowany na szynie DIN. Napięcie obwodu sterującego Uc wynosi od 100V AC do 415V AC z częstotliwością 50/60Hz lub od 110V DC do 130V DC. Wymiary wynoszą (szer.) 18 mm x (wys.) 82,5 mm x (gł.) 73,5 mm.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 14 |
| Gross weight: | 69 g |
| ETIM class: | Auxiliary device for distribution board devices |
| Device fitting: | Miniature circuit breaker (MCB) |
| With auto test for earth leakage function: | no |
| Number of fault-signal switches: | 0 |
| Rated voltage: | 415 V |
| Suitable for max. number of poles main contact unit (total): | 4 |
| Width in number of modular spacings: | 1 |
| Suitable for max. current main contact unit: | 125 A |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
| Additional equipment: | Shunt release (for power circuit breaker) |
| Installed at the factory: | no |
| Voltage type for actuating: | AC/DC |
