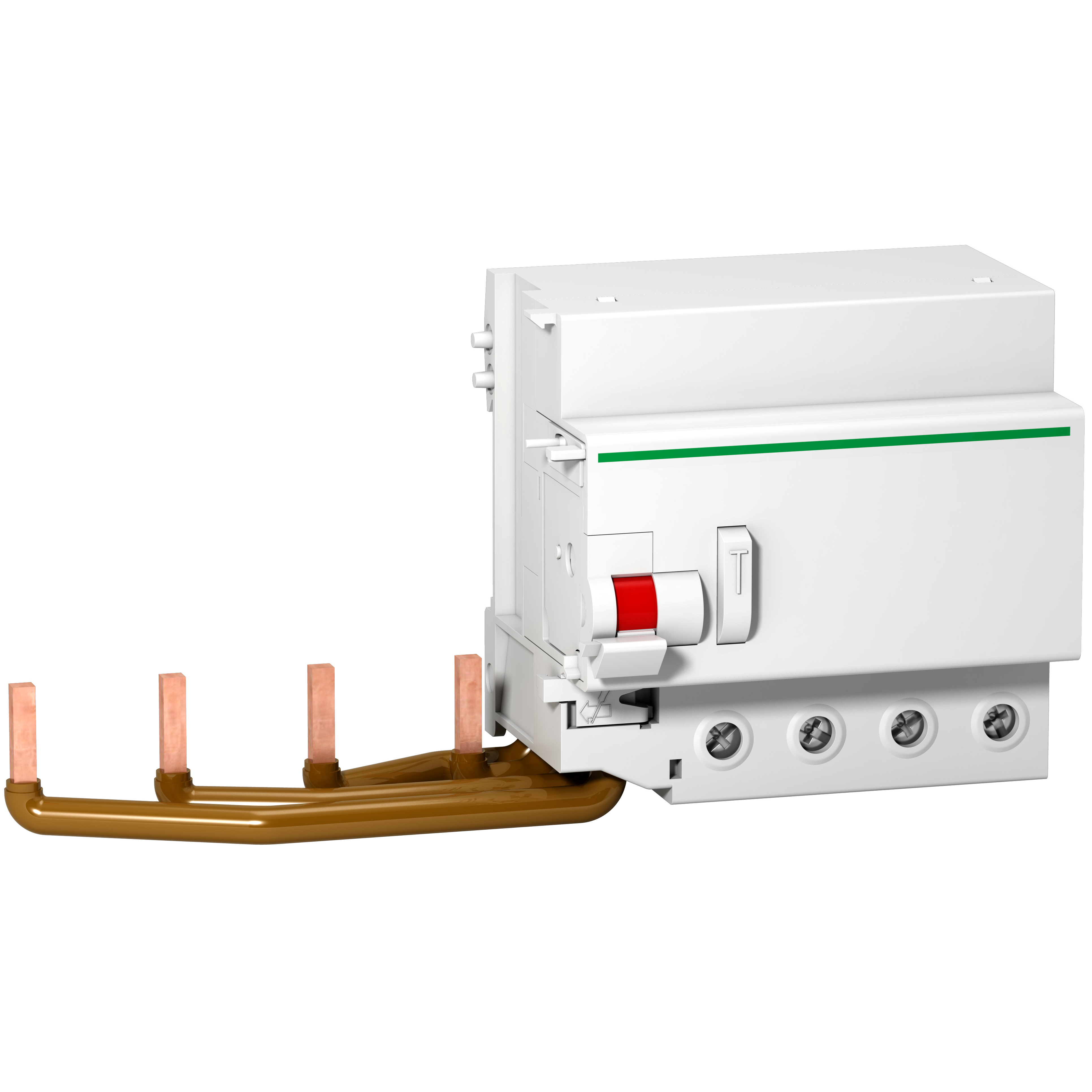

Blok różnicowoprądowy Acti9 VigiC120-4-30-A 4-biegunowy 30mA typ A
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9N18578 |
| GTIN(EAN) | 3606480376412 |
| Price unit | piece |
| Catalog price | 3 451,38 zł (2 806,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 87 |
| Gross weight: | 800 g |
| ETIM class: | Residual current circuit breaker (RCCB) module |
| Connectable conductor cross section solid-core: | 1 - 50 mm² |
| Frequency: | 50/60 Hz |
| Leakage current type: | A |
| Nominal current: | 125 A |
| Surge current capacity: | 0.250 kA |
| Rated fault current: | 0.03 - 0.03 A |
| Ambient temperature during operating: | -25 - 60 °C |
| Anti-nuisance tripping version: | no |
| Degree of protection (IP): | IP20 |
| Number of poles: | 4 |
| Rated impulse withstand voltage Uimp: | 6 kV |
| Rated fault current adjustable: | no |
| Delay adjustable: | no |
| Max. delay time: | 0 ms |
| Rated insulation voltage Ui: | 500 V |
| Nominal voltage: | 400 - 415 V |
| Connectable conductor cross section multi-wired: | 1 - 35 mm² |
| Pollution degree: | 3 |
| With interlocking device: | no |
