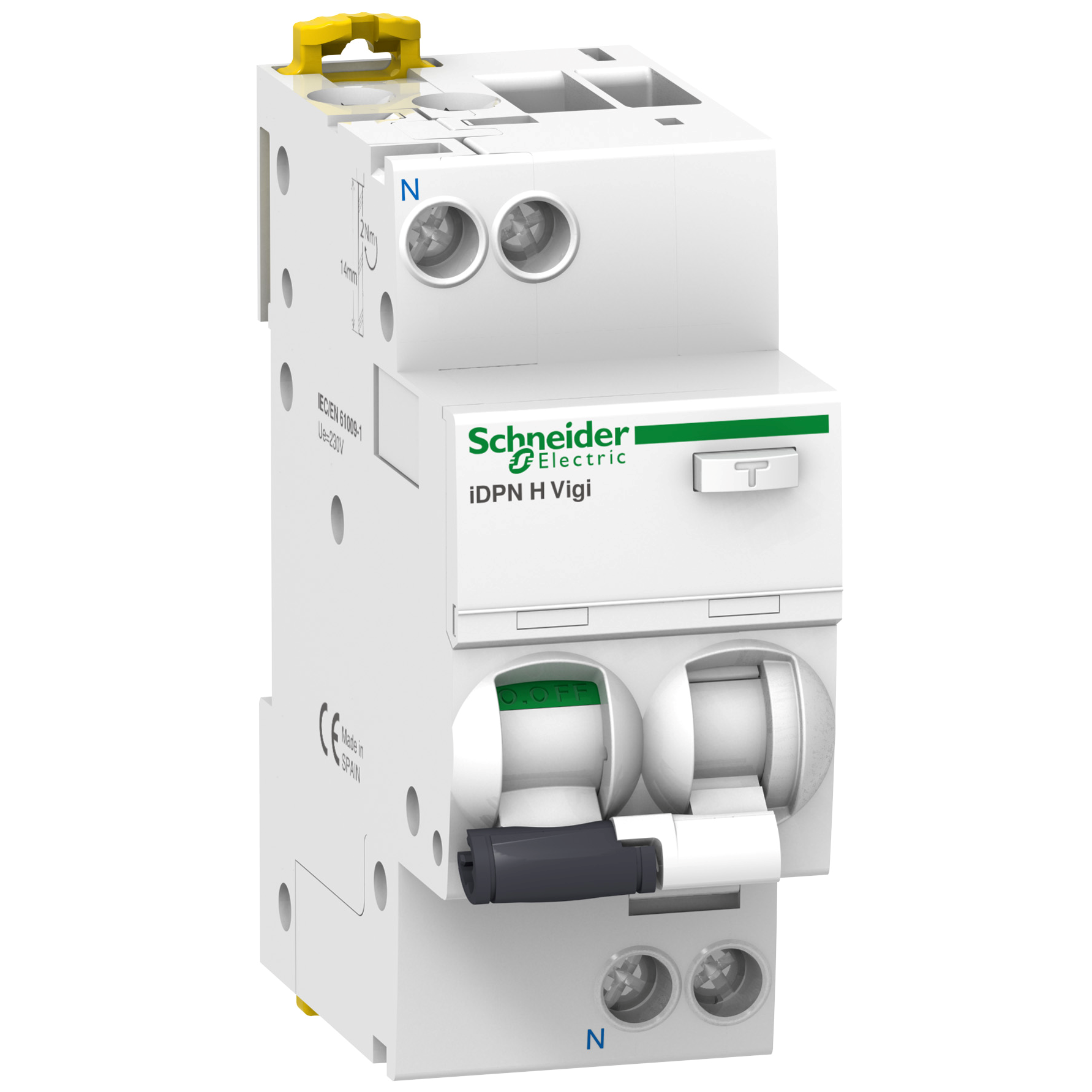

Wyłącznik kombinowany Acti9 iDPNHVigi-B16-30-1N-A B 16A 1N-biegunowy 30 mA typ A
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9D07616 |
| GTIN(EAN) | 3606480484308 |
| Price unit | piece |
| Catalog price | 650,67 zł (529,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Pozwala na realizację ochrony przeciwporażeniowej oraz chroni przed zwarciami i przeciążeniami w instalacjach elektrycznych. . Dwuczłonowa dźwignia informuje, który z członów wyłącznika wyzwolił. Optyczny wskaźnik Visi-Trip wyzwolenia elektrycznego, biało-czerwony oraz wskaźnik Visi-Safe -zielony wskaźnik potwierdzający otwarcie styków wyłącznika. Możliwość sprawdzania poprawności działania przyciskiem kontrolnym "T" jedynie raz do roku, przez pierwsze 7 lat użytkowania.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 28 |
| Gross weight: | 220 g |
| ETIM class: | Earth leakage circuit breaker |
| Number of poles (total): | 2 |
| Built-in depth: | 44 mm |
| Connectable conductor cross section solid-core: | 1 - 16 mm² |
| Leakage current type: | A |
| Voltage type: | AC |
| Surge current capacity: | 0.25 kA |
| Concurrently switching neutral conductor: | yes |
| Degree of protection (IP): | IP20 |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 10 kA |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Release characteristic: | B |
| Rated short-circuit breaking capacity according to EN 61009: | 10 kA |
| Width in number of modular spacings: | 2 |
| Number of protected poles: | 1 |
| Rated fault current: | 0.03 A |
| Disconnection characteristic: | Undelayed |
| Frequency: | 50 Hz |
| Flush-mounted installation: | no |
| Ambient temperature during operating: | -25 - 60 °C |
| Anti-nuisance tripping version: | no |
| Over voltage category: | 3 |
| Current limiting class: | 3 |
| Rated current: | 16 A |
| Rated voltage: | 230 V |
| Rated insulation voltage Ui: | 400 V |
| Connectable conductor cross section multi-wired: | 1 - 10 mm² |
| Pollution degree: | 3 |
| With interlocking device: | no |
