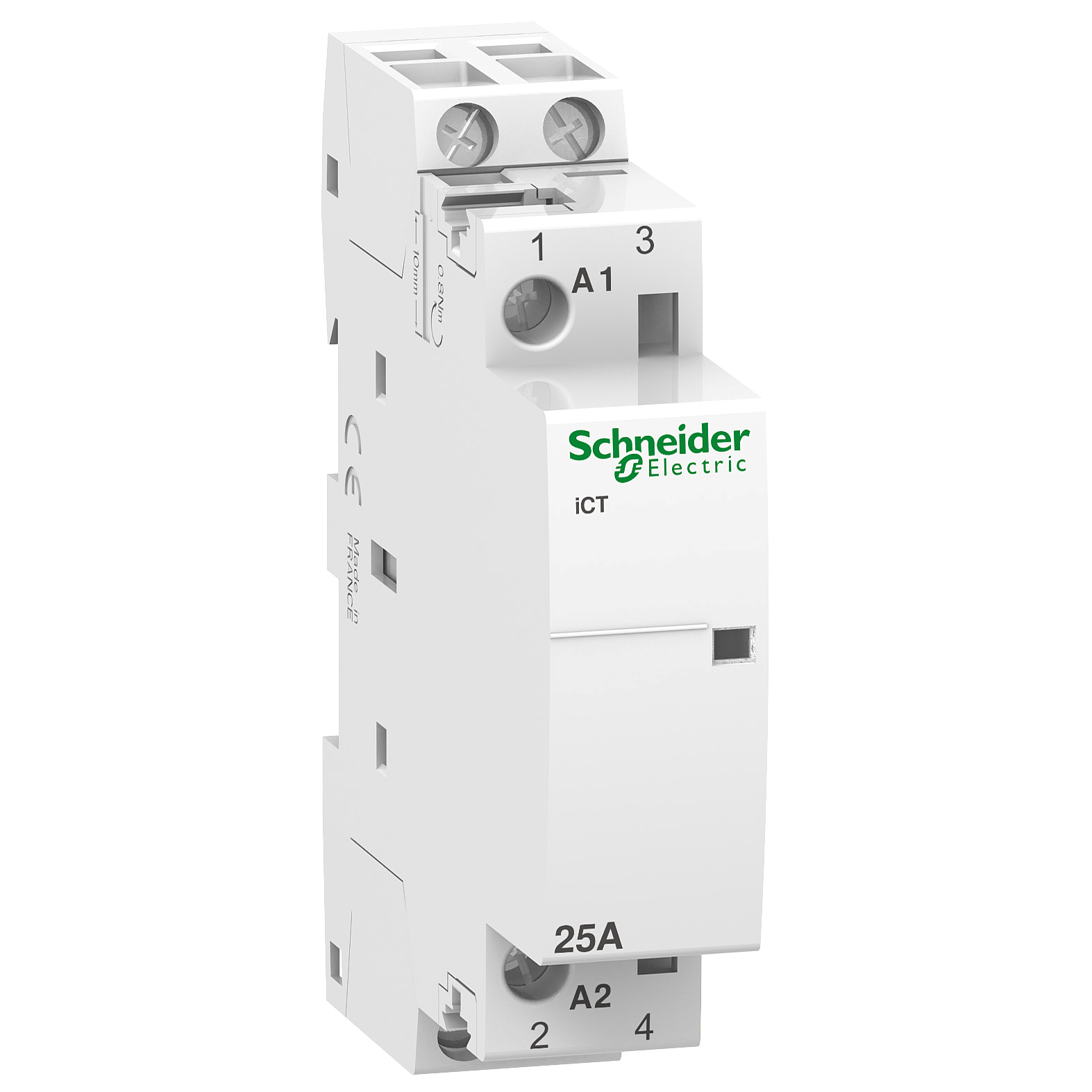

Stycznik modułowy Acti9 iCT50-25-20-230 25A 2NO 50Hz 230/240 VAC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9C20732 |
GTIN(EAN) | 3606480088575 |
Price unit | piece |
Catalog price | 221,40 zł (180,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik modułowy serii iCT, o numerze A9C20732, iCT50-25-20-230, napięcie sterowania 230/240 VAC 50Hz, 2 styki zwierne, prąd znamionowy AC7A: 25 A, do sterowania obwodami elektrycznymi. Optyczny wskaźnik stanu styków wyjściowych, możliwość rozbudowy o styki pomocnicze Jest to urządzenie zdalnego sterowania 2P z 2 stykami normalnie otwartymi.
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 8 |
Gross weight: | 116 g |
ETIM class: | Installation contactor for distribution board |
Built-in depth: | 43.5 mm |
Additional equipment possible: | yes |
Rated operation current: | 25 A |
Voltage type (excitation voltage): | AC |
Voltage type (operating voltage): | AC |
Degree of protection (IP): | IP20 |
Rated operating voltage: | 250 - 250 V |
Rated excitation voltage: | 230 - 240 V |
Max. load fluorescent lamp: | 1200 VA |
Max. load fluorescent lamp (Duo circuit): | 2400 VA |
Width in number of modular spacings: | 1 |
Max. load fluorescent lamp (parallel compensated): | 1200 VA |
Max. incandescent lamp load: | 2850 W |
Number of contacts as normally open contact: | 2 |
Number of contacts as normally closed contact: | 0 |
Slider for hand switch: | no |
With day/night function: | no |
Hum-free: | no |
Utility category: | 7 |
