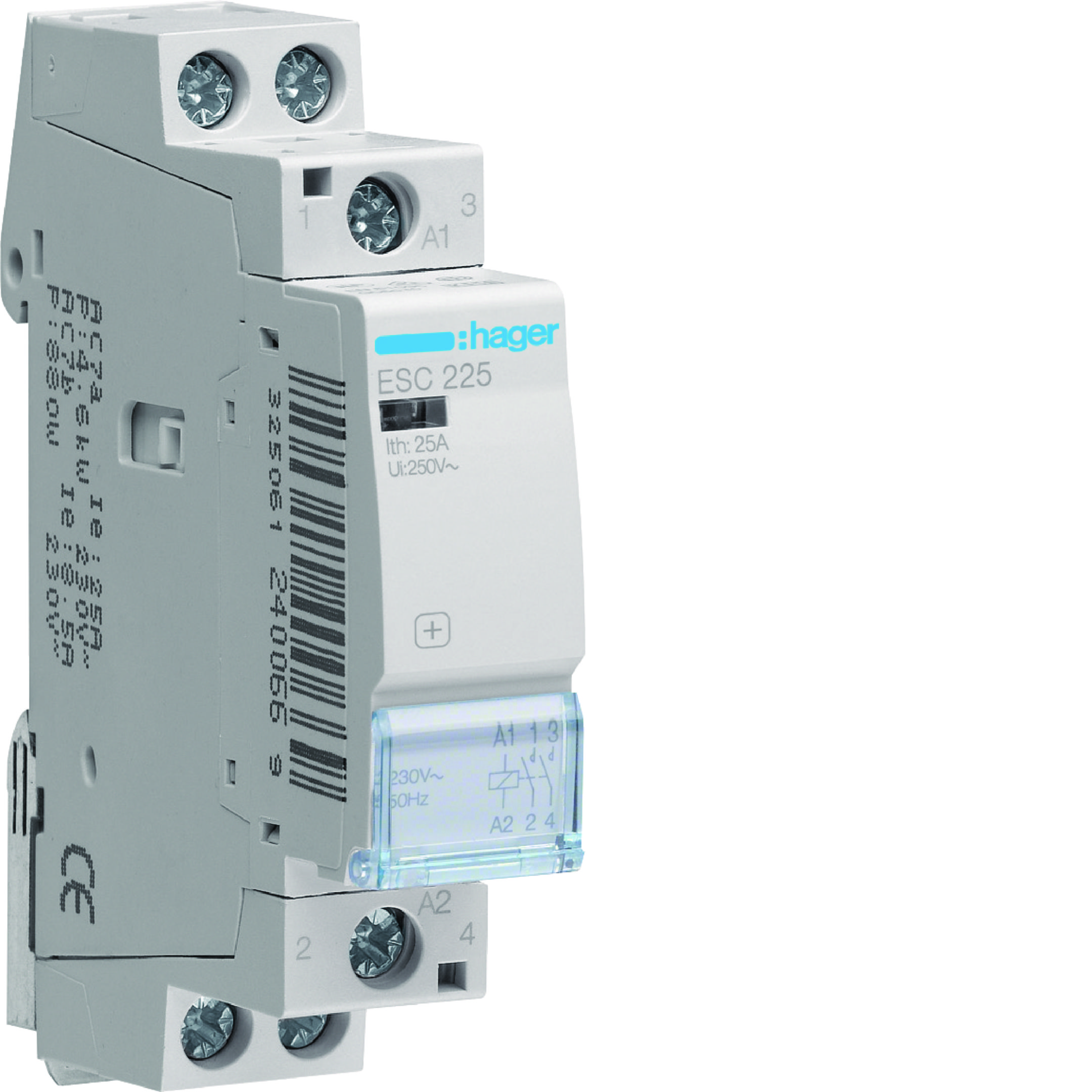

Stycznik 230VAC 2NO 25A AC-7a/b
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | ESC225 |
| GTIN(EAN) | 3250612400669 |
| Price unit | piece |
| Catalog price | 285,36 zł (232,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 117 g |
| Country of origin | Francja |
| ETIM class: | Installation contactor for distribution board |
| Rated operation current: | 25 A |
| Max. load fluorescent lamp: | 950 VA |
| Built-in depth: | 60 mm |
| Slider for hand switch: | no |
| Max. load fluorescent lamp (Duo circuit): | 1990 VA |
| Voltage type (excitation voltage): | AC |
| Rated operating voltage: | 230 - 230 V |
| Number of contacts as normally open contact: | 2 |
| Rated excitation voltage: | 230 - 230 V |
| Voltage type (operating voltage): | AC |
| Max. incandescent lamp load: | 1900 W |
| Number of contacts as normally closed contact: | 0 |
| Max. load fluorescent lamp (parallel compensated): | 810 VA |
| Degree of protection (IP): | IP2X |
| Additional equipment possible: | yes |
| With day/night function: | no |
| Hum-free: | no |
| Width in number of modular spacings: | 1 |
| Utilization category according to EN IEC 60947-4-1: |
Buy online
Shop
Available
Buy
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-11-08 11:38:31 |
| Files to download: | |
| External links: |
