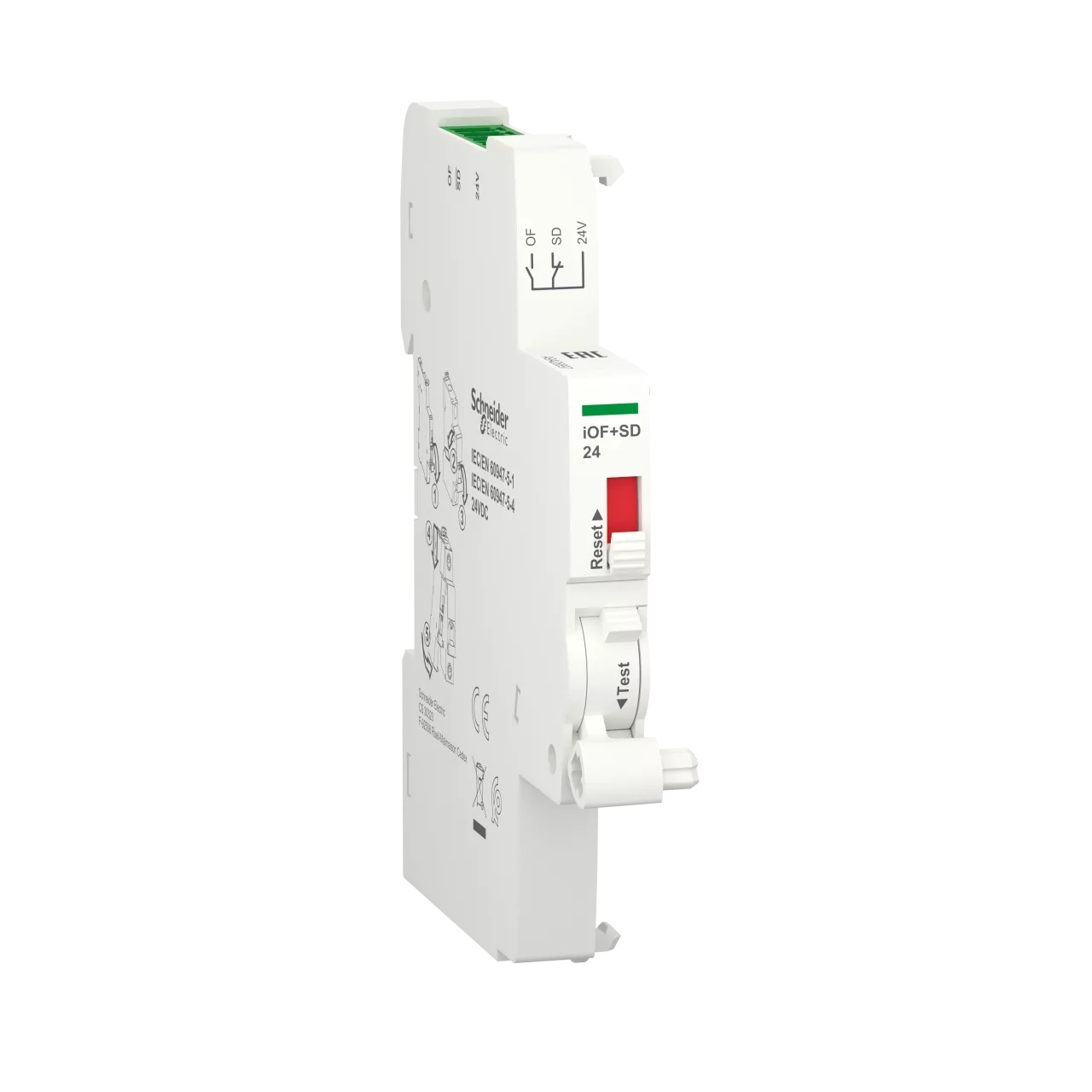

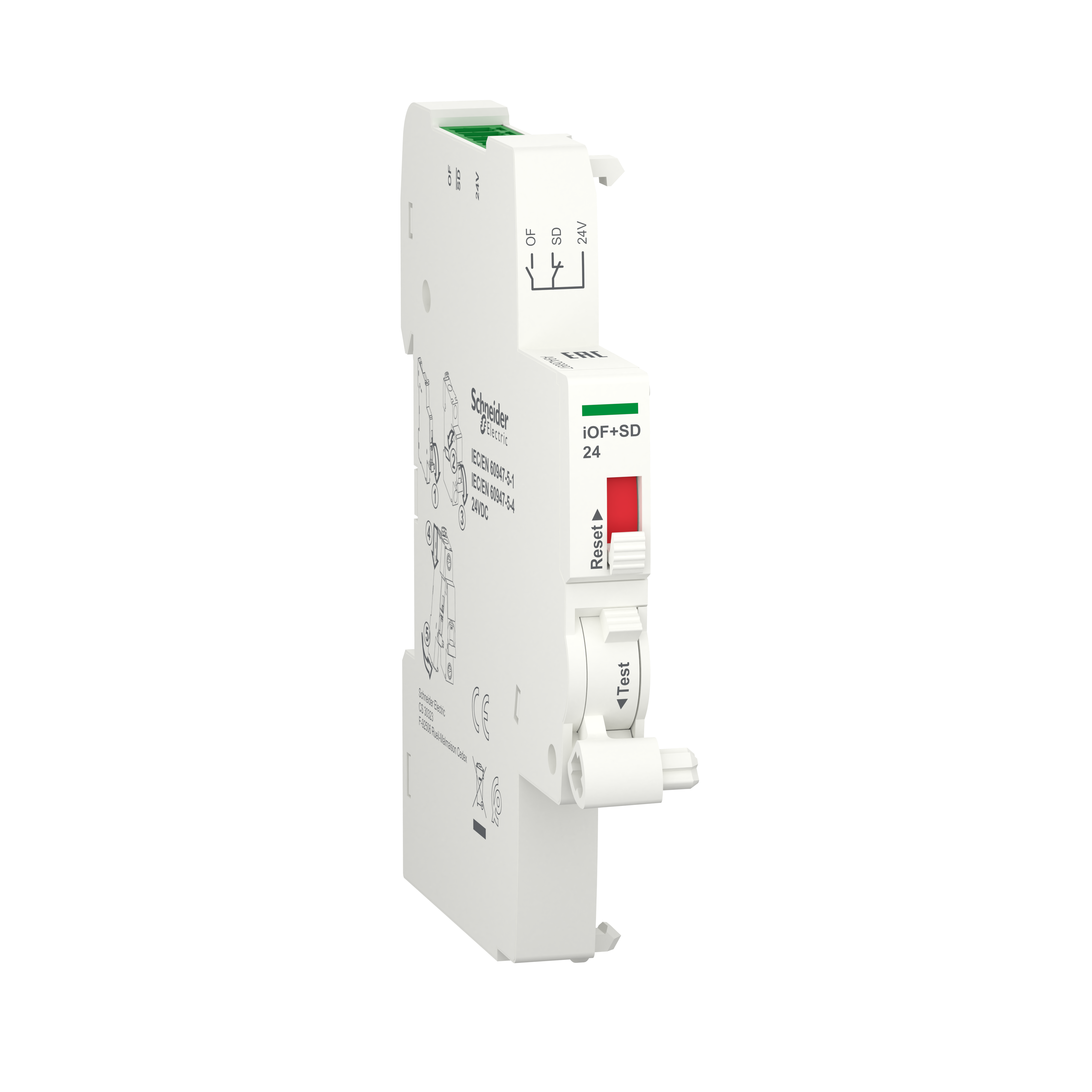

Styk sygnalizacyjny i pomocniczy Acti9 iOF+SD24 z wejściem Ti24
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9A26897 |
| GTIN(EAN) | 3606480461613 |
| Price unit | piece |
| Catalog price | 232,47 zł (189,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
This Acti 9 iOF+SD24 electrical auxiliary is a double open/close and fault indicating contact. The 2 contacts 1 NO + 1NC can report the signalling information of the associated device to the Acti 9 Smartlink.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 7 |
| Gross weight: | 39 g |
| ETIM class: | Auxiliary device for distribution board devices |
| Device fitting: | Earth leakage circuit breaker and miniature circuit breaker (MCB) |
| With auto test for earth leakage function: | no |
| Number of fault-signal switches: | 1 |
| Rated switch current: | 0.1 A |
| Rated voltage: | 24 V |
| Suitable for max. number of poles main contact unit (total): | 4 |
| Width in number of modular spacings: | 0.5 |
| Suitable for max. current main contact unit: | 63 A |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 1 |
| Additional equipment: | Auxiliary switch/fault-signal switch |
| Installed at the factory: | no |
| Voltage type for actuating: | DC |
