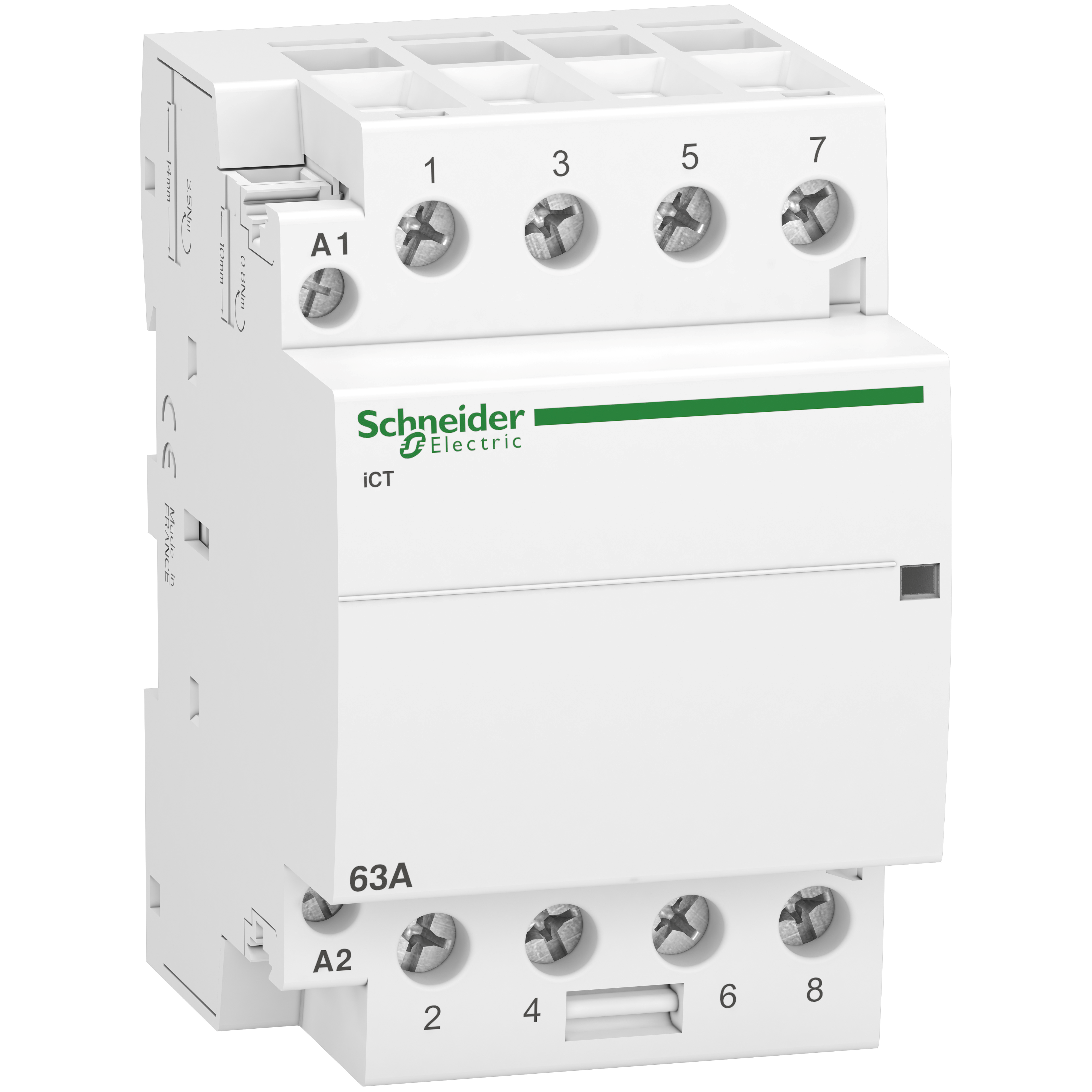

Stycznik modułowy Acti9 iCT50-63-40-230 63A 4NO 50Hz 220/240 VAC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | A9C20864 |
| GTIN(EAN) | 3606480375156 |
| Price unit | piece |
| Catalog price | 765,06 zł (622,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik modułowy serii iCT, o numerze A9C20864, iCT50-63-40-230, napięcie sterowania 220/240 VAC 50Hz, 4 styki zwierne, prąd znamionowy AC7A: 63 A, do sterowania obwodami elektrycznymi. Optyczny wskaźnik stanu styków wyjściowych, możliwość rozbudowy o styki pomocnicze Jest to urządzenie zdalnego sterowania 4P z 4 stykami normalnie otwartymi.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 29 |
| Gross weight: | 359 g |
| ETIM class: | Installation contactor for distribution board |
| Built-in depth: | 43.5 mm |
| Additional equipment possible: | yes |
| Rated operation current: | 63 A |
| Voltage type (excitation voltage): | AC |
| Voltage type (operating voltage): | AC |
| Degree of protection (IP): | IP20 |
| Rated operating voltage: | 400 - 400 V |
| Rated excitation voltage: | 220 - 240 V |
| Max. load fluorescent lamp: | 11550 VA |
| Max. load fluorescent lamp (Duo circuit): | 17700 VA |
| Width in number of modular spacings: | 3 |
| Max. load fluorescent lamp (parallel compensated): | 10500 VA |
| Max. incandescent lamp load: | 22500 W |
| Number of contacts as normally open contact: | 4 |
| Number of contacts as normally closed contact: | 0 |
| Slider for hand switch: | no |
| With day/night function: | no |
| Hum-free: | no |
| Utility category: | 7 |
