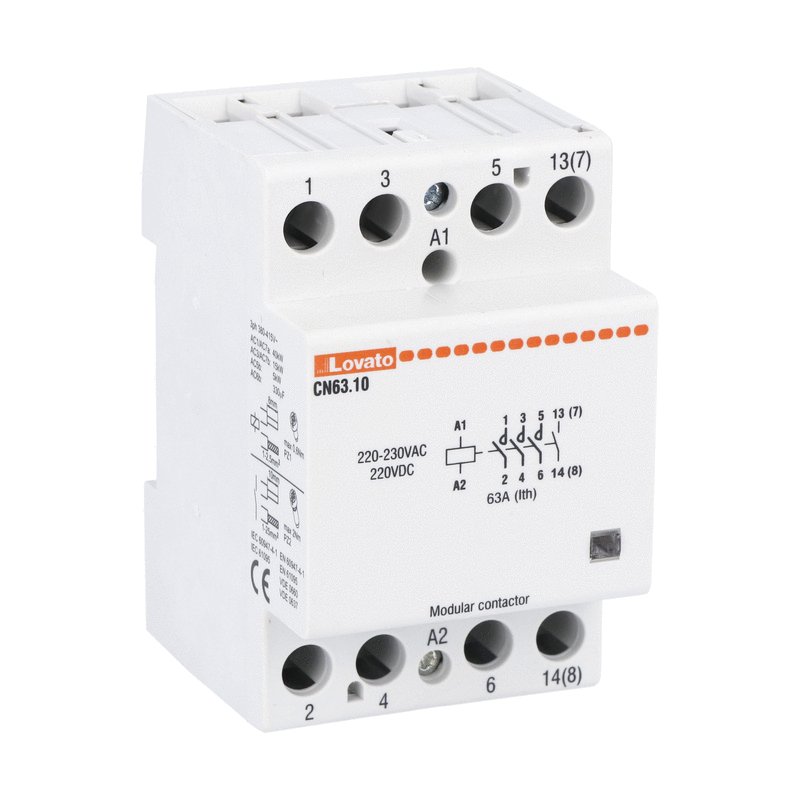

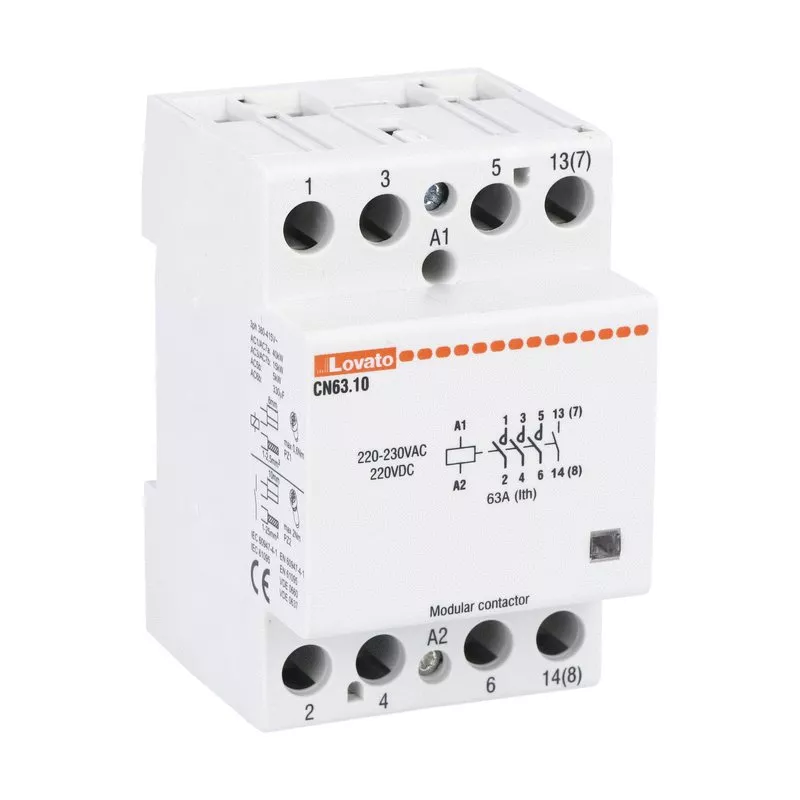

Stycznik modułowy CN63.10, 63A w AC1, cewka 230/220VAC/DC, 4 polowy: 4NO
| Information | Value |
|---|---|
| Supplier | LOVATO Electric Sp. z o.o. |
| Symbol | CN6310220 |
| GTIN(EAN) | 8013975143858 |
| Price unit | piece |
| Catalog price | 749,07 zł (609,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 425 g |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | AC/DC |
| Type of electrical connection of main circuit: | Frame clamp |
| Rated control supply voltage DC: | 220 - 220 V |
| Rated control supply voltage AC 50 Hz: | 220 - 230 V |
| Modular version: | yes |
| Rated operation current Ie at AC-1, 400 V: | 63 A |
| Rated operation current Ie at AC-3, 400 V: | 30 A |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 4 |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 4 |
| Rated control supply voltage AC 60 Hz: | 220 - 230 V |
