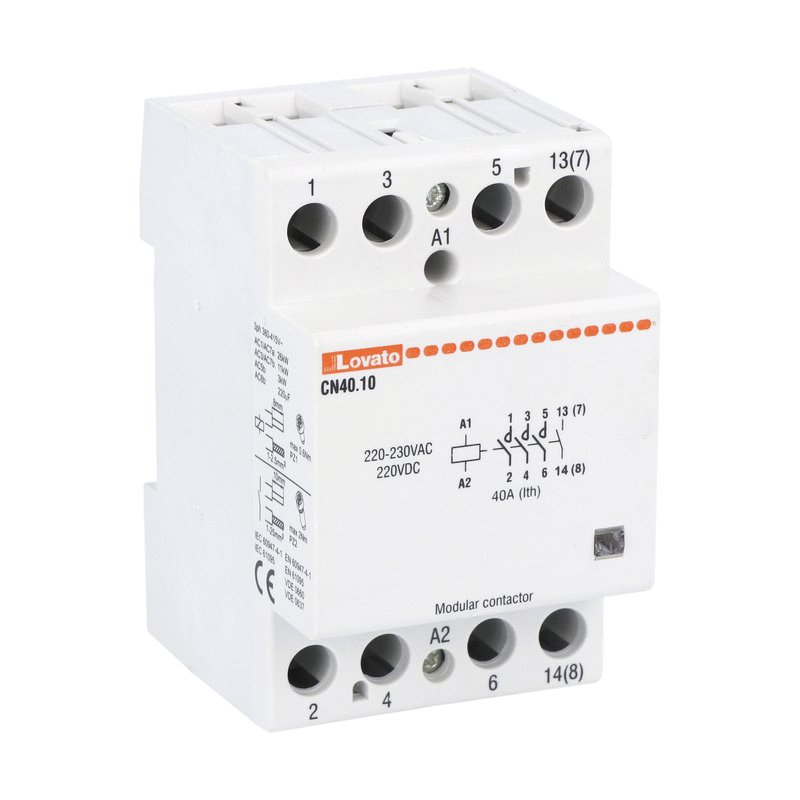

Stycznik modułowy CN40.10, 40A w AC1, cewka 230/220VAC/DC, 4 polowy: 4NO
Information | Value |
---|---|
Supplier | LOVATO Electric Sp. z o.o. |
Symbol | CN4010220 |
GTIN(EAN) | 8013975143810 |
Price unit | piece |
Catalog price | 520,29 zł (423,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 425 g |
ETIM class: | Power contactor, AC switching |
Voltage type for actuating: | AC/DC |
Type of electrical connection of main circuit: | Frame clamp |
Rated control supply voltage DC: | 220 - 220 V |
Rated control supply voltage AC 60 Hz: | 220 - 230 V |
Rated control supply voltage AC 50 Hz: | 220 - 230 V |
Modular version: | yes |
Rated operation current Ie at AC-1, 400 V: | 40 A |
Rated operation current Ie at AC-3, 400 V: | 22 A |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 4 |
Number of normally closed contacts as main contact: | 0 |
Number of normally open contacts as main contact: | 4 |
