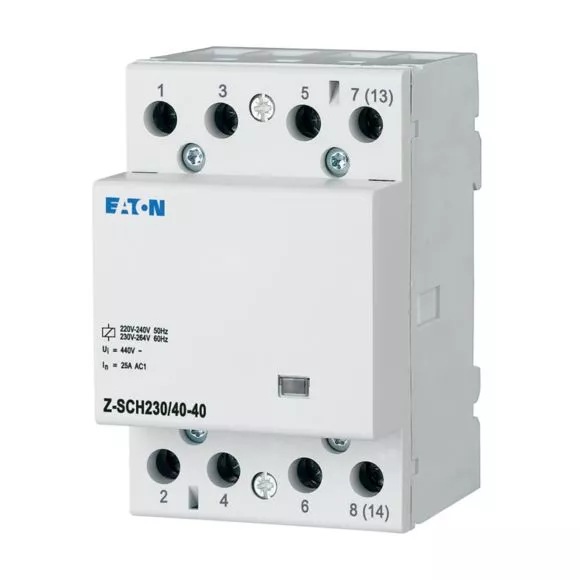

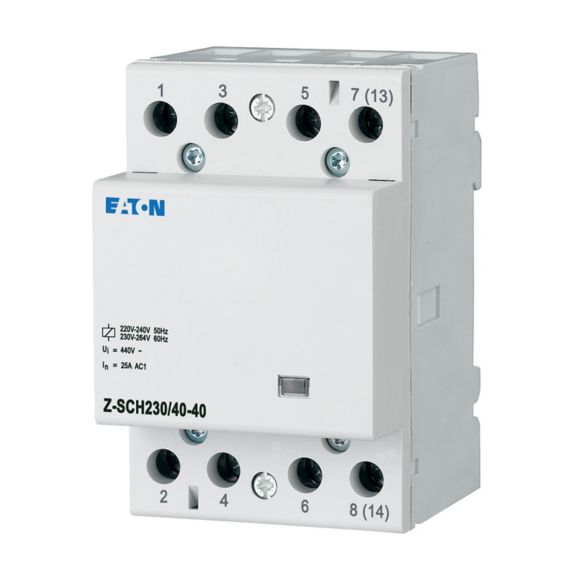

Z-SCH230/40-40 Stycznik instalacyjny
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 248852 |
| GTIN(EAN) | 4015082488529 |
| Price unit | piece |
| Catalog price | 790,28 zł (642,50 zł + 23% VAT) |
| Sale price | from 226,96 zł / szt. (184,52 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik instalacyjny, pomiarowe napięcie sterownicze 230V AC, znamionowy prąd pracy przełącznika AC1 40A, funkcja: 4 zestyków zwiernych, informacje zgodne z IEC 61095, EN 61095, VDE 0660, IEC 60947-4-1, EN 60947-4-1, VDE, wymiary montażowe zatyczki 45mm, szerokość montażowa 3JC (52,5mm), wyłącznik naprądowy
Additional features:
| Information | Value |
|---|---|
| Net weight: | 360 g |
| Country of origin | Austria |
| ETIM class: | Installation contactor for distribution board |
| Rated operating voltage: | 440 - 440 V |
| Rated operation current: | 40 A |
| Rated excitation voltage: | 195.5 - 253 V |
| Voltage type (operating voltage): | AC |
| Voltage type (excitation voltage): | AC |
| Number of contacts as normally open contact: | 4 |
| Number of contacts as normally closed contact: | 0 |
| Max. incandescent lamp load: | 5520 W |
| Max. load fluorescent lamp: | 2610 VA |
| Max. load fluorescent lamp (Duo circuit): | 5336 VA |
| Max. load fluorescent lamp (parallel compensated): | 2088 VA |
| Slider for hand switch: | no |
| Width in number of modular spacings: | 3 |
| Built-in depth: | 60 mm |
| Additional equipment possible: | yes |
| With day/night function: | no |
| Hum-free: | no |
| Degree of protection (IP): | IP40 |
| Utilization category according to EN IEC 60947-4-1: |
