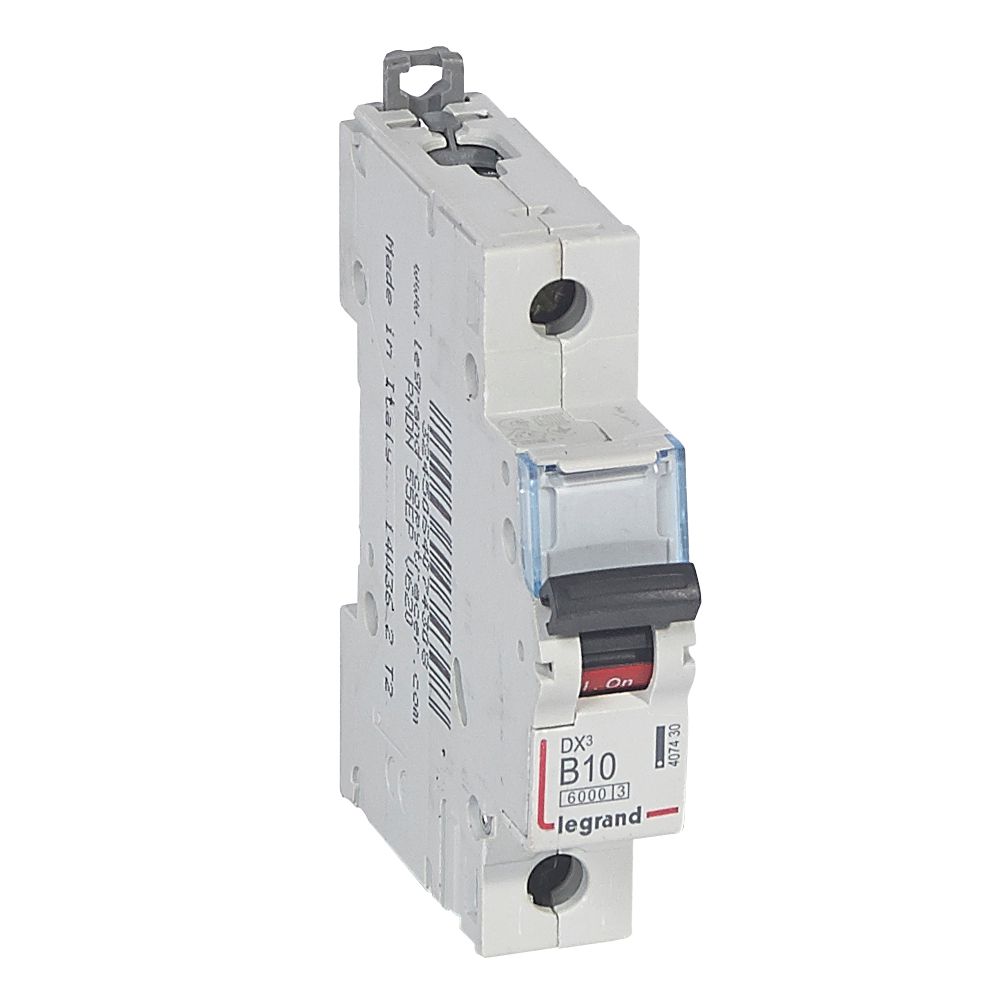

WYŁĄCZNIK NADPRĄDOWY S 301 1P B 10A 6000A SERII DX3, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 407430 |
| GTIN(EAN) | 3245064074308 |
| Price unit | piece |
| Catalog price | 49,08 zł (39,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Włochy |
| ETIM class: | Miniature circuit breaker (MCB) |
| Connectable conductor cross section solid-core: | 1.5 - 35 mm² |
| Explosion-proof: | no |
| Ambient temperature during operating: | -25 - 70 °C |
| Degree of protection (IP): | IP20 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Concurrently switching neutral conductor: | no |
| Voltage type: | AC |
| Additional equipment possible: | yes |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 10 kA |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Number of protected poles: | 1 |
| Frequency: | 50 - 60 Hz |
| Built-in depth: | 44 mm |
| Number of poles (total): | 1 |
| Pollution degree: | 2 |
| Width in number of modular spacings: | 1 |
| Rated insulation voltage Ui: | 500 V |
| Connectable conductor cross section multi-wired: | 1.5 - 25 mm² |
| Rated current: | 10 A |
| Current limiting class: | 3 |
| Release characteristic: | B |
| Flush-mounted installation: | yes |
| Rated voltage: | 230 V |
