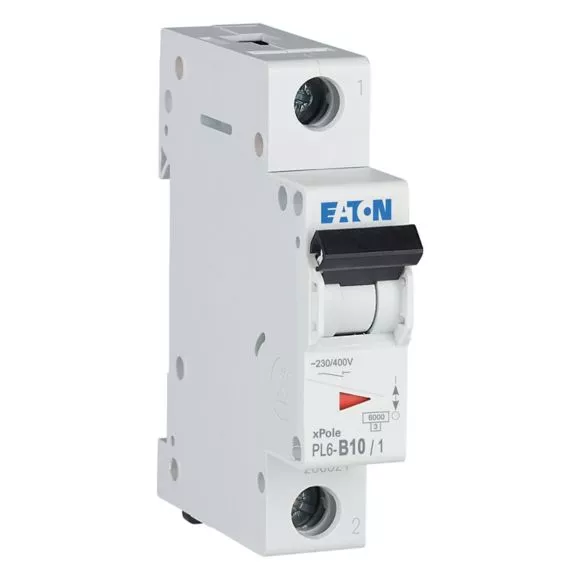

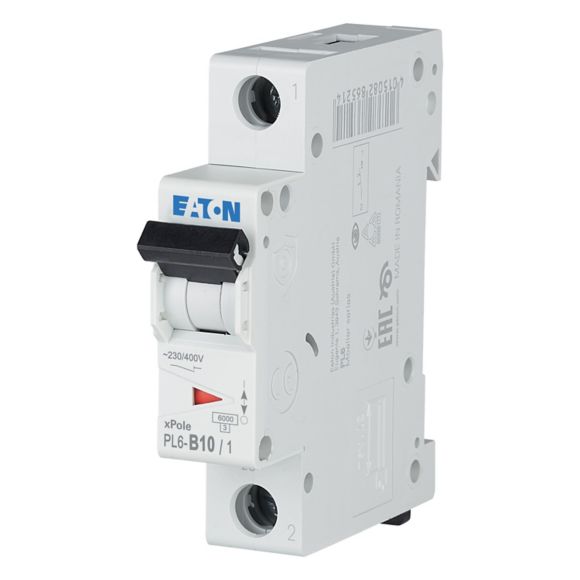

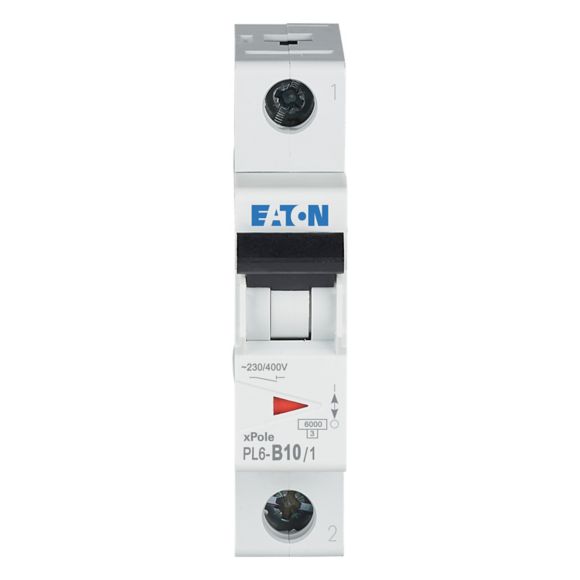

PL6-B10/1 Wyłącznik nadprądowy 6kA, In=10A, char. B, 1-bieg. seria PL6
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 286519 |
GTIN(EAN) | 4015082865191 |
Price unit | piece |
Catalog price | 34,56 zł (28,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 120 g |
ETIM class: | Miniature circuit breaker (MCB) |
Built-in depth: | 70.5 mm |
Release characteristic: | B |
Number of poles (total): | 1 |
Number of protected poles: | 1 |
Rated current: | 10 A |
Rated voltage: | 230 V |
Rated insulation voltage Ui: | 440 V |
Rated impulse withstand voltage Uimp: | 4 kV |
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
Voltage type: | AC |
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 0 kA |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 0 kA |
Frequency: | 50 - 60 Hz |
Current limiting class: | 3 |
Flush-mounted installation: | no |
Concurrently switching neutral conductor: | no |
Over voltage category: | 3 |
Pollution degree: | 2 |
Additional equipment possible: | yes |
Width in number of modular spacings: | 1 |
Degree of protection (IP): | IP20 |
Ambient temperature during operating: | -25 - 75 °C |
Connectable conductor cross section multi-wired: | 1 - 25 mm² |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
Explosion-proof: | no |
