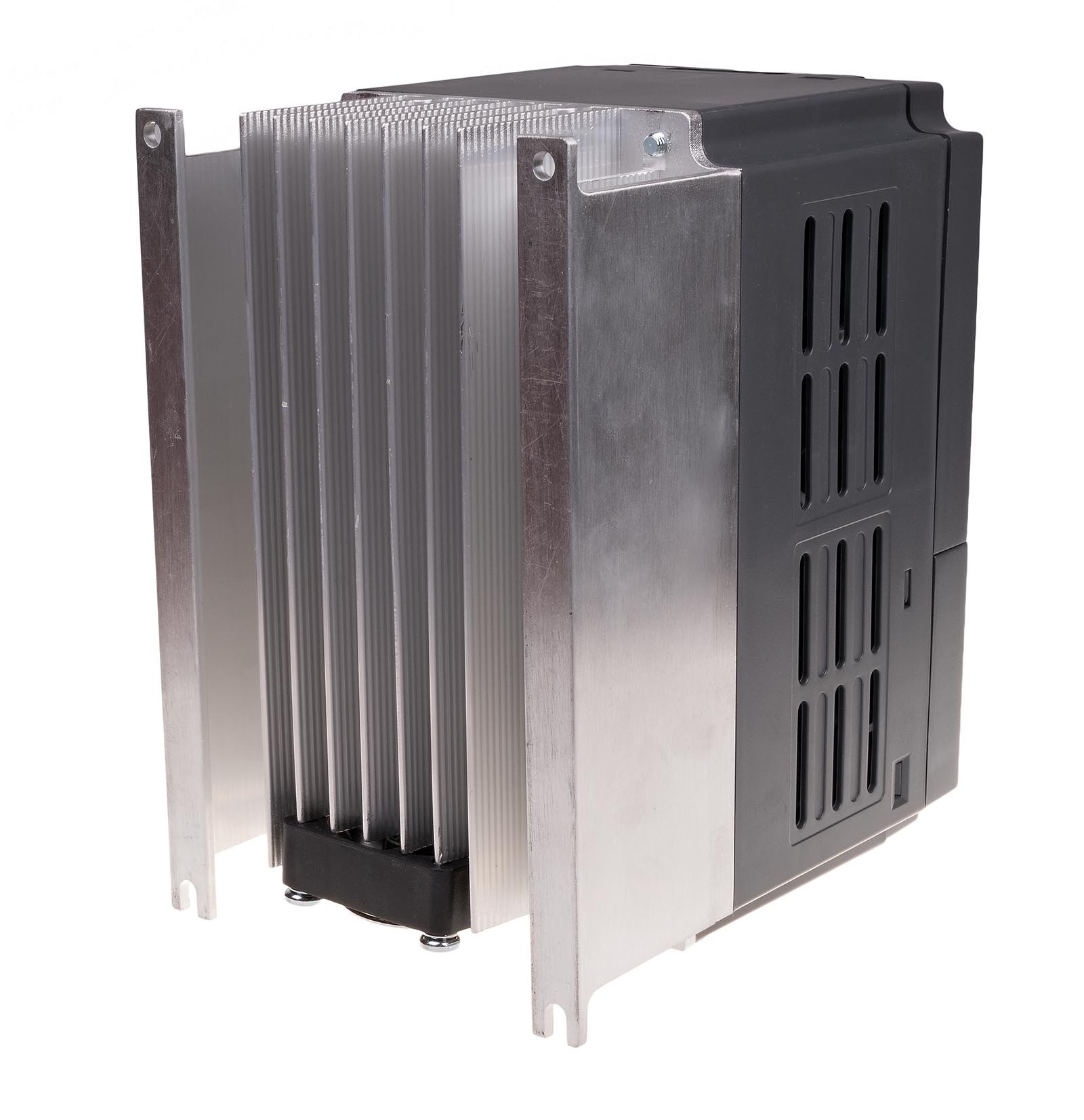

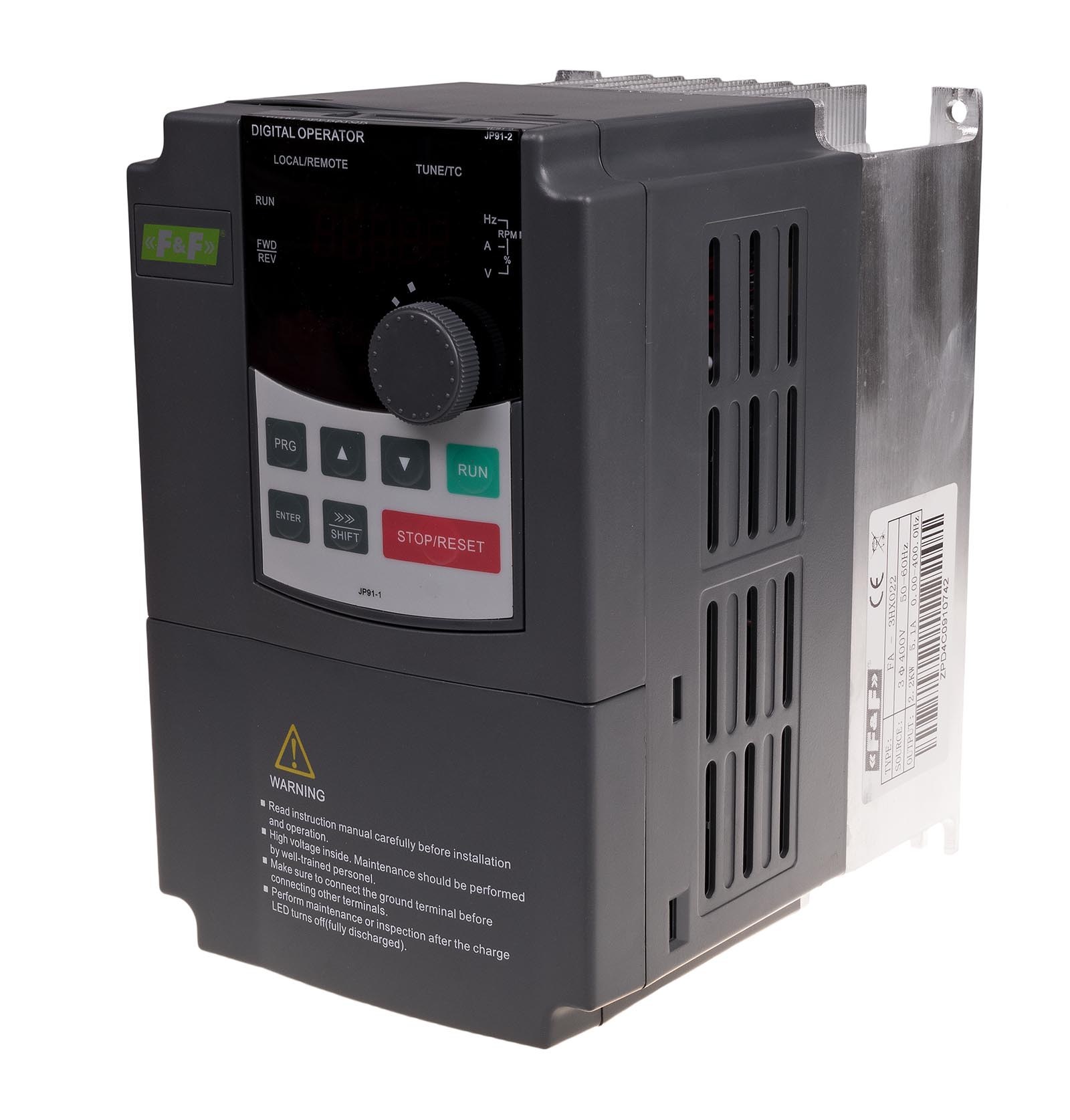

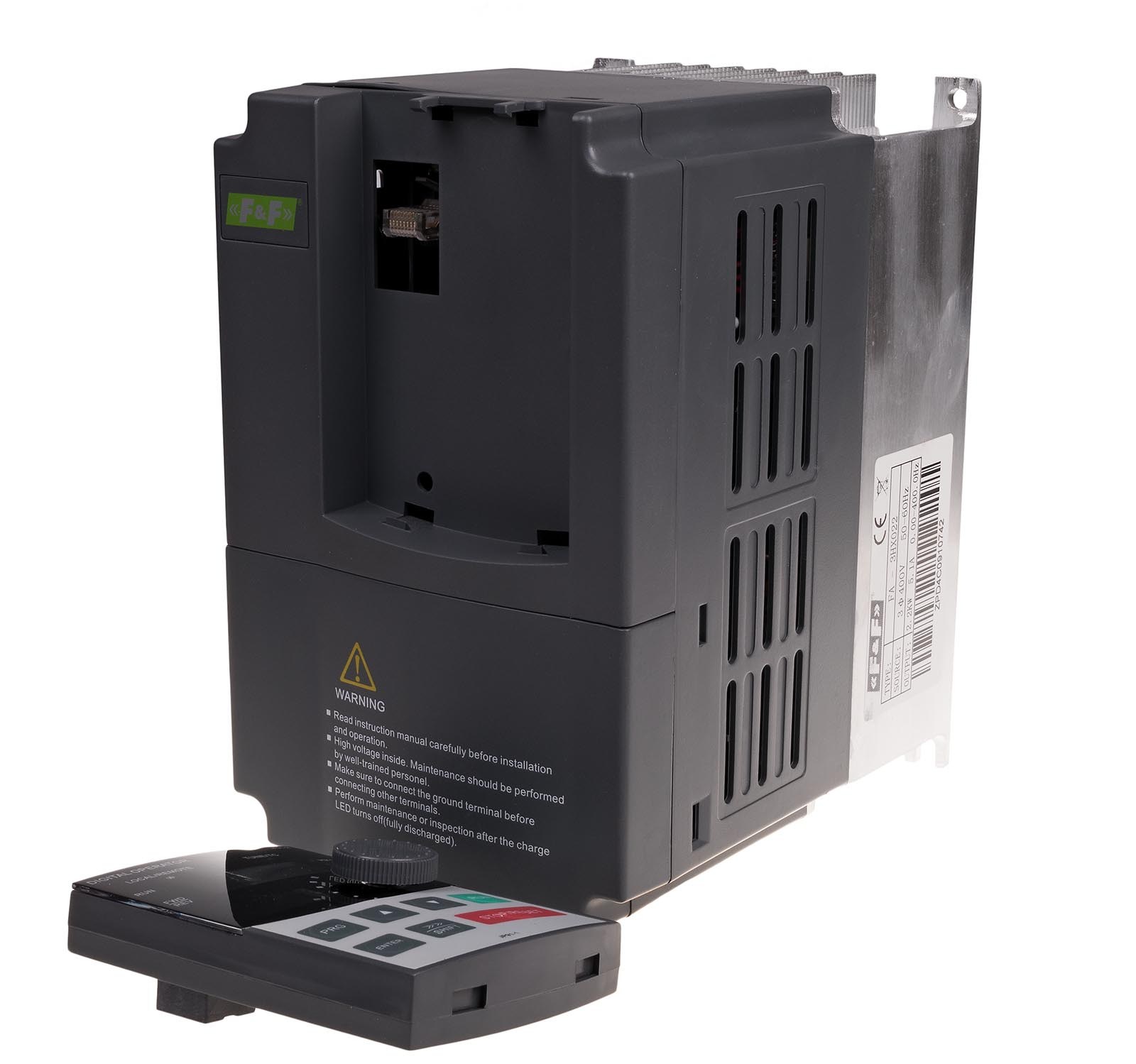

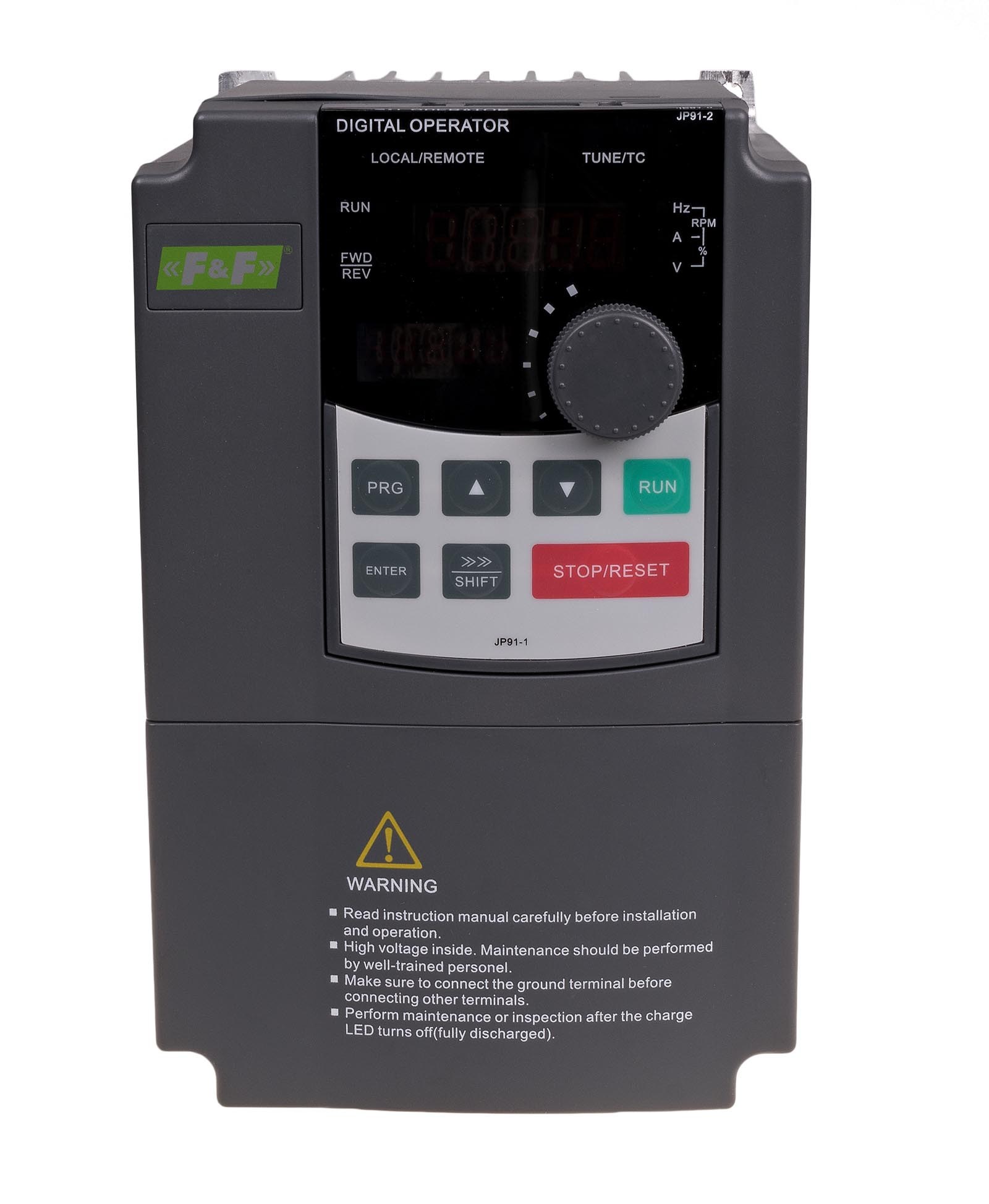

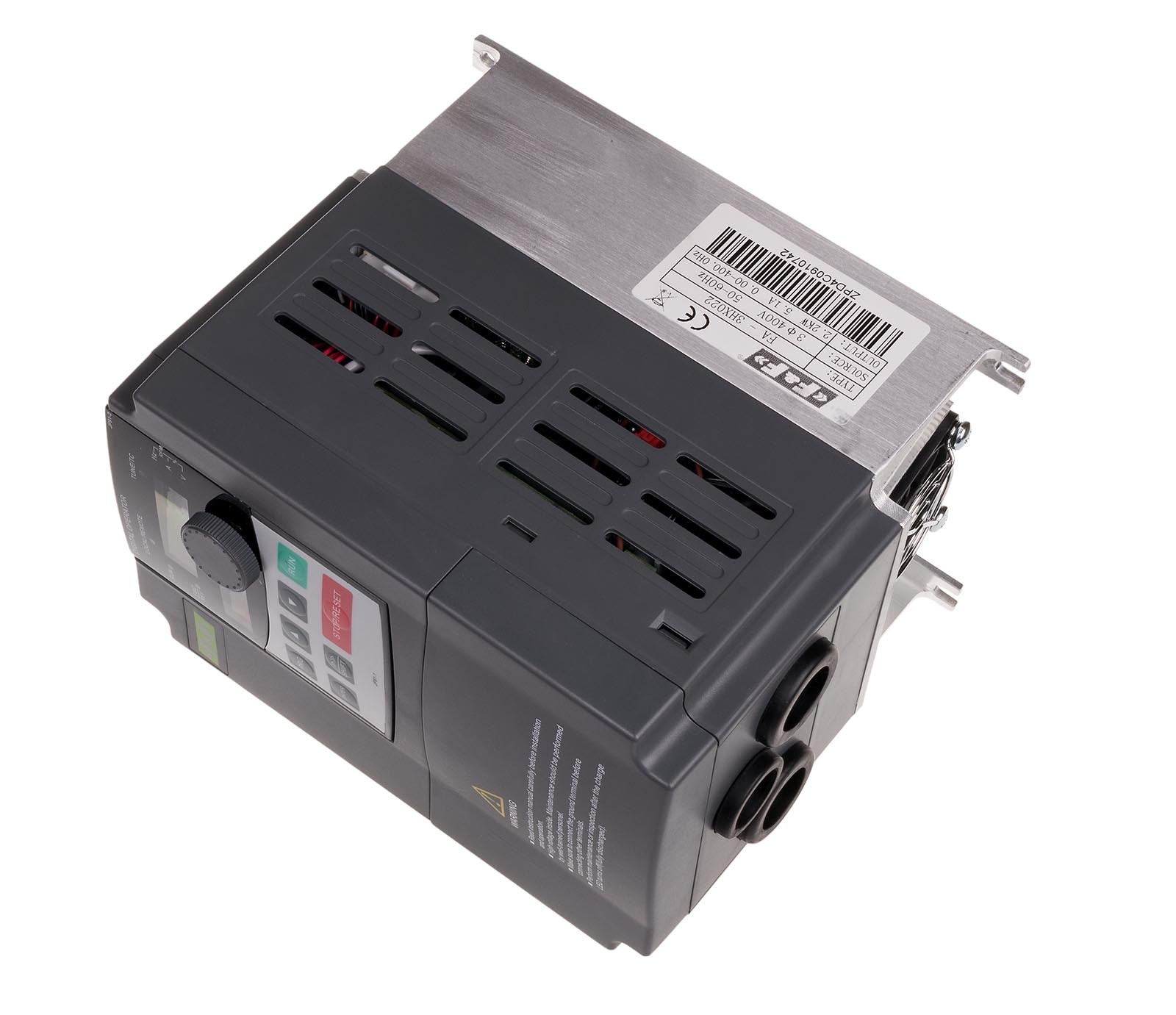

Falownik trójfazowy Uwe=3x400V AC, Iwe=11A, Uwy=3x400V AC, Iwy=8,5A, Pmax=4kW
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | FA |
| Symbol | FA-3HX040 |
| GTIN(EAN) | 5908312596646 |
| Price unit | piece |
| Catalog price | 2 391,12 zł (1 944,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie wejściowe 3 x 400 V Prąd wejściowy 10,5 A Napięcie wyjściowe 3 x 400 V Prąd wyjściowy 9 A Maksymalna moc silnika 4,0 kW Liczba wejść cyfrowych 6 Wejścia - sterowanie uniwersalne Liczba wejść analogowych 2 Wejścia analogowe - napięciowe 2 Wejścia analogowe - prądowe 2 Liczba wyjść analogowych 2 Wyjścia analogowe - prądowe 2 Wyjścia analogowe - napięciowe 2 Liczba wyjść przekaźnikowych 1 Liczba wyjść tranzystorowych 2 Długość L 220 mm Szerokość W 150 mm Wysokość H 182 mm Temperatura pracy -10÷40°C
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 3,3 kg |
| ETIM class: | Frequency converter =< 1 kV |
| Mains voltage: | 400 - 400 V |
| Mains frequency: | 50/60 Hz |
| Number of phases input: | 3 |
| Number of phases output: | 3 |
| Max. output frequency: | 800 Hz |
| Nominal output current I2N: | 9 A |
| Max. output at quadratic load at rated output voltage: | 4 kW |
| Max. output at linear load at rated output voltage: | 4 kW |
| Relative symmetric net frequency tolerance: | 5 % |
| Relative symmetric net voltage tolerance: | 15 % |
| With control element: | yes |
| Application in industrial area permitted: | yes |
| Application in domestic- and commercial area permitted: | yes |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for other bus systems: | no |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 1 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces other: | 0 |
| With optical interface: | no |
| Integrated breaking resistance: | no |
| 4-quadrant operation possible: | no |
| Type of converter: | U converter |
| Degree of protection (IP): | IP20 |
| Height: | 182 mm |
| Width: | 150 mm |
| Depth: | 220 mm |
