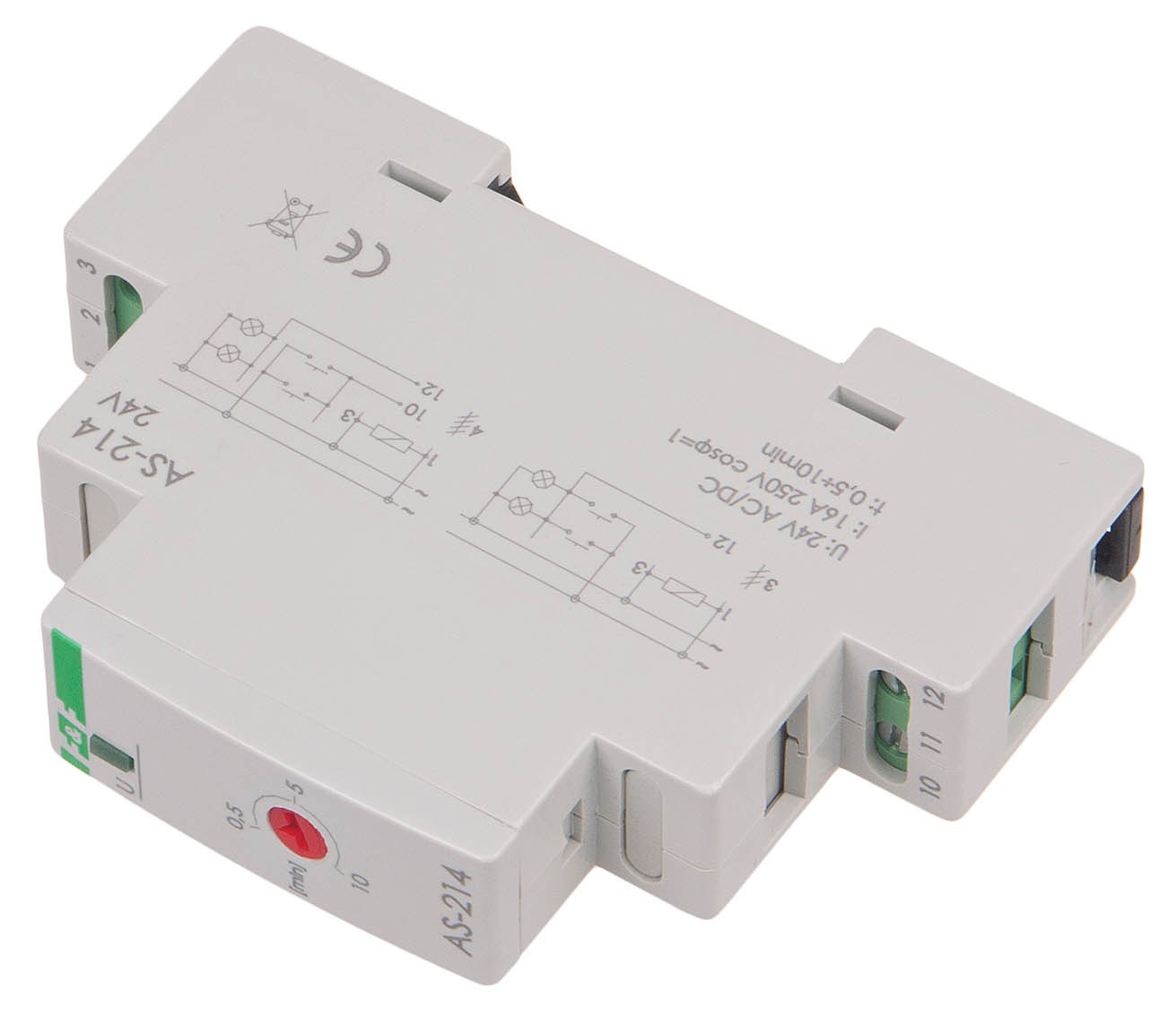

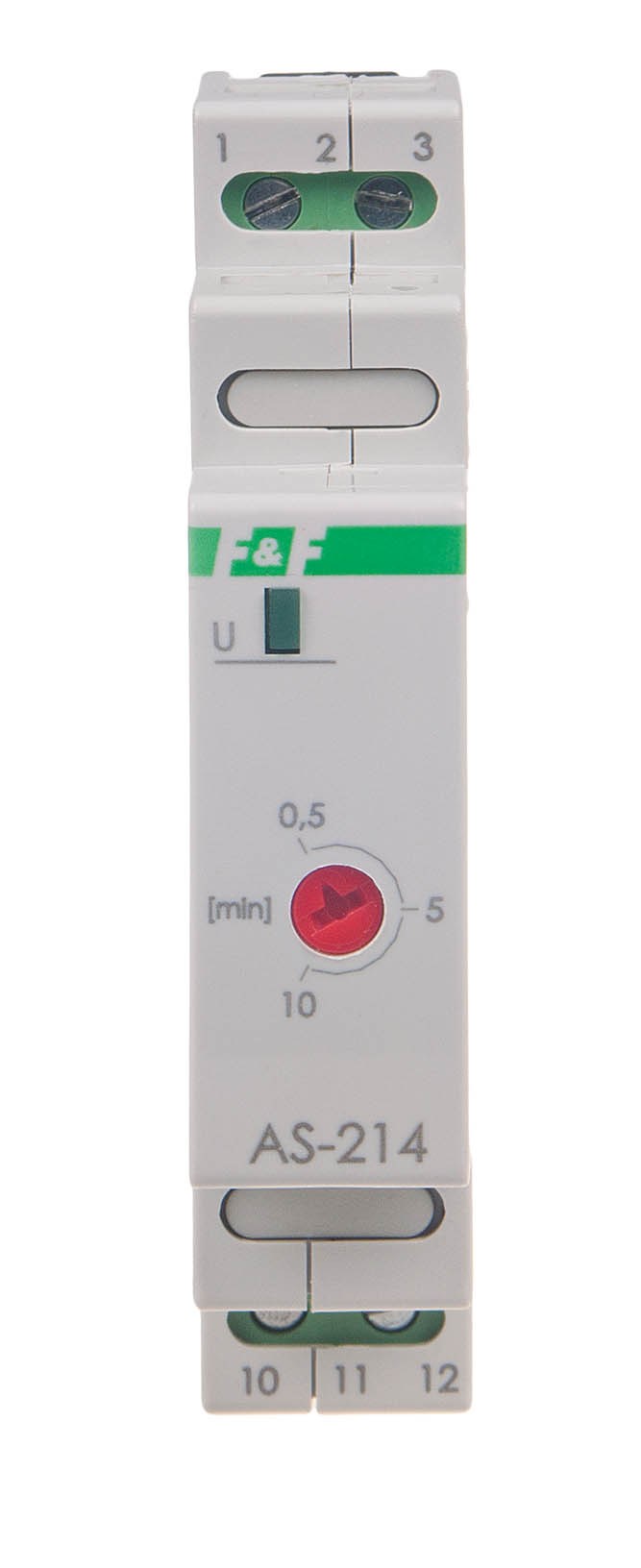

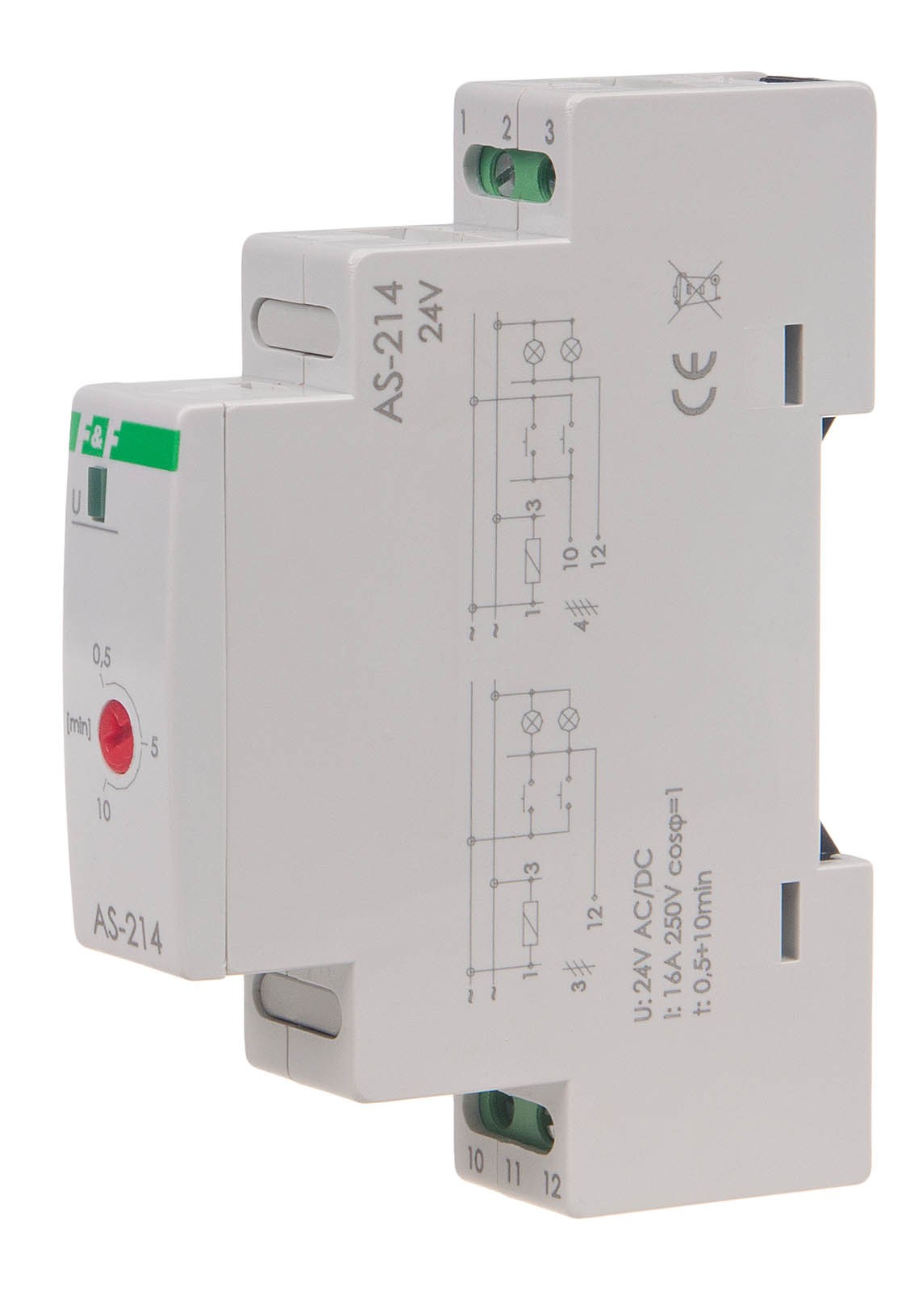

Automat schodowy - montaż na szynie DIN, 24V
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | AS |
| Symbol | AS-214 |
| GTIN(EAN) | 5908312592143 |
| Price unit | piece |
| Catalog price | 97,17 zł (79,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 24 V AC/DC Maksymalny prąd obciążenia AC-1 16 A Element wykonawczy przekaźnik Konfiguracja styków 1 × NO Separacja styku NIE Opóźnienie zadziałania mniej niż 1 s Opóźnienie wyłączenia - regulowane 0,5 ÷ 10 min Przeciwblokada NIE Sygnalizacja wyłączenia NIE Współpraca z przyciskami podświetlanymi NIE Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Pobór mocy 0,56 W Temperatura pracy -25 ÷ 50 °C Wymiary 1 moduł (18 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 60 g |
| ETIM class: | Staircase lighting timer |
| Function: | Electronic |
| Mounting method: | DIN rail |
| Width in number of modular spacings: | 1 |
| Built-in depth: | 20 mm |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Control voltage 1: | 24 - 24 V |
| Type of control voltage 1: | AC/DC |
| Frequency control voltage 1: | 50 - 50 Hz |
| Rated switch current: | 10 A |
| Release-delay: | 0.5 - 10 min |
| Wiring system: | 4 wire configuration |
| Pre-warning of switching-off: | Dimming up to 50 % |
| Repetitive: | Repetitive |
| Supply voltage: | 24 - 24 V |
| Voltage type (supply voltage): | AC/DC |
| Max. incandescent lamp load: | 1500 W |
| Max. load fluorescent lamp: | 350 VA |
| Max. load fluorescent lamp (Duo circuit): | 650 VA |
| Max. load fluorescent lamp (parallel compensated): | 500 VA |
