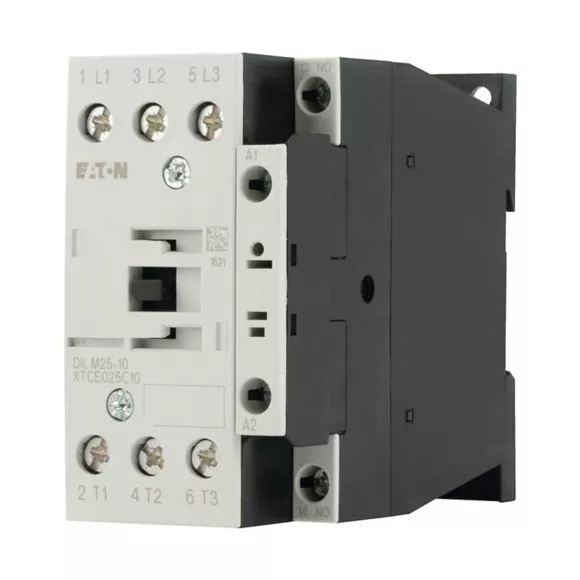

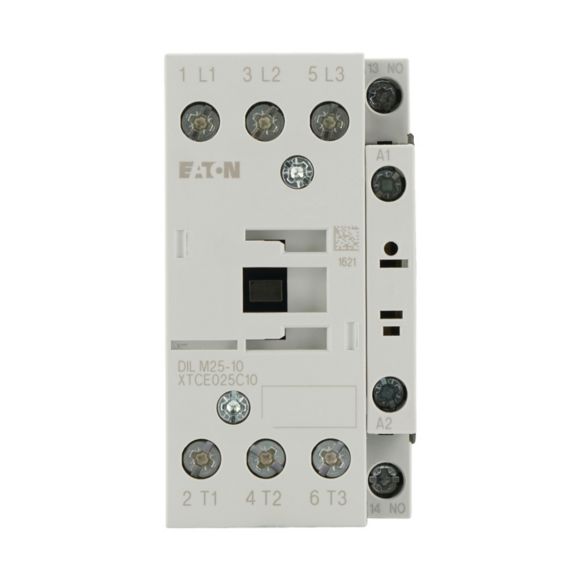

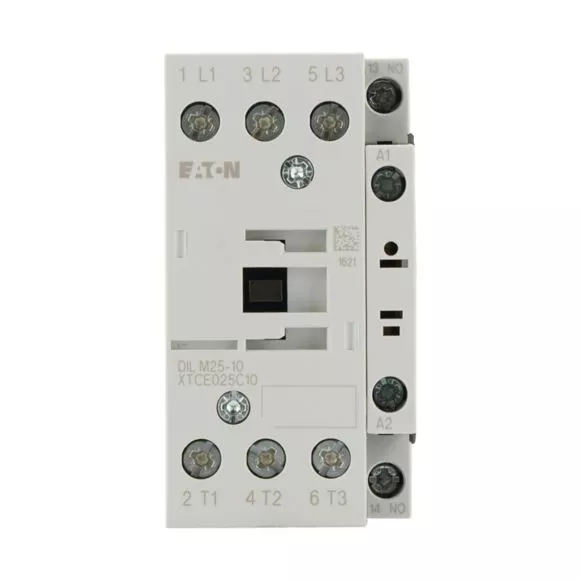

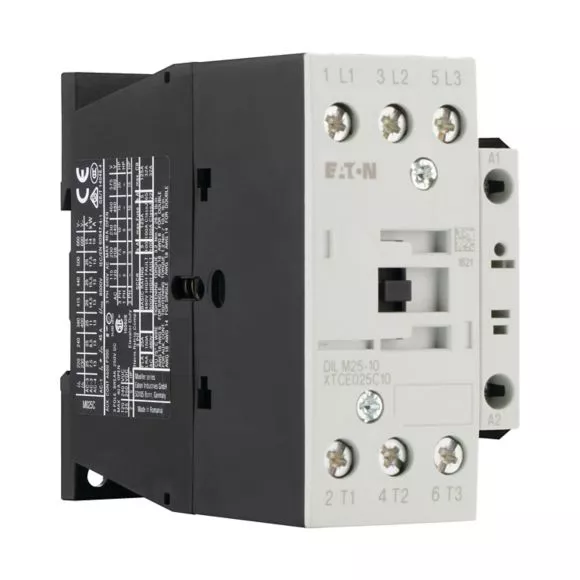

DILM25-10(42V50HZ,48V60HZ) Stycznik mocy I=25A [AC-3] 1Z 0R
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 277128 |
| GTIN(EAN) | 4015082771287 |
| Price unit | piece |
| Catalog price | 502,58 zł (408,60 zł + 23% VAT) |
| Sale price | from 252,84 zł / szt. (205,56 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Contactor, Application: Contactors for Motors, Contactors up to 170 A, 3 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw terminals, Notes: Also suitable for motors with efficiency class IE3., IE3-ready devices are identified by the logo on their packaging., Number of poles: 3 pole, Rated operational current AC-3 380 V 400 V: Ie= 25 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole , 50 - 60 Hz Open at 40 °C: Ith =Ie= 45 A, enclosed: Ith= 36 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 100 A, enclosed: Ith= 90 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 7.5 kW, 380 V 400 V: P= 11 kW, 660 V 690 V: P= 14 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 6 kW, 660 V 690 V: P= 8.5 kW, Can be combined with auxiliary contact: DILM32-XHI.., DILA-XHI(V).., Contacts N/O = Normally open: 1 N/O, Instructions: Contacts to EN 50 012., Voltage AC/DC: AC operation
Additional features:
| Information | Value |
|---|---|
| Net weight: | 428 g |
| Country of origin | Rumunia |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 42 - 42 V |
| Rated control supply voltage AC 60 Hz: | 48 - 48 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 45 A |
| Rated operation current Ie at AC-3, 400 V: | 25 A |
| Rated operation power at AC-3, 400 V: | 11 kW |
| Rated operation current Ie at AC-4, 400 V: | 13 A |
| Rated operation power at AC-4, 400 V: | 6 kW |
| Rated operation power NEMA: | 11 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Operating voltage AC 50 Hz: | 24 - 690 V |
| Operating voltage AC 60 Hz: | 24 - 690 V |
| Width: | 45 mm |
| Height: | 85 mm |
| Depth: | 97 mm |
