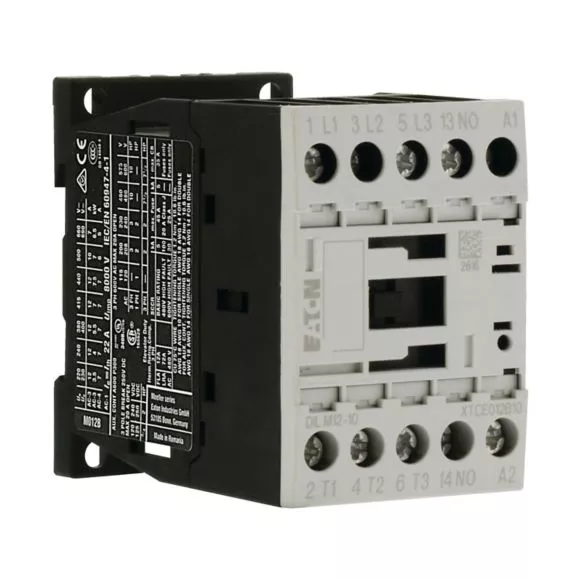

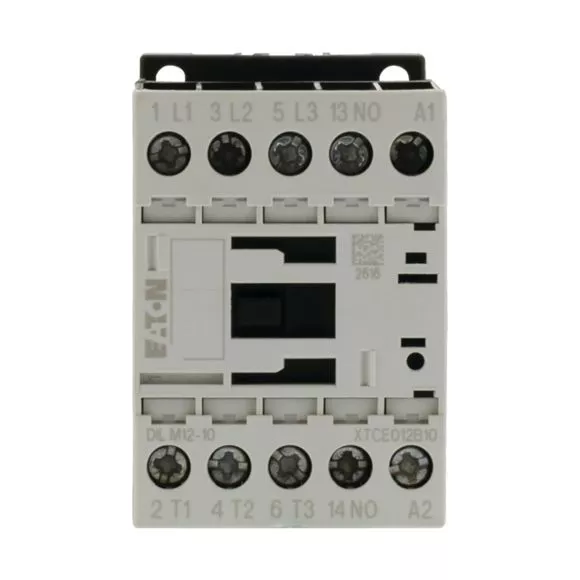

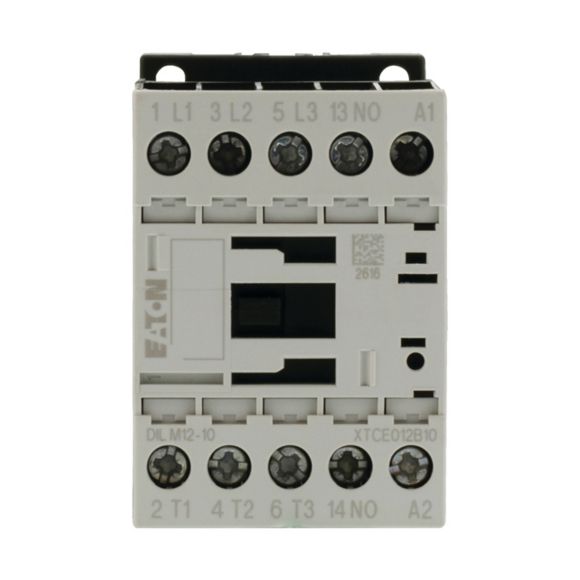

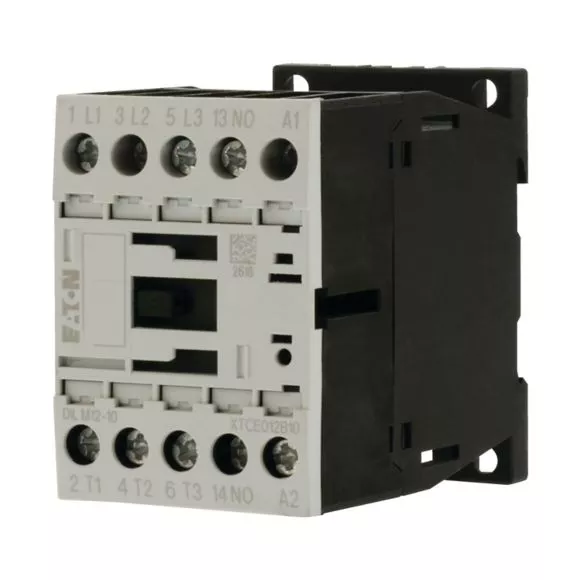

DILM12-10(42V50HZ,48V60HZ) Stycznik mocy I=12A [AC-3], 1Z 0R
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 276826 |
| GTIN(EAN) | 4015082768263 |
| Price unit | piece |
| Catalog price | 278,84 zł (226,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Contactor, Application: Contactors for Motors, Contactors up to 170 A, 3 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw terminals, Notes: Also suitable for motors with efficiency class IE3., IE3-ready devices are identified by the logo on their packaging., Number of poles: 3 pole, Rated operational current AC-3 380 V 400 V: Ie= 12 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole , 50 - 60 Hz Open at 40 °C: Ith =Ie= 22 A, enclosed: Ith= 18 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 50 A, enclosed: Ith= 45 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 5.5 kW, 660 V 690 V: P= 6.5 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 2 kW, 380 V 400 V: P= 3 kW, 660 V 690 V: P= 4.4 kW, Can be combined with auxiliary contact: DILM32-XHI.., DILA-XHI(V).., Contacts N/O = Normally open: 1 N/O, Instructions: Contacts to EN 50 012., Voltage AC/DC: AC operation
Additional features:
| Information | Value |
|---|---|
| Net weight: | 240 g |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 42 - 42 V |
| Rated control supply voltage AC 60 Hz: | 48 - 48 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 22 A |
| Rated operation current Ie at AC-3, 400 V: | 12 A |
| Rated operation power at AC-3, 400 V: | 5.5 kW |
| Rated operation current Ie at AC-4, 400 V: | 7 A |
| Rated operation power at AC-4, 400 V: | 3 kW |
| Rated operation power NEMA: | 7.4 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
