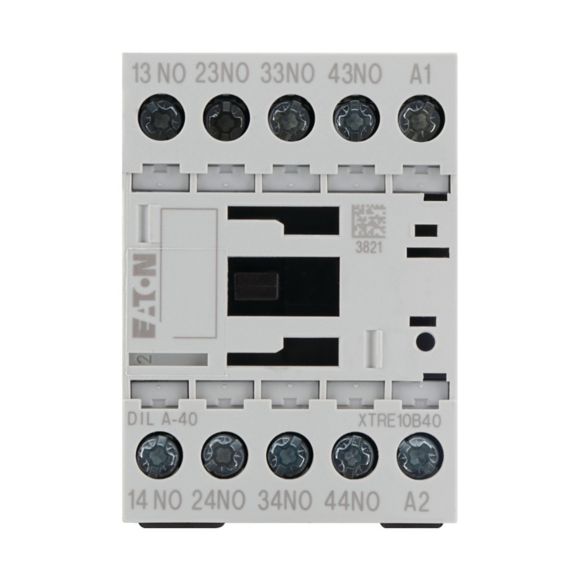

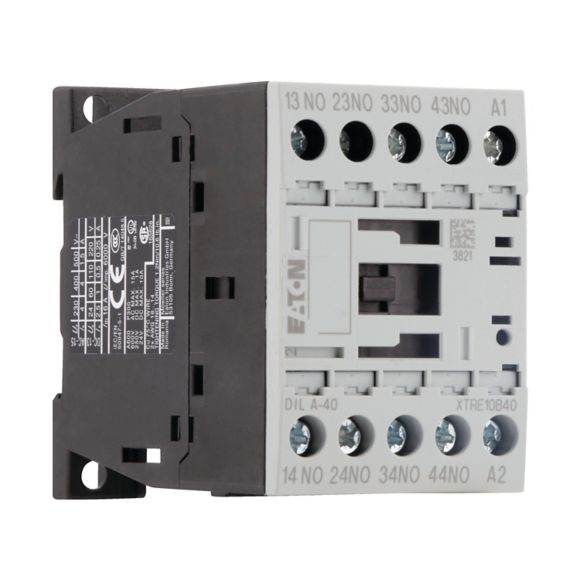

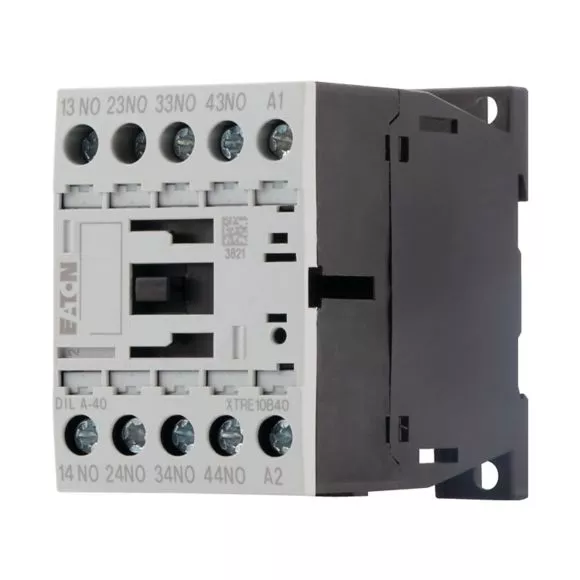

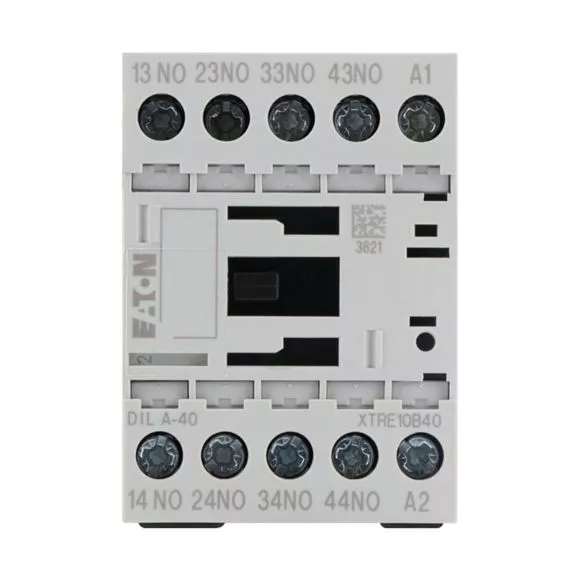

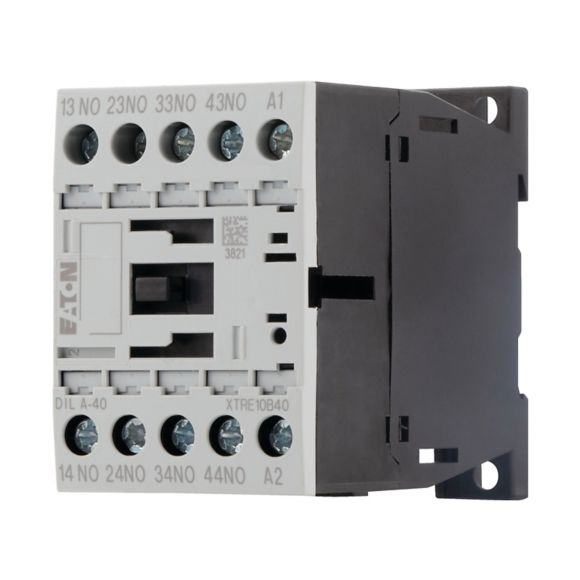

DILA-40(220VDC) STYCZNIK POMOCNICZY 4Z 0R
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 276348 |
| GTIN(EAN) | 4015082763480 |
| Price unit | piece |
| Catalog price | 437,51 zł (355,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik pomocniczy, zgodnie z IEC/EN60947, z połączeniami śrubowymi, można rozszerzać do 8 styków, zestyki z wymuszonym przewodzeniem, mocowanie na śruby i zaciski, ui 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, trwałość 20 mln cyklów łączenia mechanicznego, zintegrowane połączenie ochronne, dostępne akcesoria: moduły łączników pomocniczych
Additional features:
| Information | Value |
|---|---|
| Net weight: | 296 g |
| Country of origin | Rumunia |
| ETIM class: | Contactor relay |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 220 - 220 V |
| Voltage type for actuating: | DC |
| Rated operation current Ie, 400 V: | 4 A |
| Connection type auxiliary circuit: | Screw connection |
| Mounting method: | DIN rail |
| Interface: | no |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 4 |
| Number of auxiliary contacts as normally closed contact, delayed switching: | 0 |
| Number of auxiliary contacts as normally open contact, leading: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| With LED indication: | no |
| Suitable for manual operation: | no |
| Rated operation current: | 16 A |
| Operating voltage AC 50 Hz: | 17 - 500 V |
| Operating voltage AC 60 Hz: | 17 - 500 V |
| Operating voltage DC: | 24 - 220 V |
| Voltage type (operating voltage): | AC/DC |
| Rated switch current: | 16 A |
| Width: | 45 mm |
| Height: | 68 mm |
| Depth: | 75 mm |
