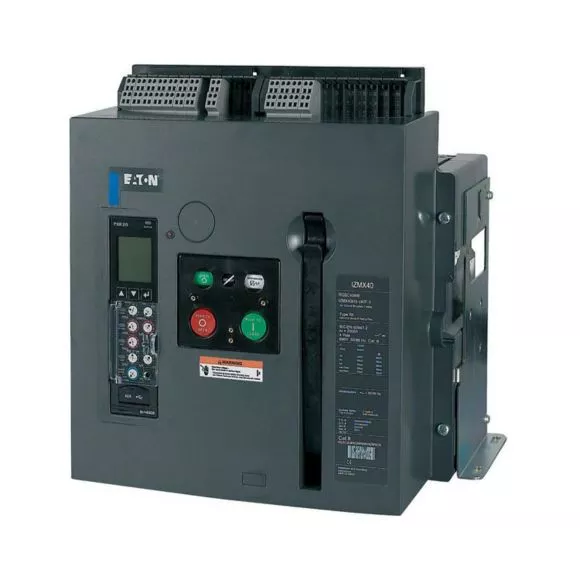

IZMX40B3-V40F-1 Wyłącznik IZMX40B, 3-bieg., 4000 A, stacjonarny, PXRV
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 183709 |
| GTIN(EAN) | 4015081794454 |
| Price unit | piece |
| Catalog price | 158 669,35 zł (128 999,47 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 45 kg |
| Country of origin | Stany Zjednoczone |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 4000 A |
| Rated voltage: | 690 - 690 V |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 66 kA |
| Overload release current setting: | 1600 - 4000 A |
| Adjustment range short-term delayed short-circuit release: | 2400 - 40000 A |
| Adjustment range undelayed short-circuit release: | 8000 - 60000 A |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Rail connection |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting: | no |
| DIN rail (top hat rail) mounting optional: | no |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 2 |
| With switched-off indicator: | yes |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Position of connection for main current circuit: | Back side |
| Type of control element: | Push button |
| Complete device with protection unit: | yes |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Degree of protection (IP): | IP31 |
| Power loss: | 600 W |
