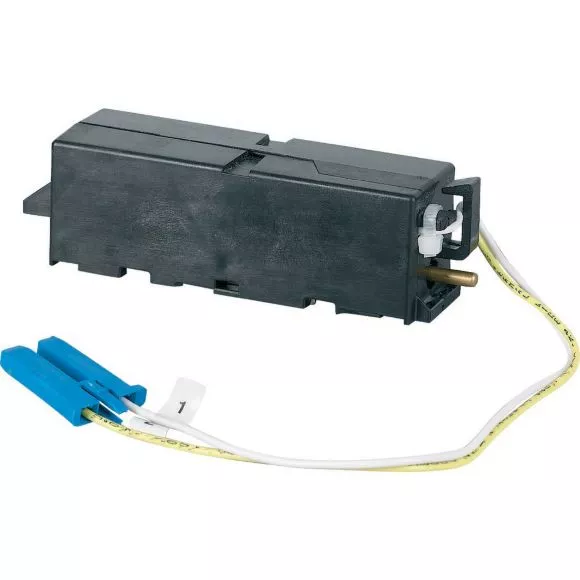

IZMX-ST230AD-1 Wyzwalacz wzrostowy do IZMX16/40 230 VAC/DC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 184274 |
| GTIN(EAN) | 4015081784226 |
| Price unit | piece |
| Catalog price | 2 626,00 zł (2 134,96 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Accessoires, Spanningslosser (voor vermogensschakelaar), Kan worden gecombineerd met een onderspanningslosser of een tweede spanningslosser., Retrofittingset, Maximale schakelfrequentie Activeringen/minuut 3, Beperkt tot 3/min als gevolg van de hoge aantrekstroom gedurende 35 ms., Let op - de schakelfrequentie van de vermogensschakelaar = 60/h, Nominale stuurspanning Us 208 - 240 V AC 50/60 Hz, 208 - 250 V DC V, Werkbereik x US 0,7 - 1,1 Factor, max. houdstroom In 0,034 A, max. aantrekstroom (35 ms) In 3,01 A, max. continu vermogen AC/DC 9 VA/W, max. intrekstroom (35 ms) AC/DC 500 VA/W, Totale schakeltijd vermogensschakelaar bij US=100% 30 ms (IZMX16…, INX16…)
Additional features:
| Information | Value |
|---|---|
| Net weight: | 113 g |
| Country of origin | Czechy |
| ETIM class: | Shunt release (for power circuit breaker) |
| Rated control supply voltage AC 50 Hz: | 208 - 240 V |
| Rated control supply voltage AC 60 Hz: | 208 - 240 V |
| Rated control supply voltage DC: | 220 - 250 V |
| Voltage type for actuating: | AC/DC |
| Initial value of the undelayed short-circuit release - setting range: | 0 A |
| End value adjustment range undelayed short-circuit release: | 0 A |
| Type of electric connection: | Flat plug-in connection |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Suitable for power circuit breaker: | yes |
| Suitable for off-load switch: | yes |
| Suitable for motor safety switch: | no |
| Suitable for overload relay: | yes |
| Power consumption: | 9 W |
