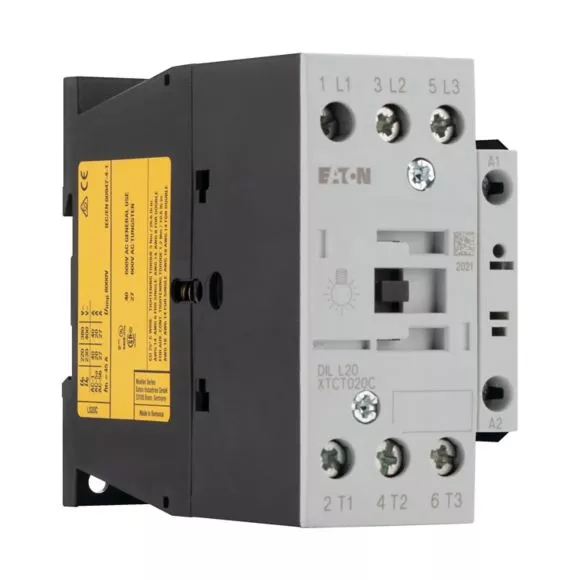

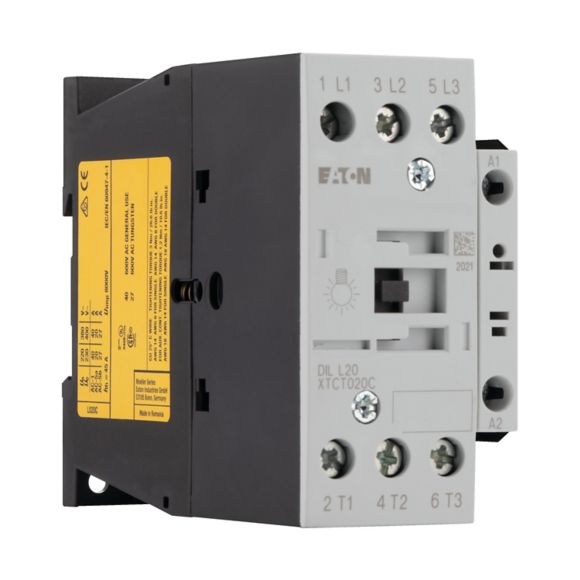

![DILL20(400V50HZ,440V60HZ) Stycznik do lamp, I= 20A, [AC-5a, 400V]](/nowy/public/images/new/placeholder.png)
DILL20(400V50HZ,440V60HZ) Stycznik do lamp, I= 20A, [AC-5a, 400V]
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 104409 |
| GTIN(EAN) | 4015081042265 |
| Price unit | piece |
| Catalog price | 785,48 zł (638,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik obciążeń lampek HQL 20A, podwójny zacisk skrzynkowy do niezawodnego okablowania z zastosowaniem kabli o różnych przekrojach, możliwość rozbudowy do maks 4 zestyków pomocniczych, mocowanie na śruby i zaciski, ui 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, dostępne akcesoria: podłączane moduły łączników pomocniczych i zabudowa boczna, układy ochronne, elektroniczny moduł czasowy, łączni równoległy, pokrywa ochronna IP2X
Additional features:
| Information | Value |
|---|---|
| Net weight: | 426 g |
| Country of origin | Rumunia |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 400 - 400 V |
| Rated control supply voltage AC 60 Hz: | 440 - 440 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 20 A |
| Rated operation current Ie at AC-3, 400 V: | 0 A |
| Rated operation power at AC-3, 400 V: | 0 kW |
| Rated operation current Ie at AC-4, 400 V: | 0 A |
| Rated operation power at AC-4, 400 V: | 0 kW |
| Rated operation power NEMA: | 0 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Operating voltage AC 50 Hz: | 230 - 400 V |
| Operating voltage AC 60 Hz: | 230 - 400 V |
| Width: | 45 mm |
| Height: | 85 mm |
| Depth: | 97 mm |
