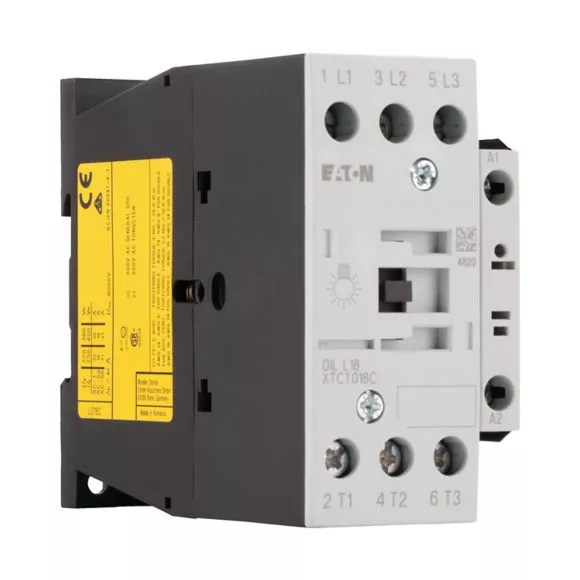

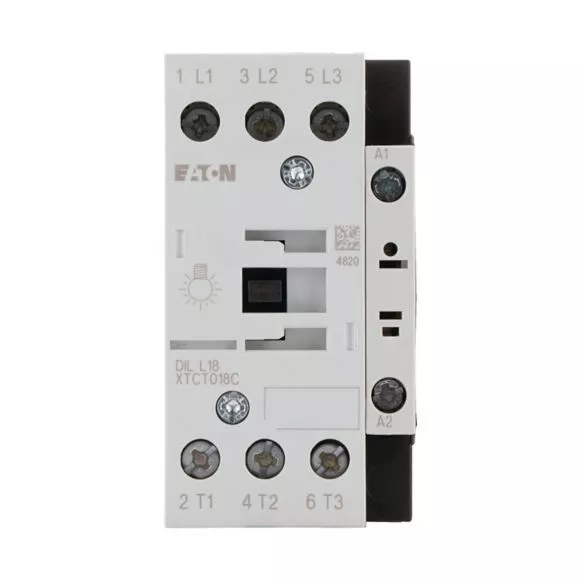

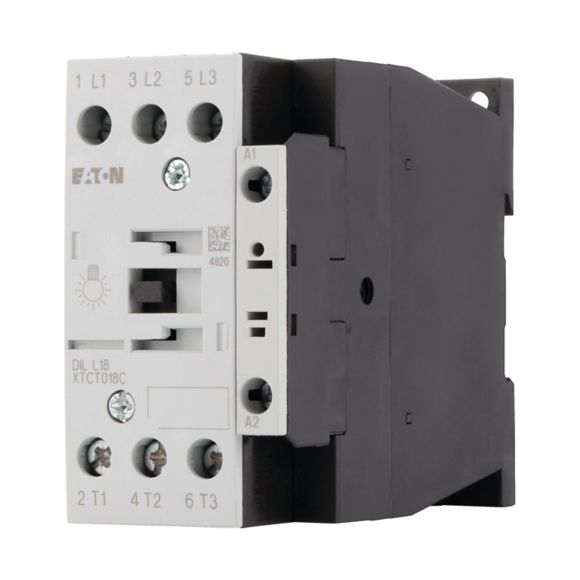

DILL18(230V50HZ,240V60HZ) Stycznik do lamp, I= 18A, [AC-5a, 400V]
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 104405 |
GTIN(EAN) | 4015081042227 |
Price unit | piece |
Catalog price | 635,79 zł (516,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik obciążeń lampek HQL 18A, podwójny zacisk skrzynkowy do niezawodnego okablowania z zastosowaniem kabli o różnych przekrojach, możliwość rozbudowy do maks 4 zestyków pomocniczych, mocowanie na śruby i zaciski, ui 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, dostępne akcesoria: podłączane moduły łączników pomocniczych i zabudowa boczna, układy ochronne, elektroniczny moduł czasowy, łączni równoległy, pokrywa ochronna IP2X
Additional features:
Information | Value |
---|---|
Net weight: | 426 g |
ETIM class: | Power contactor, AC switching |
Modular version: | no |
Rated operation power at AC-3, 400 V: | 0 kW |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Rated operation current Ie at AC-3, 400 V: | 0 A |
Rated operation current Ie at AC-1, 400 V: | 18 A |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated control supply voltage AC 60 Hz: | 240 - 240 V |
Rated control supply voltage DC: | 0 - 0 V |
Type of electrical connection of main circuit: | Screw connection |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-4, 400 V: | 0 A |
Rated operation power at AC-4, 400 V: | 0 kW |
Rated operation power NEMA: | 0 kW |
