![DILL12(230V50HZ,240V60HZ) Stycznik do lamp, I= 12A, [AC-5a, 400V]](/nowy/public/images/new/placeholder.png)

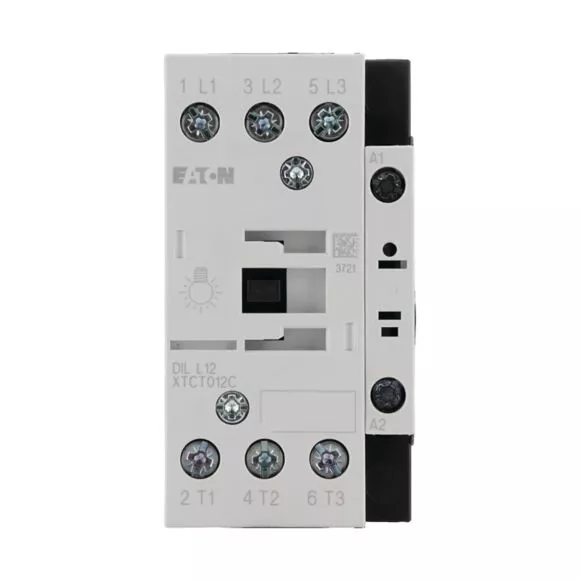

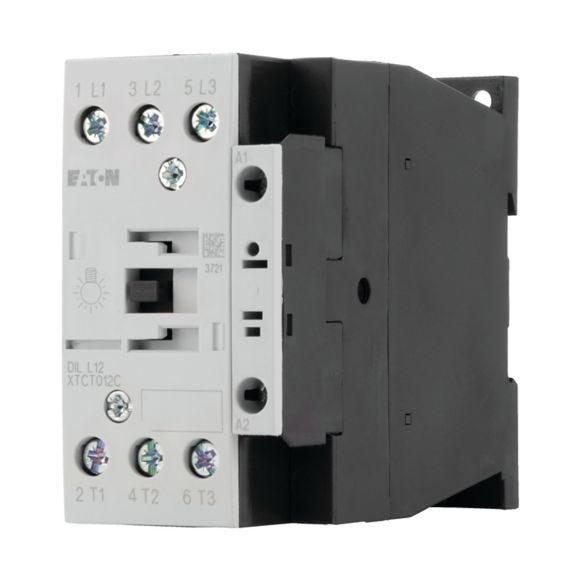

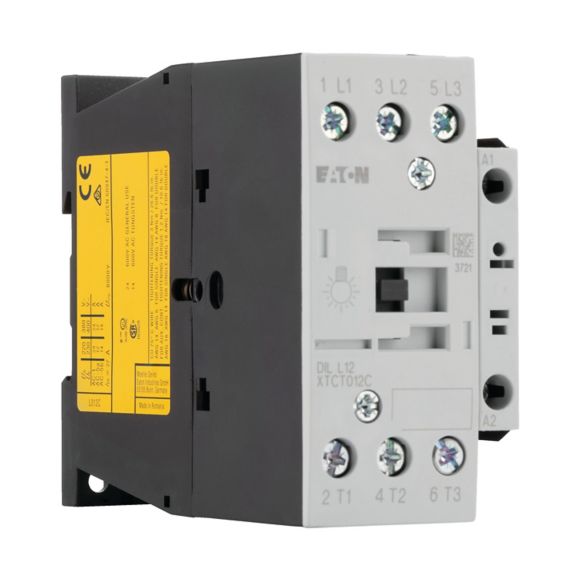

DILL12(230V50HZ,240V60HZ) Stycznik do lamp, I= 12A, [AC-5a, 400V]
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 104402 |
| GTIN(EAN) | 4015081041794 |
| Price unit | piece |
| Catalog price | 367,03 zł (298,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik obciążeń lampek HQL 12A, podwójny zacisk skrzynkowy do niezawodnego okablowania z zastosowaniem kabli o różnych przekrojach, możliwość rozbudowy do maks 4 zestyków pomocniczych, mocowanie na śruby i zaciski, ui 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, dostępne akcesoria: podłączane moduły łączników pomocniczych i zabudowa boczna, układy ochronne, elektroniczny moduł czasowy, łączni równoległy, pokrywa ochronna IP2X
Additional features:
| Information | Value |
|---|---|
| Net weight: | 426 g |
| Country of origin | Rumunia |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 240 - 240 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 12 A |
| Rated operation current Ie at AC-3, 400 V: | 0 A |
| Rated operation power at AC-3, 400 V: | 0 kW |
| Rated operation current Ie at AC-4, 400 V: | 0 A |
| Rated operation power at AC-4, 400 V: | 0 kW |
| Rated operation power NEMA: | 0 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Operating voltage AC 50 Hz: | 230 - 400 V |
| Operating voltage AC 60 Hz: | 230 - 400 V |
| Width: | 45 mm |
| Height: | 85 mm |
| Depth: | 97 mm |
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-12-05 18:34:10 |
| External links: |
