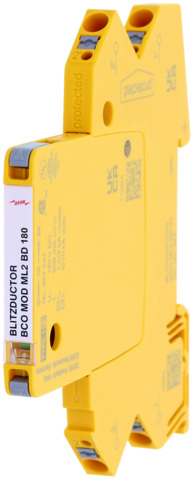

Moduł ochronny BCO ML2 BD 180 do ogranicznika przepięć BLITZDUCTORconnect BCO ML2 BD 180
Information | Value |
---|---|
Supplier | DEHN Polska Sp. z o.o. |
Symbol | 927247 |
GTIN(EAN) | 4013364468665 |
Price unit | piece |
Catalog price | 978,86 zł (795,82 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 34 g |
ETIM class: | Combined arrester for data networks/MCR-technology |
Nominal voltage DC: | 180.0 - 180.0 V |
Max. continuous voltage AC: | 127 V |
Max. continuous voltage DC: | 180 V |
Lightning impulse current (10/350 µs): | 3 kA |
Nominal discharge surge current (8/20): | 10 kA |
Nominal load current: | 0.5 A |
Voltage protection level core/core: | 420 V |
Voltage protection level core/earth: | 800 V |
Limiting frequency: | 10 MHz |
Mounting method: | DIN rail (top hat rail) 35 mm |
Connection 1: | Push-in terminal |
Pro-active thermo-control: | yes |
With remote signalling contact: | no |
Explosion-tested version: | yes |
Signal disconnection: | yes |
Number of conductors (without earthing): | 2 |
Earthing via: | DIN rail (top hat rail) |
Assembly width: | 6 mm |
Degree of protection (IP): | IP20 |
