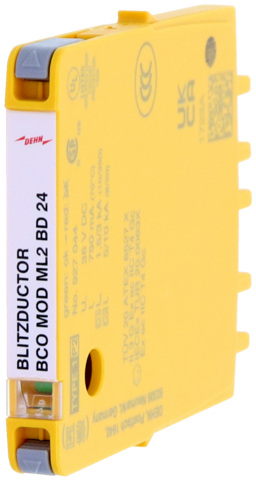

Moduł ochronny BCO MOD ML2 BD 24 do ogranicznika BLITZDUCTORconnect Modular BCO MOD ML2 BD 24
| Information | Value |
|---|---|
| Supplier | DEHN Polska Sp. z o.o. |
| Symbol | 927044 |
| GTIN(EAN) | 4013364410169 |
| Price unit | piece |
| Catalog price | 609,16 zł (495,25 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 39 g |
| Country of origin | Niemcy |
| ETIM class: | Combined arrester for data networks/MCR-technology |
| Nominal voltage DC: | 24.0 - 24.0 V |
| Max. continuous voltage AC: | 25.4 V |
| Max. continuous voltage DC: | 36 V |
| Lightning impulse current (10/350 µs): | 3 kA |
| Nominal discharge surge current (8/20): | 10 kA |
| Nominal load current: | 0.75 A |
| Voltage protection level core/core: | 57 V |
| Voltage protection level core/earth: | 600 V |
| Limiting frequency: | 5.8 MHz |
| Mounting method: | On basic element |
| Pro-active thermo-control: | yes |
| With remote signalling contact: | no |
| Explosion-tested version: | no |
| Signal disconnection: | no |
| Number of conductors (without earthing): | 2 |
| Earthing via: | Other |

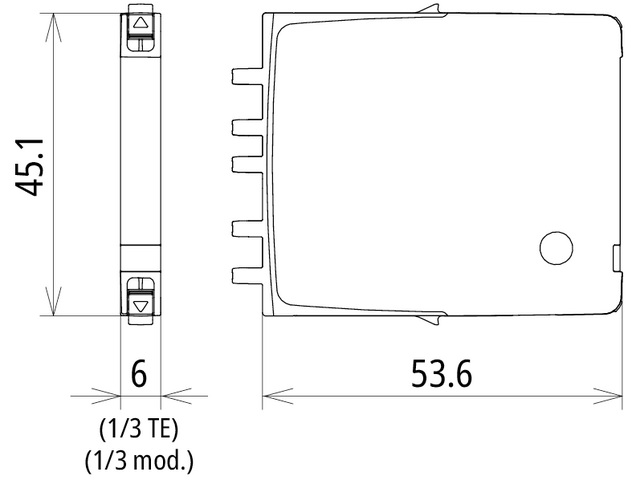

| Assembly width: | 6 mm |
| Degree of protection (IP): | IP20 |
