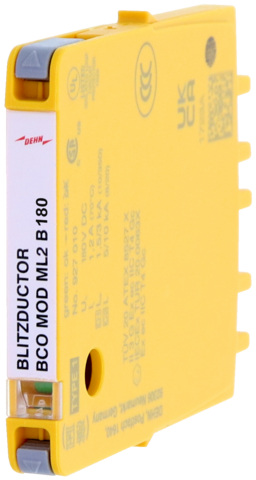

Moduł ochronny BCO MOD ML2 B 180 do ogranicznika BLITZDUCTORconnect Modular BCO MOD ML2 B 180
Information | Value |
---|---|
Supplier | DEHN Polska Sp. z o.o. |
Symbol | 927010 |
GTIN(EAN) | 4013364410114 |
Price unit | piece |
Catalog price | 416,71 zł (338,79 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 39 g |
ETIM class: | Lightning current arrester for data networks/MCR-technology |
Nominal voltage DC: | 180 V |
Max. continuous voltage AC: | 127 V |
Max. continuous voltage DC: | 180 V |
Lightning impulse current (10/350 µs): | 3 kA |
Nominal discharge surge current (8/20): | 10 kA |
Nominal load current: | 1.2 A |
Voltage protection level core/core: | 1100 V |
Voltage protection level core/earth: | 800 V |
Limiting frequency: | 300 MHz |
Signalling at the device: | Optical |
Mounting method: | On basic element |
Pro-active thermo-control: | yes |
With remote signalling contact: | no |
Explosion-tested version: | no |
