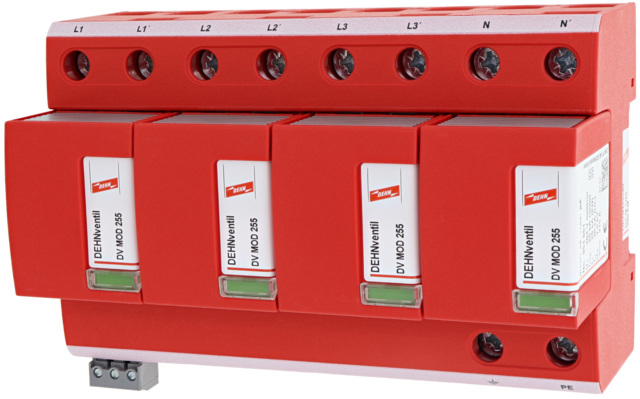

Ogranicznik przepięć DEHNventil M TNS 255 FM DV M TNS 255 FM
Information | Value |
---|---|
Supplier | DEHN Polska Sp. z o.o. |
Symbol | 951405 |
GTIN(EAN) | 4013364108165 |
Price unit | piece |
Catalog price | 5 219,21 zł (4 243,26 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 1,399 kg |
ETIM class: | Combined arrester for power supply systems |
System configuration DC: | no |
System configuration IT: | no |
System configuration TN: | no |
System configuration TN-C: | no |
System configuration TN-C-S: | no |
System configuration TN-S: | yes |
System configuration TT: | no |
System configuration other: | no |
Number of poles: | 4 |
Lightning impulse current (10/350 µs): | 100 kA |
Max. continuous voltage AC: | 264 V |
Nominal voltage AC: | 230 V |
Voltage protection level L-PE: | 1.5 kV |
Voltage protection level N-PE: | 1.5 kV |
Follow current extinguishing capability: | 50 kA |
Specific energy (W/R): | 2500 kJ/Ω |
Max. overcurrent protection device, parallel connection (fuse): | 315 A |
Max. overcurrent protection device, series connection (fuse): | 125 A |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 8 modular spacing |
Max. conductor cross section solid (solid, stranded): | 50 mm² |
Max. conductor cross section flexible (fine-strand): | 35 mm² |
Remote signalling: | yes |
Signalling at the device: | Optical |
Test class: | Type 1 + 2 |
Integrated backup fuse: | no |
Energy-coordinated protection effect with regard to the terminal equipment: | yes |
Voltage switching spark gap technology: | yes |
Overcurrent protected voltage tapping: | no |
Degree of protection (IP): | IP20 |
