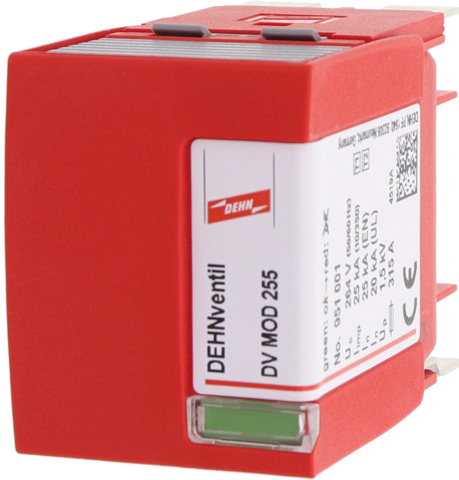

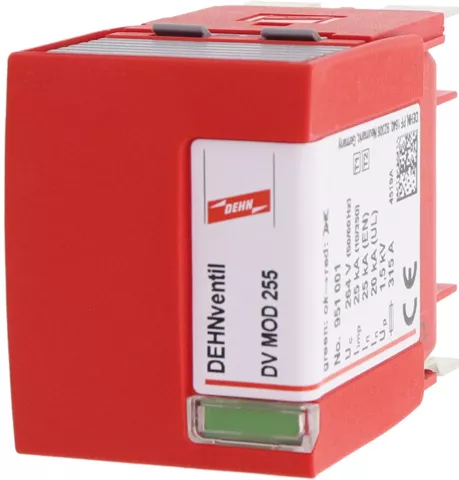

Moduł ochronny DV MOD 255 do ogranicznika DEHNventil M DV MOD 255
Information | Value |
---|---|
Supplier | DEHN Polska Sp. z o.o. |
Symbol | 951001 |
GTIN(EAN) | 4013364108066 |
Price unit | piece |
Catalog price | 2 271,21 zł (1 846,51 zł + 23% VAT) |
Sale price | from 1 032,43 zł (839,37 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 204 g |
ETIM class: | Combined arrester for power supply systems |
Mounting method: | On basic element |
Lightning impulse current (10/350 µs): | 25 kA |
Number of poles: | 1 |
Voltage protection level: | 1.5 kV |
Remote signalling: | no |
Follow current extinguishing capability: | 50 kA |
Max. continuous voltage AC: | 264 V |
Nominal voltage AC: | 230 V |
Test class: | Type 1 + 2 |
Signalling at the device: | Optical |
Integrated backup fuse: | no |
Specific energy (W/R): | 156.25 kJ/Ω |
Energy-coordinated protection effect with regard to the terminal equipment: | yes |
System configuration DC: | no |
System configuration IT: | yes |
System configuration TN: | yes |
System configuration TN-C: | yes |
System configuration TN-S: | yes |
System configuration TT: | yes |
System configuration other: | yes |
System configuration TN-C-S: | yes |
Voltage switching spark gap technology: | no |
Overcurrent protected voltage tapping: | no |
