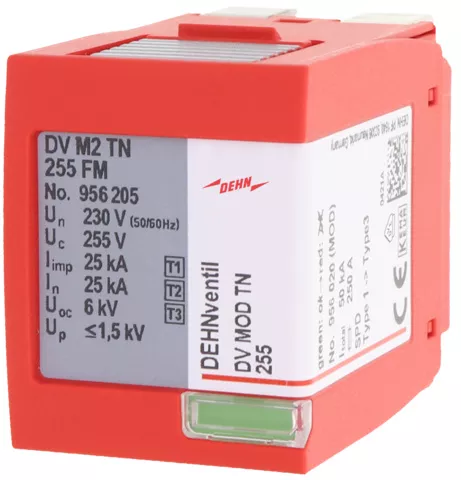

Moduł ochronny DV MOD TN 255 do ogranicznika DEHNventil M2 DV MOD TN 255
Information | Value |
---|---|
Supplier | DEHN Polska Sp. z o.o. |
Symbol | 956020 |
GTIN(EAN) | 4013364510616 |
Price unit | piece |
Catalog price | 3 866,71 zł (3 143,67 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 148 g |
Country of origin | Niemcy |
ETIM class: | Combined arrester for power supply systems |
System configuration DC: | no |
System configuration IT: | no |
System configuration TN: | yes |
System configuration TN-C: | no |
System configuration TN-C-S: | no |
System configuration TN-S: | no |
System configuration TT: | no |
System configuration other: | no |
Number of poles: | 2 |
Lightning impulse current (10/350 µs): | 25 kA |
Max. continuous voltage AC: | 255 V |
Nominal voltage AC: | 230 V |
Voltage protection level: | 1.5 kV |
Follow current extinguishing capability: | 50 kA |
Mounting method: | On basic element |
Remote signalling: | no |
Signalling at the device: | Optical |
Test class: | Type 1 + 2 |
Integrated backup fuse: | no |
Energy-coordinated protection effect with regard to the terminal equipment: | yes |
Voltage switching spark gap technology: | no |
Overcurrent protected voltage tapping: | no |
