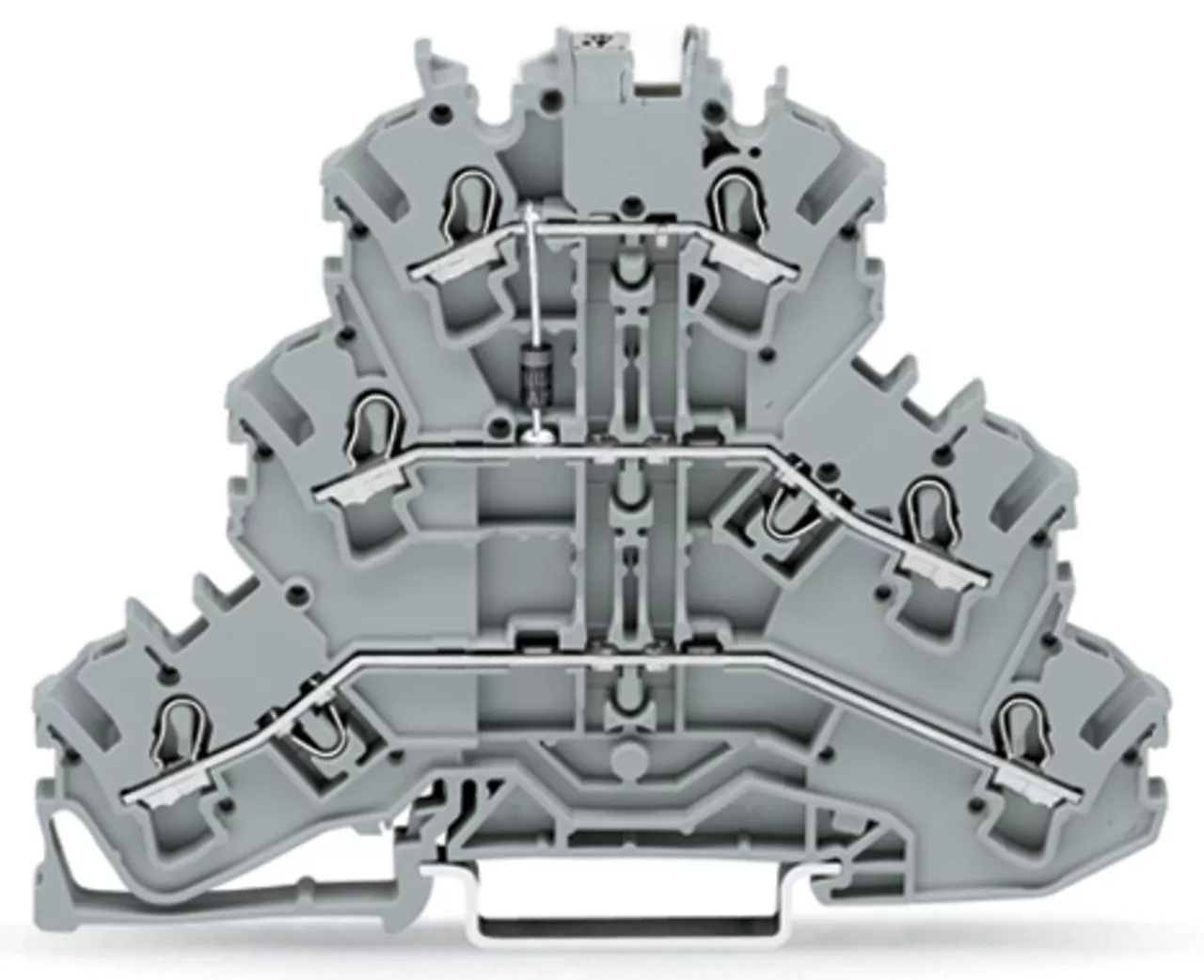

Złączka do zabudowy elementów 3-piętrowe, szara 2002-3211/1000-411
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2002-3211/1000-411 |
| GTIN(EAN) | 4045454375690 |
| Price unit | piece |
| Catalog price | 87,37 zł (71,03 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

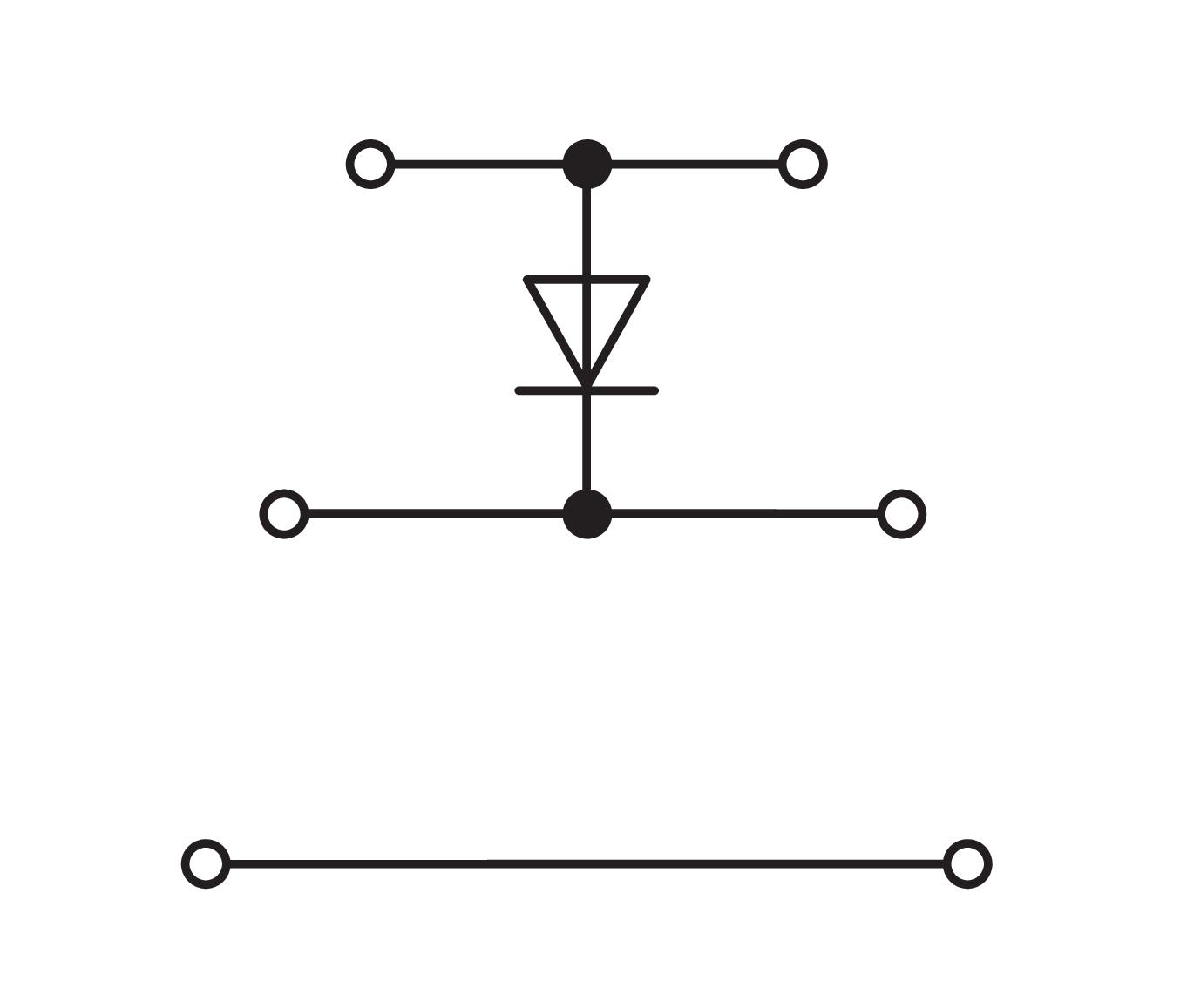

złączka do zabudowy elementów; 3-piętr.; z diodą 1N4007; anoda u góry; na szynę TS 35 x 15 i 35 x 7,5; 2,5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 17,58 g |
| ETIM class: | Component terminal block |
| Operating temperature: | 105 - 105 °C |
| Explosion-tested version 'Ex e': | no |
| Rated current In: | 0.5 A |
| Height: | 93.3 mm |
| Number of levels: | 3 |
| Closing plate required: | yes |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Number of clamp positions per level: | 2 |
| Internally connected stages: | yes |
| Colour: | Grey |
| Width: | 5.2 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated voltage: | 250 V |
| Depth: | 69.5 mm |
| Type of component: | Diode |
