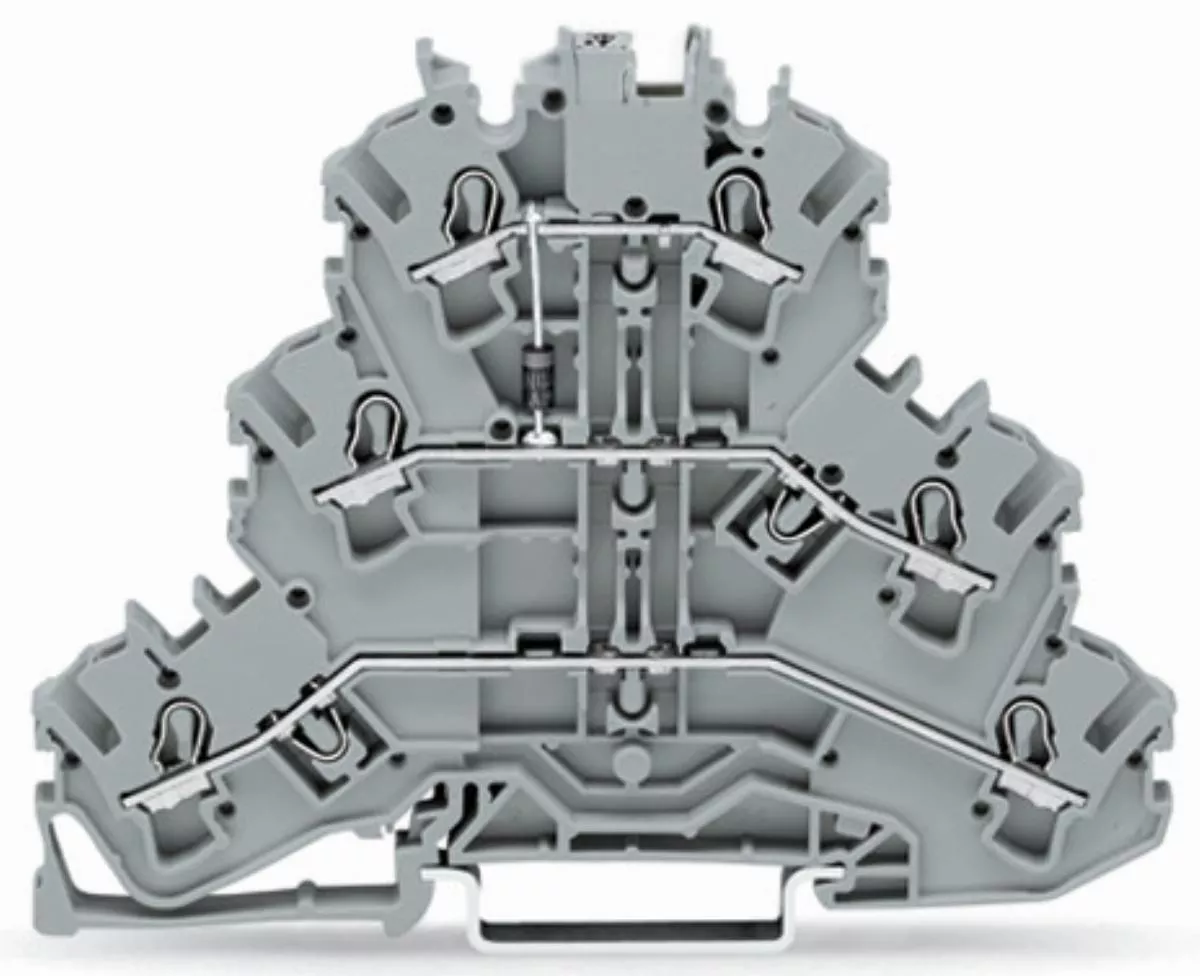

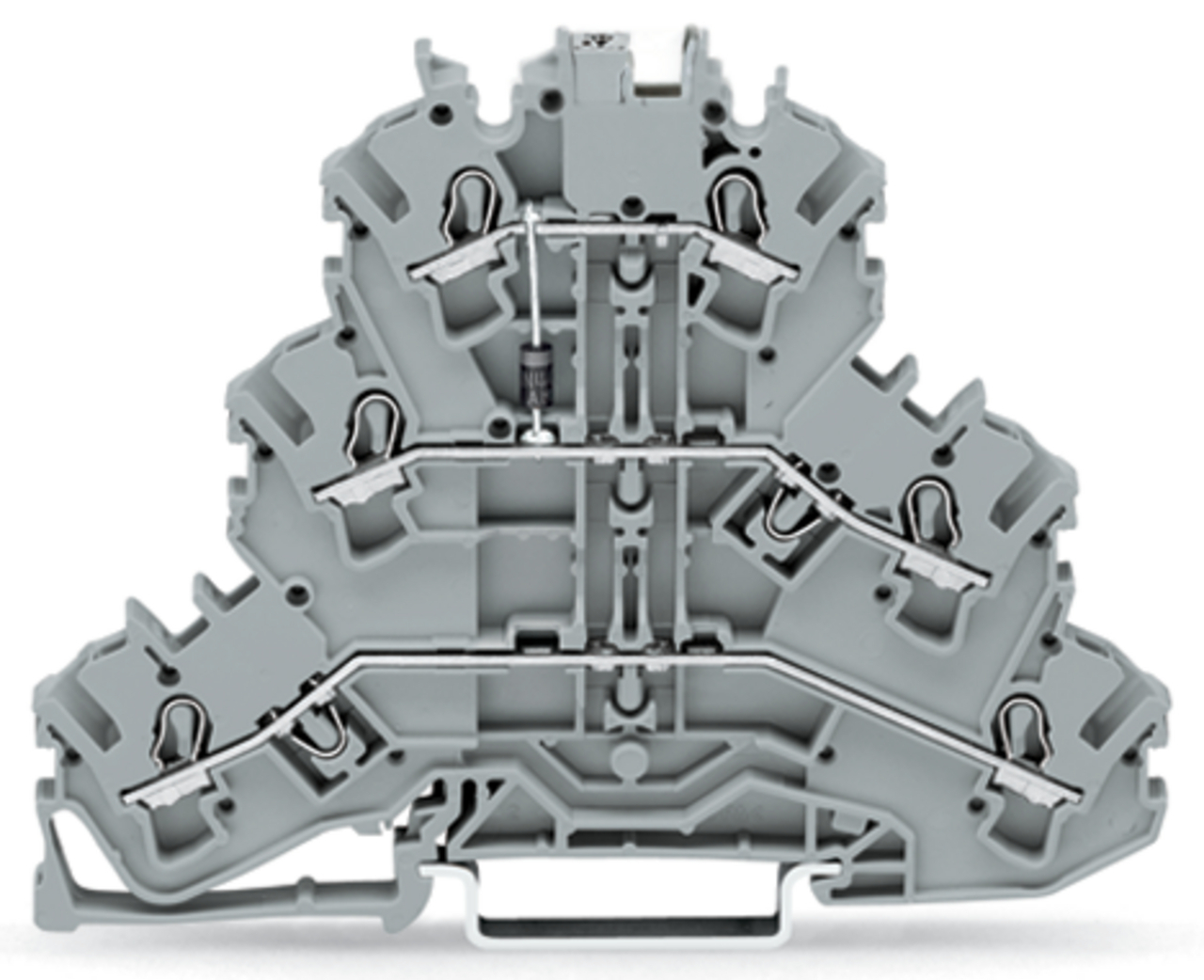

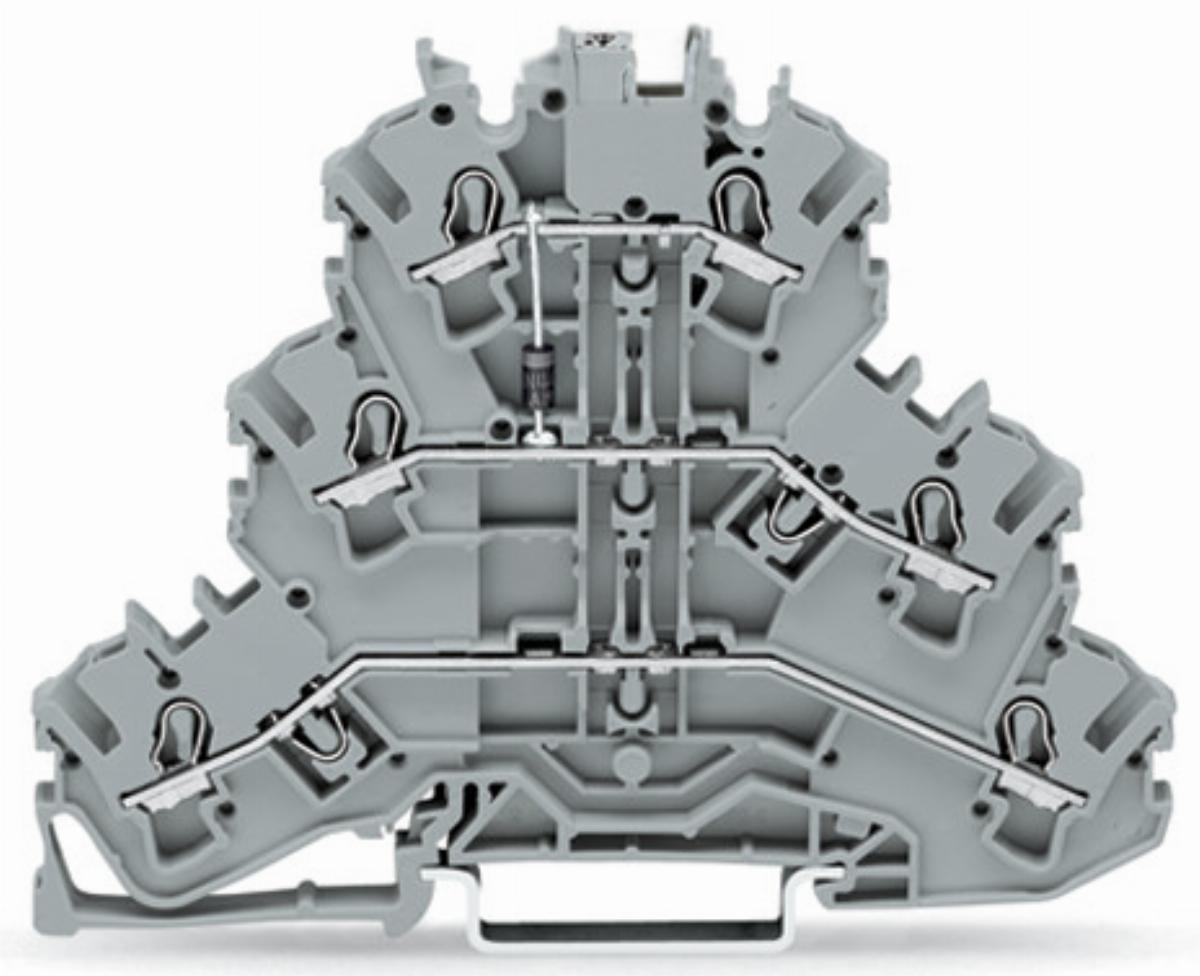

Złączka do zabudowy elementów 3-piętrowe, szara 2002-3211/1000-411
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2002-3211/1000-411 |
GTIN(EAN) | 4045454375690 |
Price unit | piece |
Catalog price | 87,37 zł (71,03 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

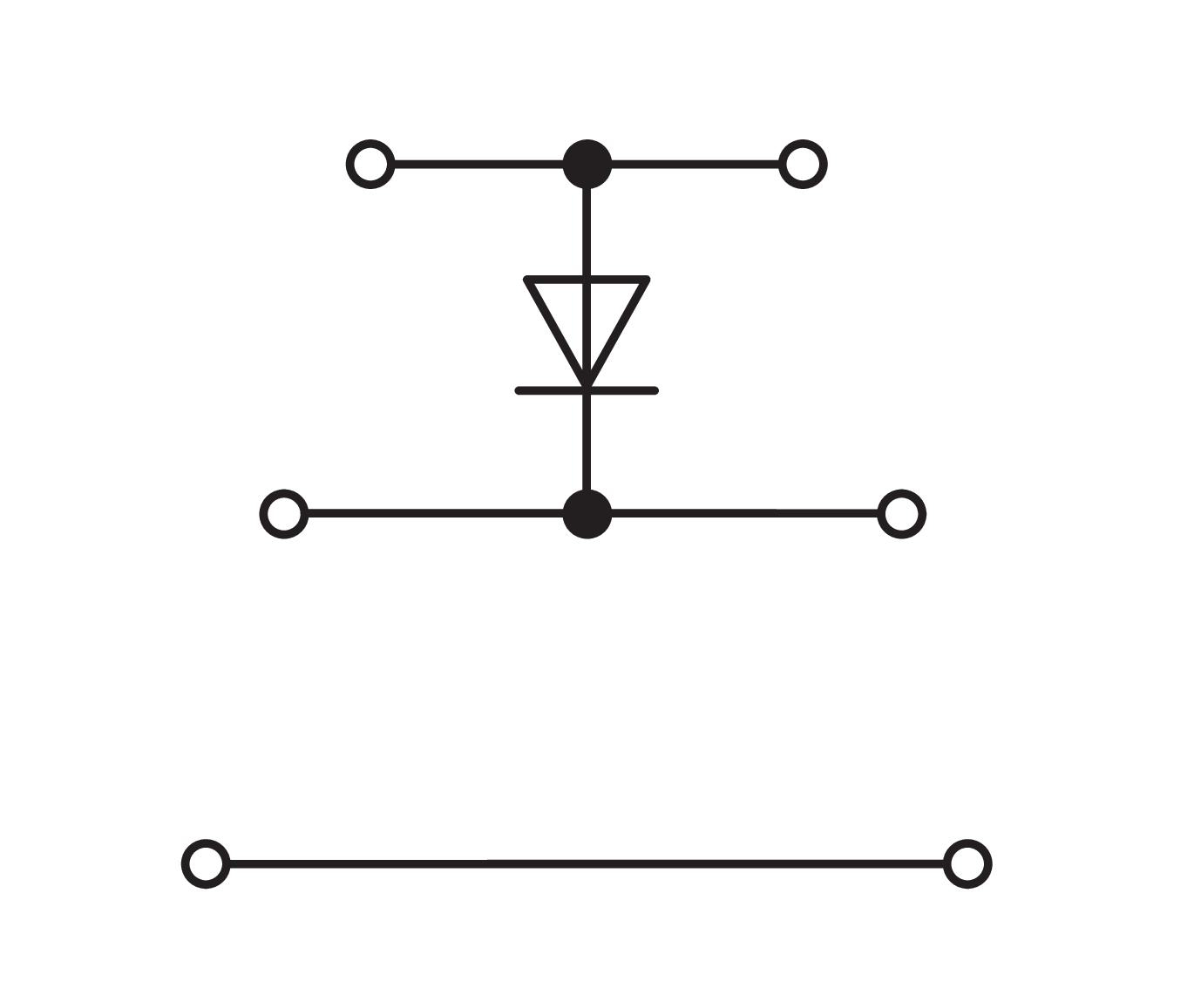

złączka do zabudowy elementów; 3-piętr.; z diodą 1N4007; anoda u góry; na szynę TS 35 x 15 i 35 x 7,5; 2,5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 17,58 g |
ETIM class: | Component terminal block |
Operating temperature: | 105 - 105 °C |
Explosion-tested version 'Ex e': | no |
Rated current In: | 0.5 A |
Height: | 93.3 mm |
Number of levels: | 3 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Internally connected stages: | yes |
Colour: | Grey |
Width: | 5.2 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 250 V |
Depth: | 69.5 mm |
Type of component: | Diode |
