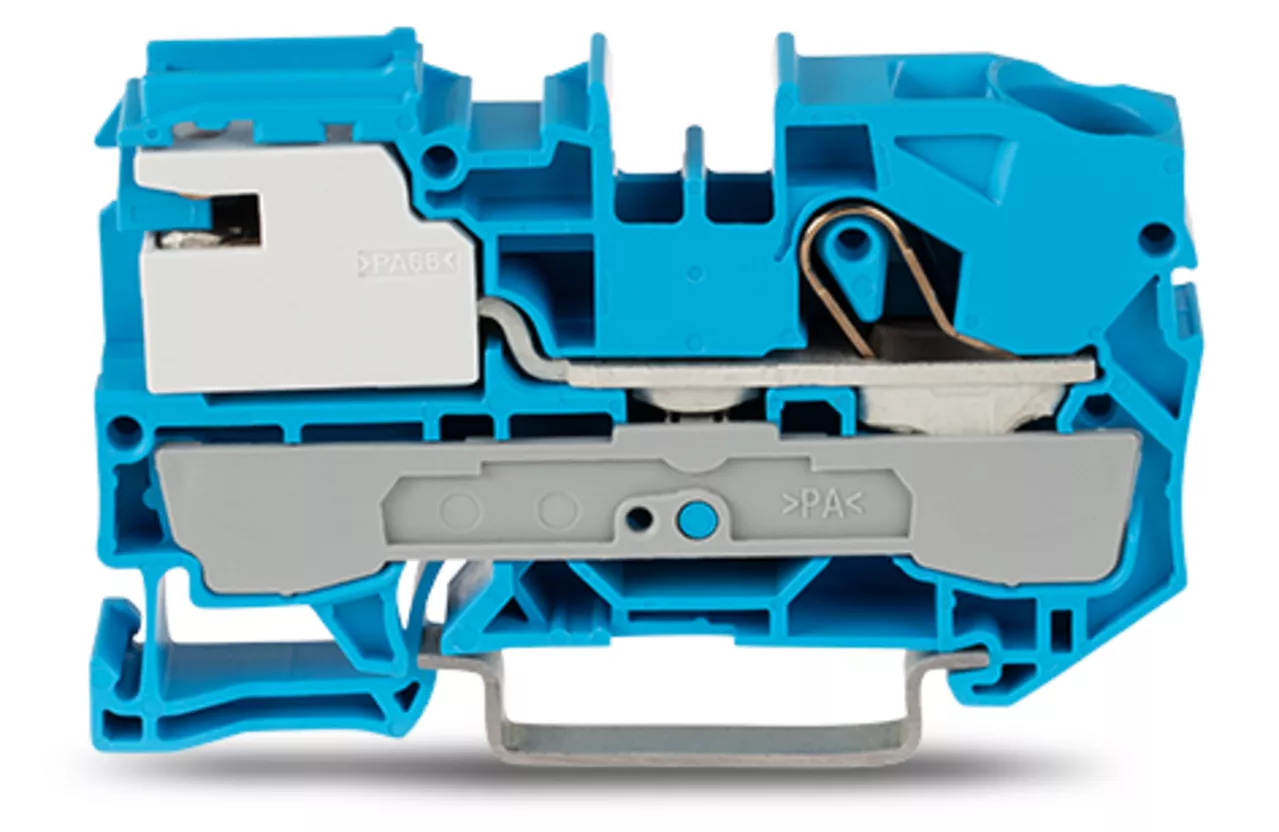

1-przewodowa złączka rozłączalna N 10 mm², niebieska 2010-7114
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2010-7114 |
GTIN(EAN) | 4055143879699 |
Price unit | piece |
Catalog price | 27,05 zł (21,99 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka rozłączalna N 1-przewodowa; 10 mm²; Push-in CAGE CLAMP®; 10,00 mm²; niebieski
Additional features:
Information | Value |
---|---|
Net weight: | 21,77 g |
ETIM class: | Neutral disconnect terminal block |
Operating temperature: | 105 - 105 °C |
Material insulation body: | Thermoplastic |
Height: | 67.3 mm |
Connectable conductor cross section solid-core: | 2.5 - 16 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 2.5 - 10 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 57 A |
Suitable for N-busbar: | 3x10 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Type of electric connection: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 16 mm² |
Connecting plate required: | yes |
Connectable conductor cross section multi-wired: | 0.5 - 10 mm² |
Colour: | Blue |
Rated voltage: | 250 V |
Width: | 10 mm |
Depth: | 38.1 mm |
Number of clamp positions: | 1 |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 15:07:22 |
Files to download: | |
External links: |
