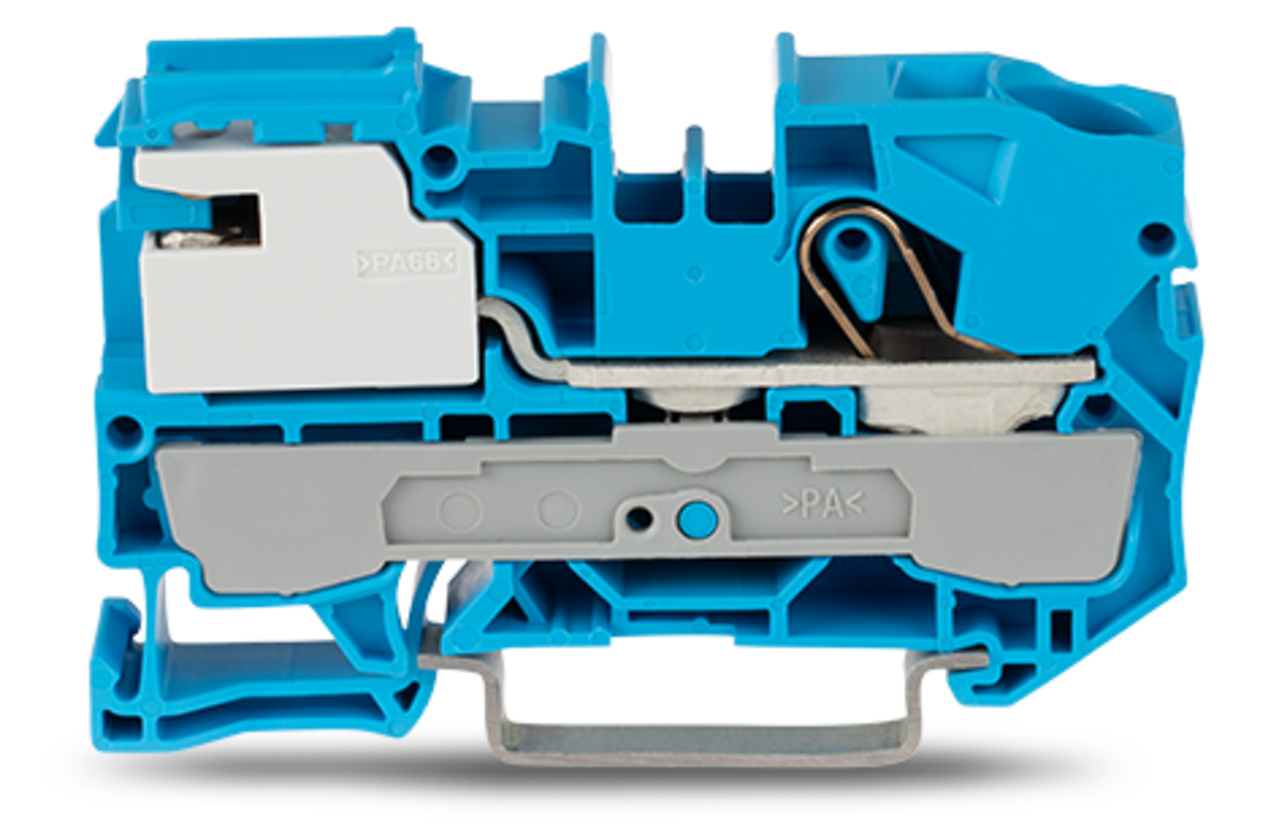

1-przewodowa złączka rozłączalna N 10 mm², niebieska 2010-7114
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2010-7114 |
| GTIN(EAN) | 4055143879699 |
| Price unit | piece |
| Catalog price | 27,37 zł (22,25 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
złączka rozłączalna N 1-przewodowa; 10 mm²; Push-in CAGE CLAMP®; 10,00 mm²; niebieski
Additional features:
| Information | Value |
|---|---|
| Net weight: | 21,77 g |
| Country of origin | Niemcy |
| ETIM class: | Neutral disconnect terminal block |
| Operating temperature: | 105 - 105 °C |
| Material insulation body: | Thermoplastic |
| Height: | 67,3 mm |
| Connectable conductor cross section solid-core: | 2,5 - 16 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 2,5 - 10 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Rated current In: | 57 A |
| Suitable for N-busbar: | 3x10 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Type of electric connection: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0,5 - 16 mm² |
| Connecting plate required: | yes |
| Connectable conductor cross section multi-wired: | 0,5 - 10 mm² |
| Colour: | Blue |
| Rated voltage: | 250 V |
| Width: | 10 mm |
| Depth: | 38,1 mm |
| Number of clamp positions: | 1 |
