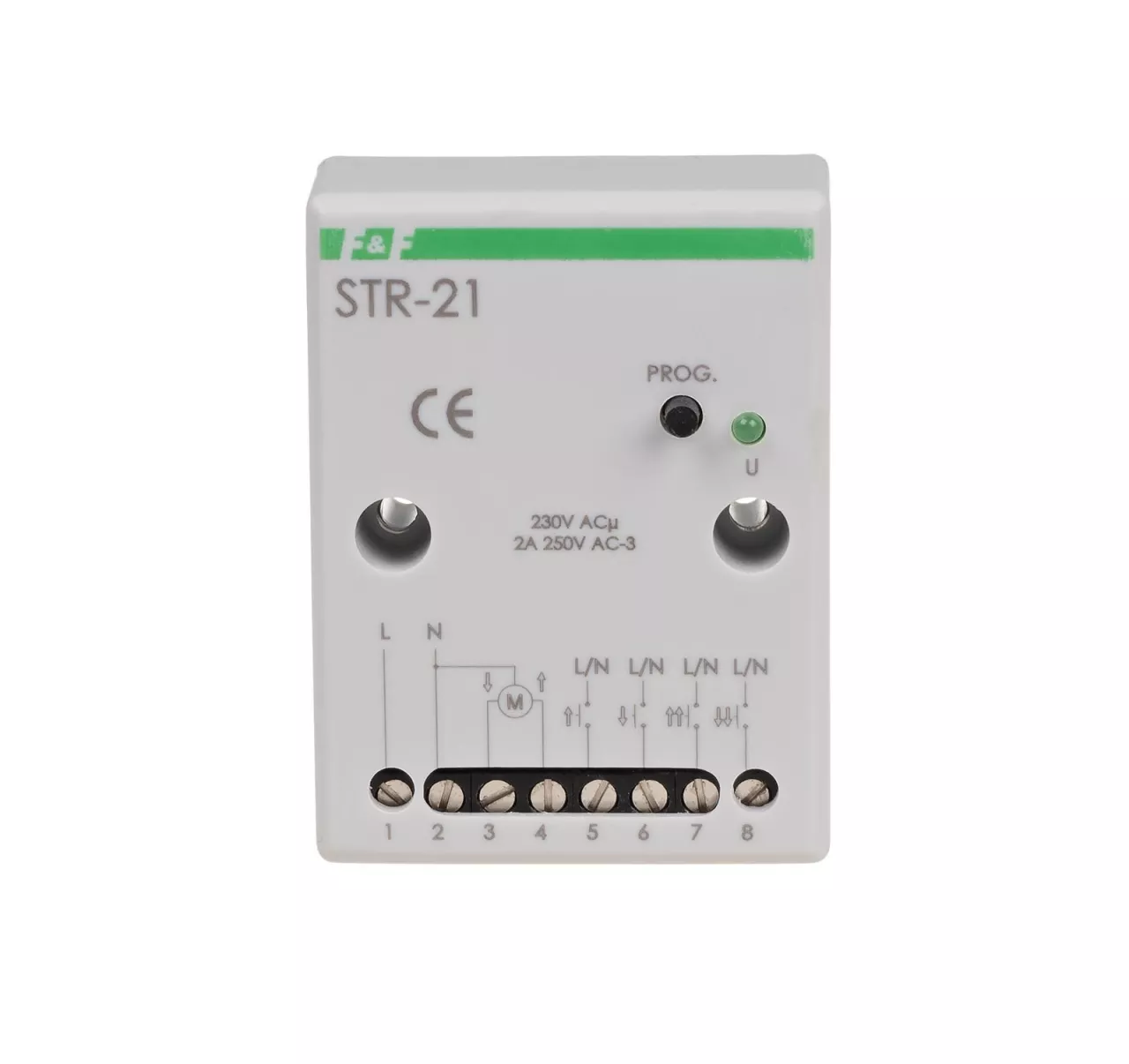

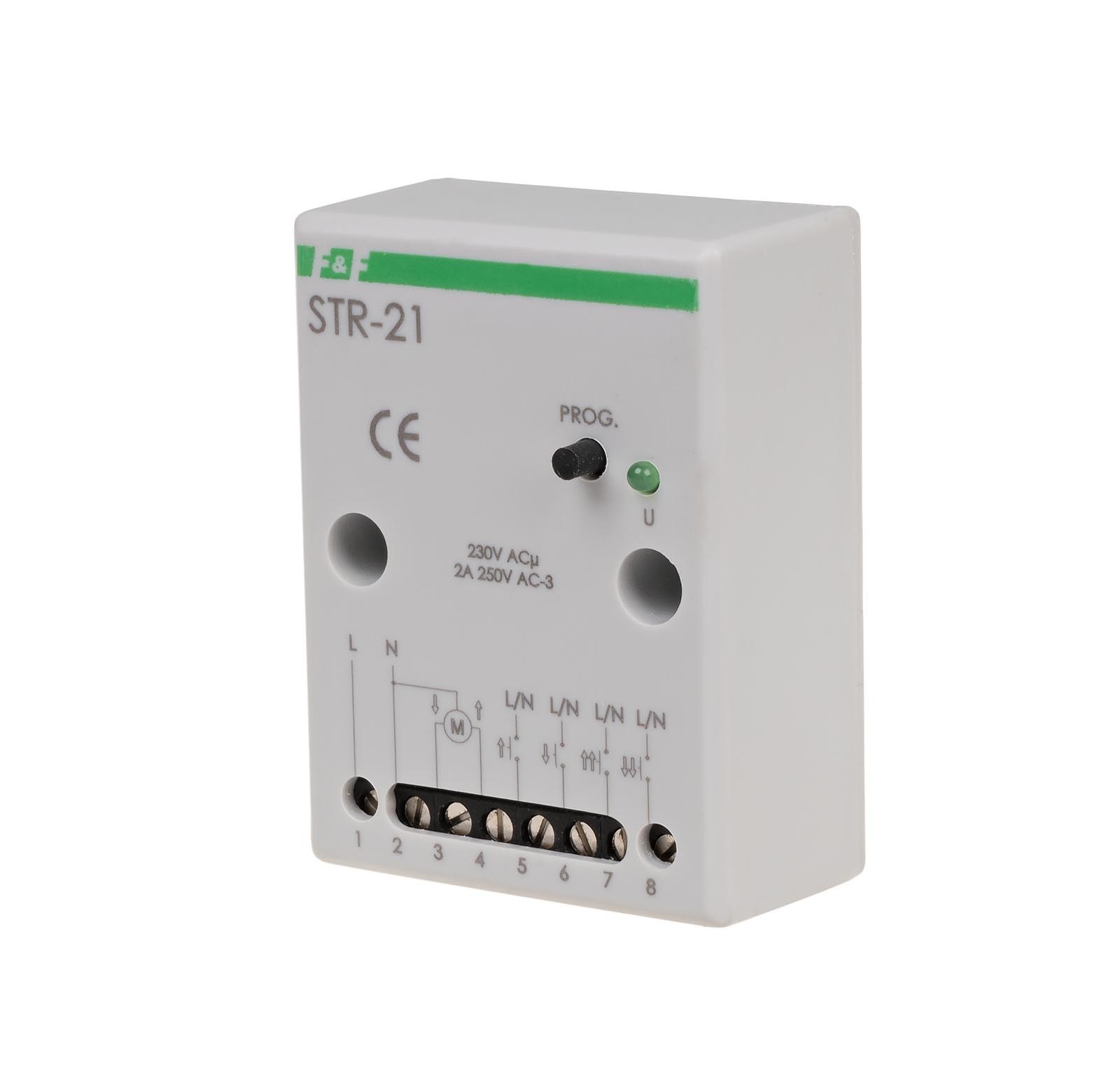

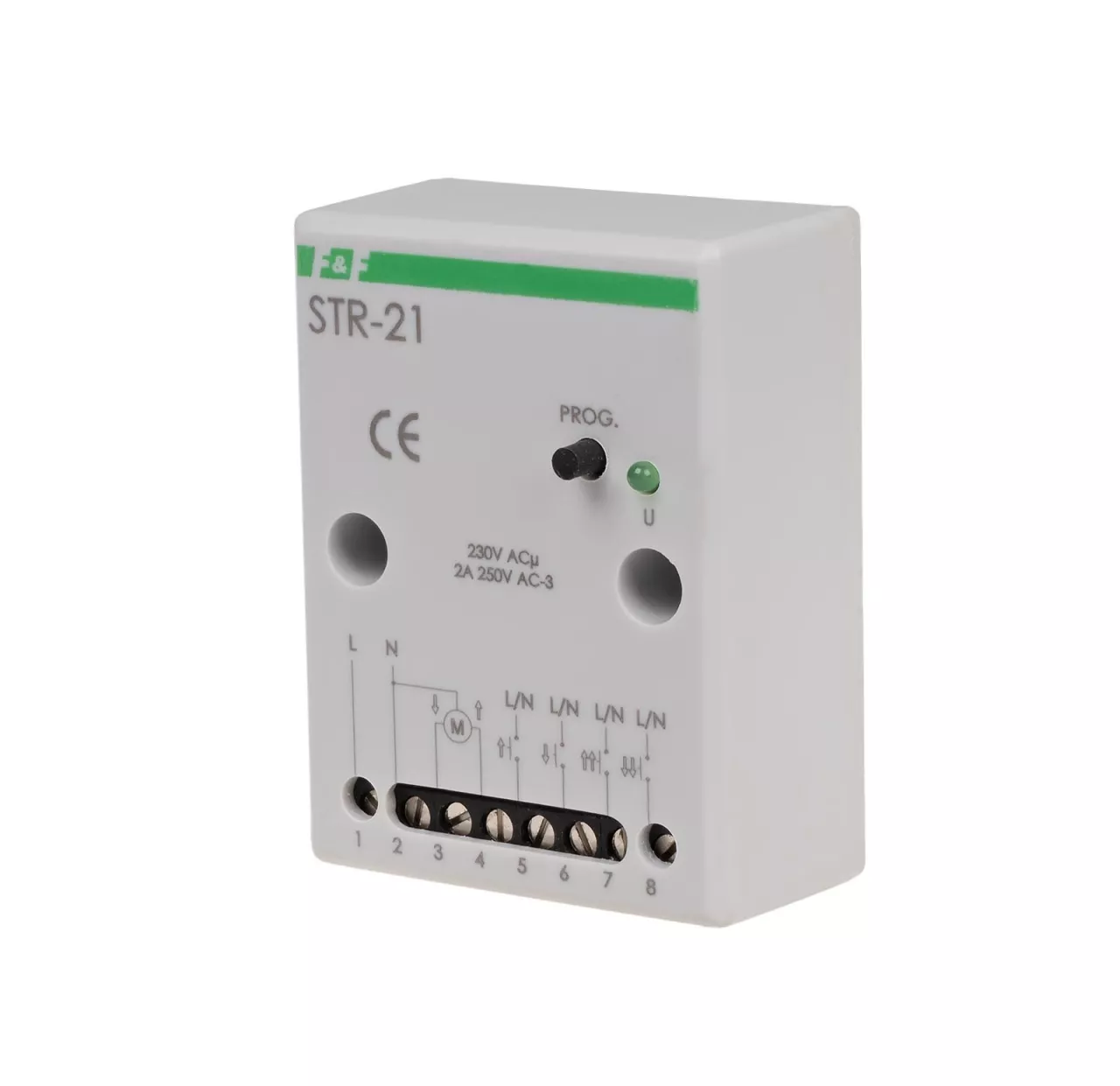

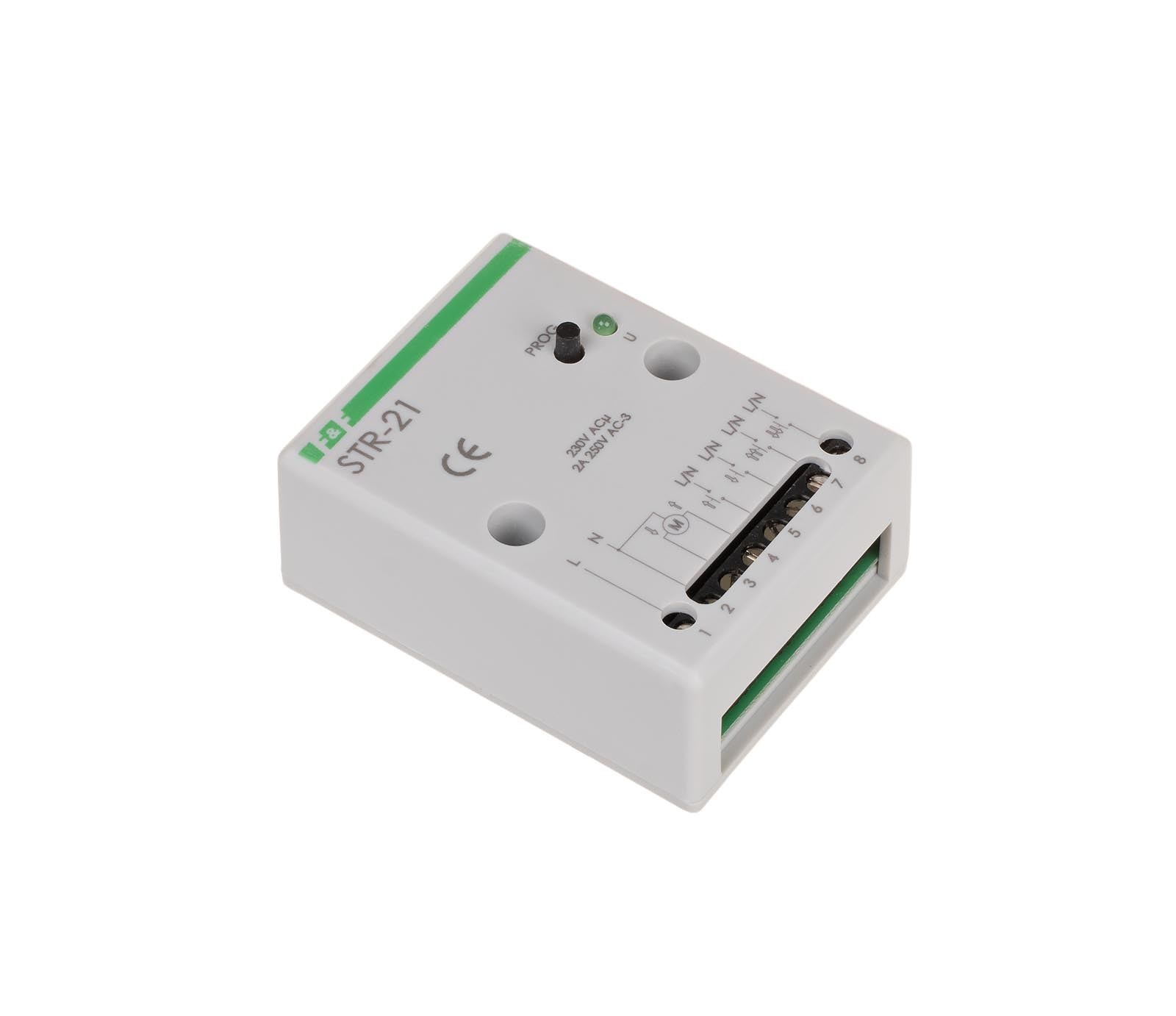

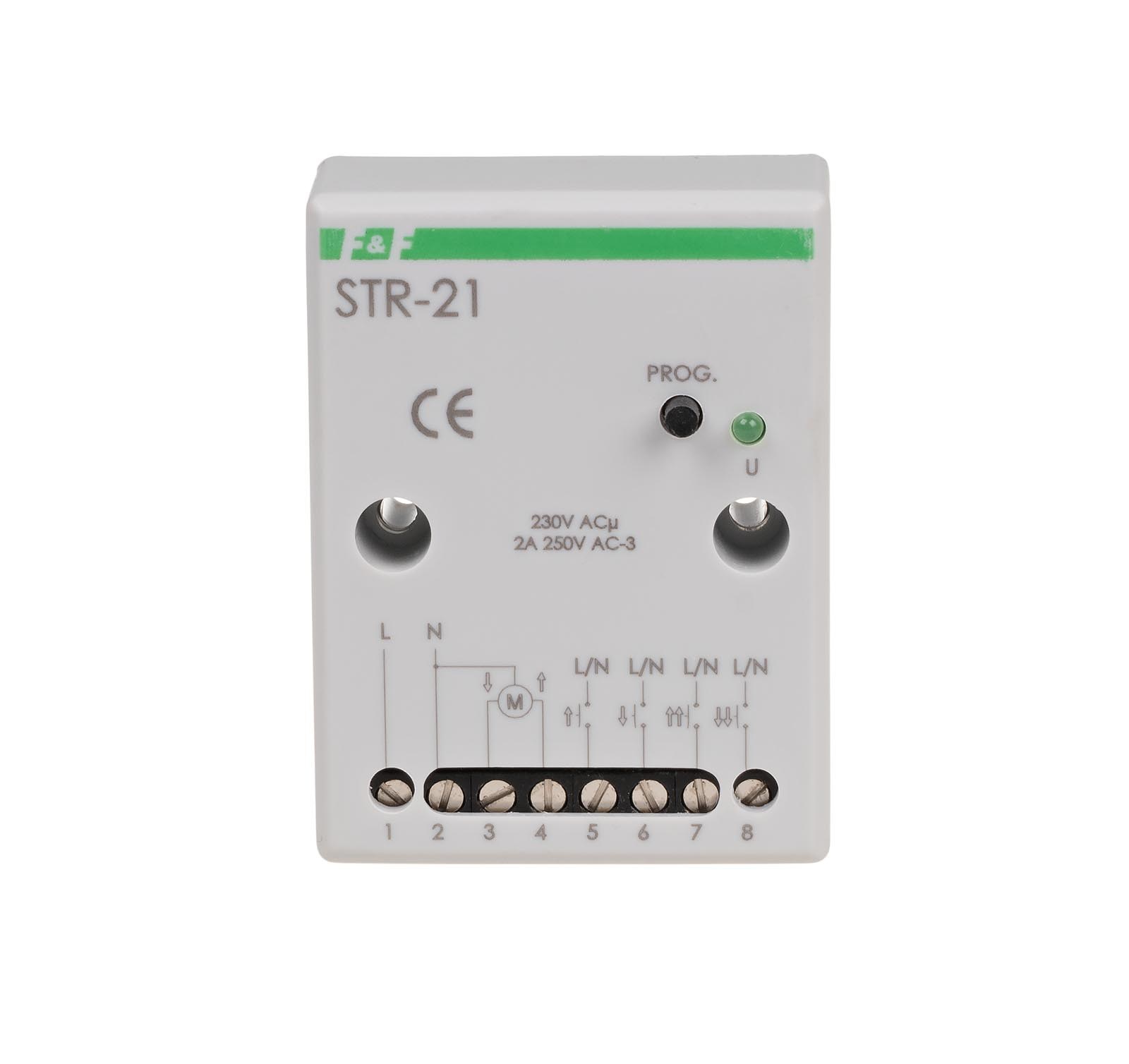

Sterownik roletowy, dwuprzyciskowy STR-21 napięcie 230V AC
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | STR |
| Symbol | STR-21 |
| GTIN(EAN) | 5908312591511 |
| Price unit | piece |
| Catalog price | 147,60 zł (120,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Typ silnika 230 V AC Sterowanie centralne dwuprzyciskowe Sterowanie lokalne dwuprzyciskowe Sygnał sterujący L lub N Maksymalny prąd impulsu sterującego 1 mA Maksymalny prąd obciążenia AC-3 1,5 A Czas załączenia - programowany 0 s ÷ 10 min Element wykonawczy przekaźnik Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Pobór mocy 1 W Temperatura pracy -25 ÷ 50 °C Wymiary 51×67×26 mm (± 1 mm) Montaż natynkowy Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 81 g |
| ETIM class: | Venetian blind control unit |
| Assembly arrangement: | Basic element |
| Integrated timer: | no |
| With brightness sensor connection: | no |
| Suitable for wind sensor: | no |
| Suitable for rain sensor: | no |
| With glass breaking detector connection: | no |
| With Astro program: | no |
| Substation input: | no |
| With memory function: | yes |
| Random generator: | no |
| Switch-off protection: | no |
| Mounting method: | Wall duct |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen free: | yes |
| Surface finishing: | Matt |
| Transparent: | no |
| Suitable for degree of protection (IP): | IP20 |
| Max. switching power: | 300 W |
| Nominal voltage: | 230 V |
| Type of fastening: | Other |
