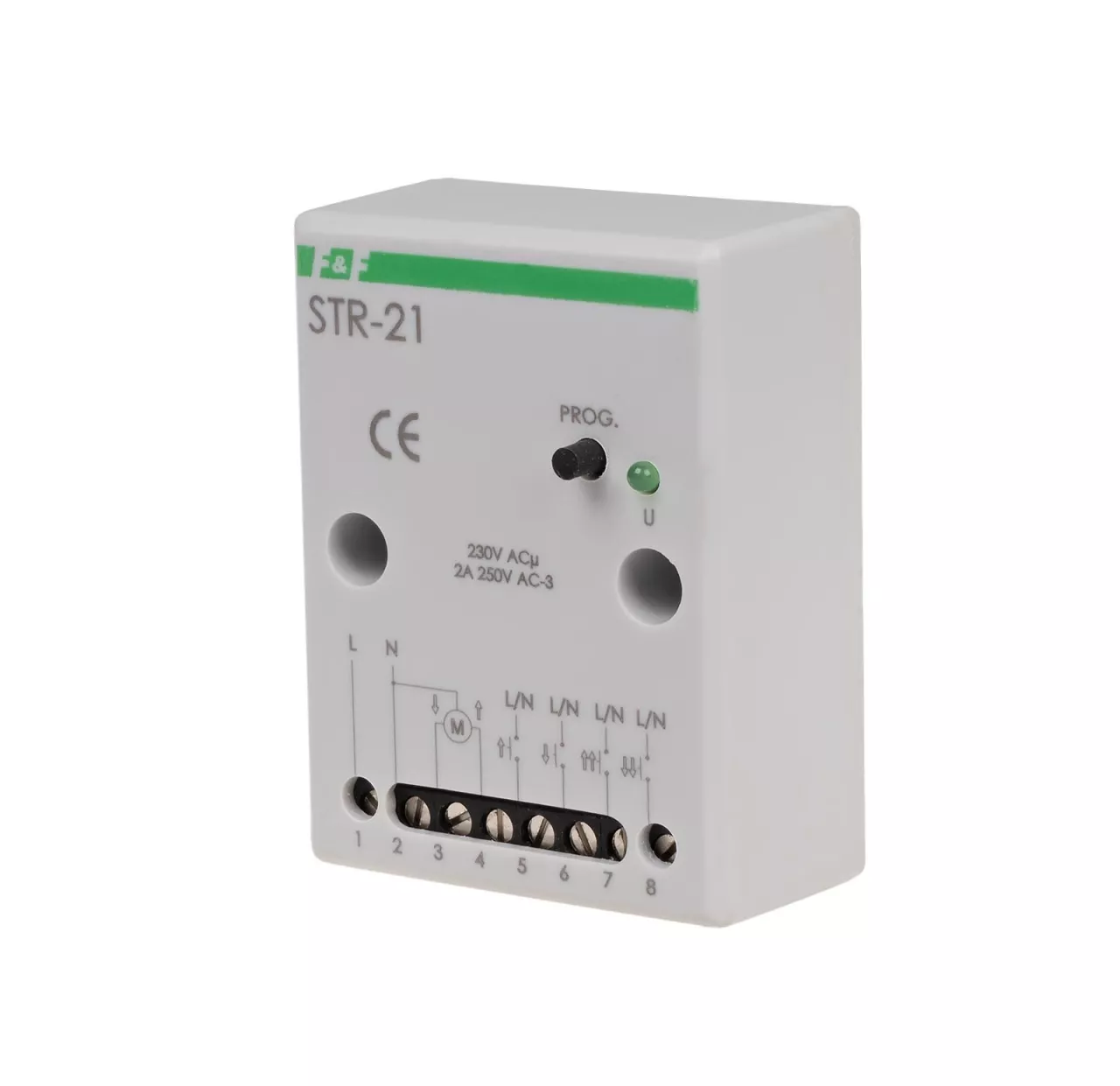

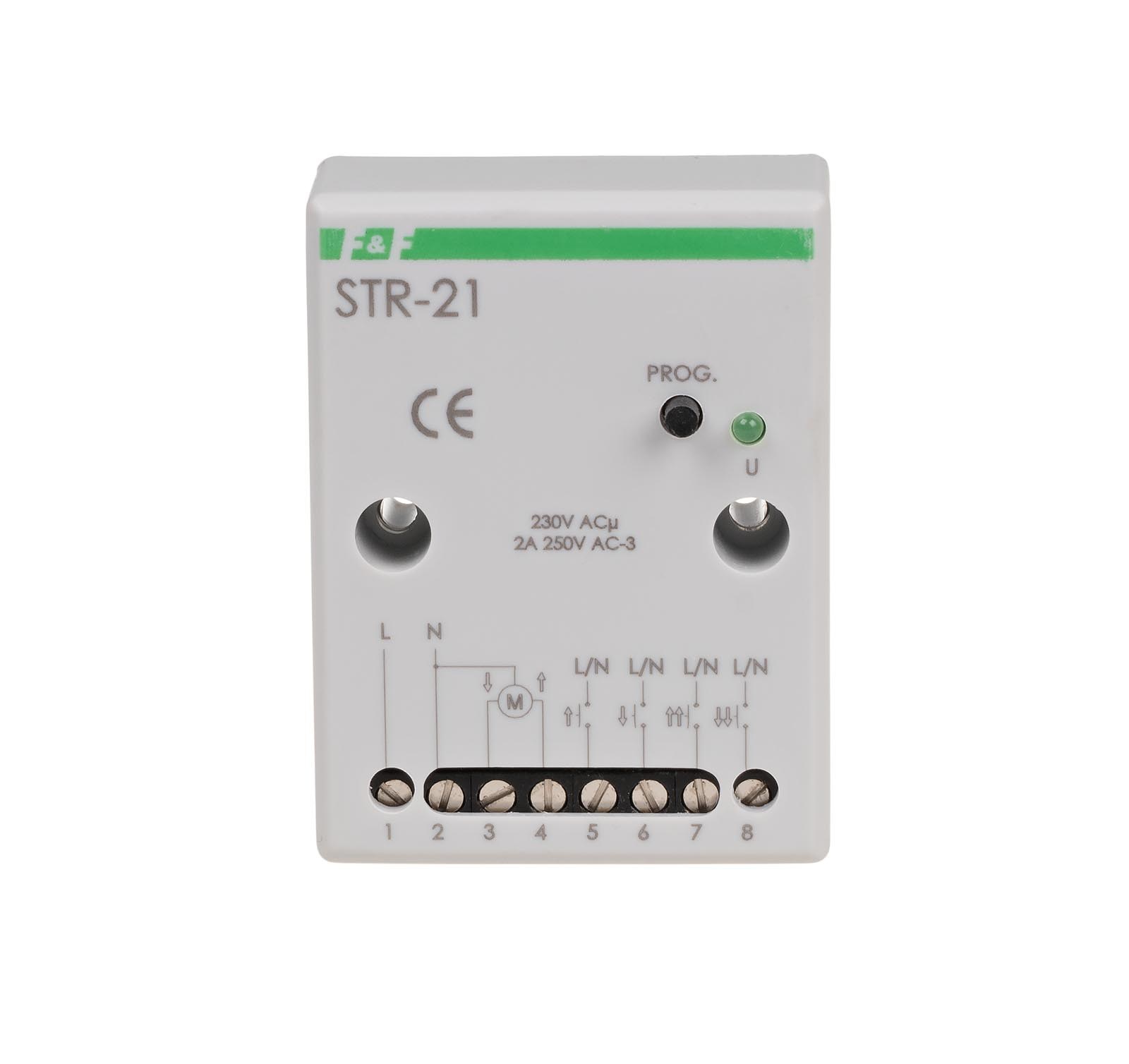

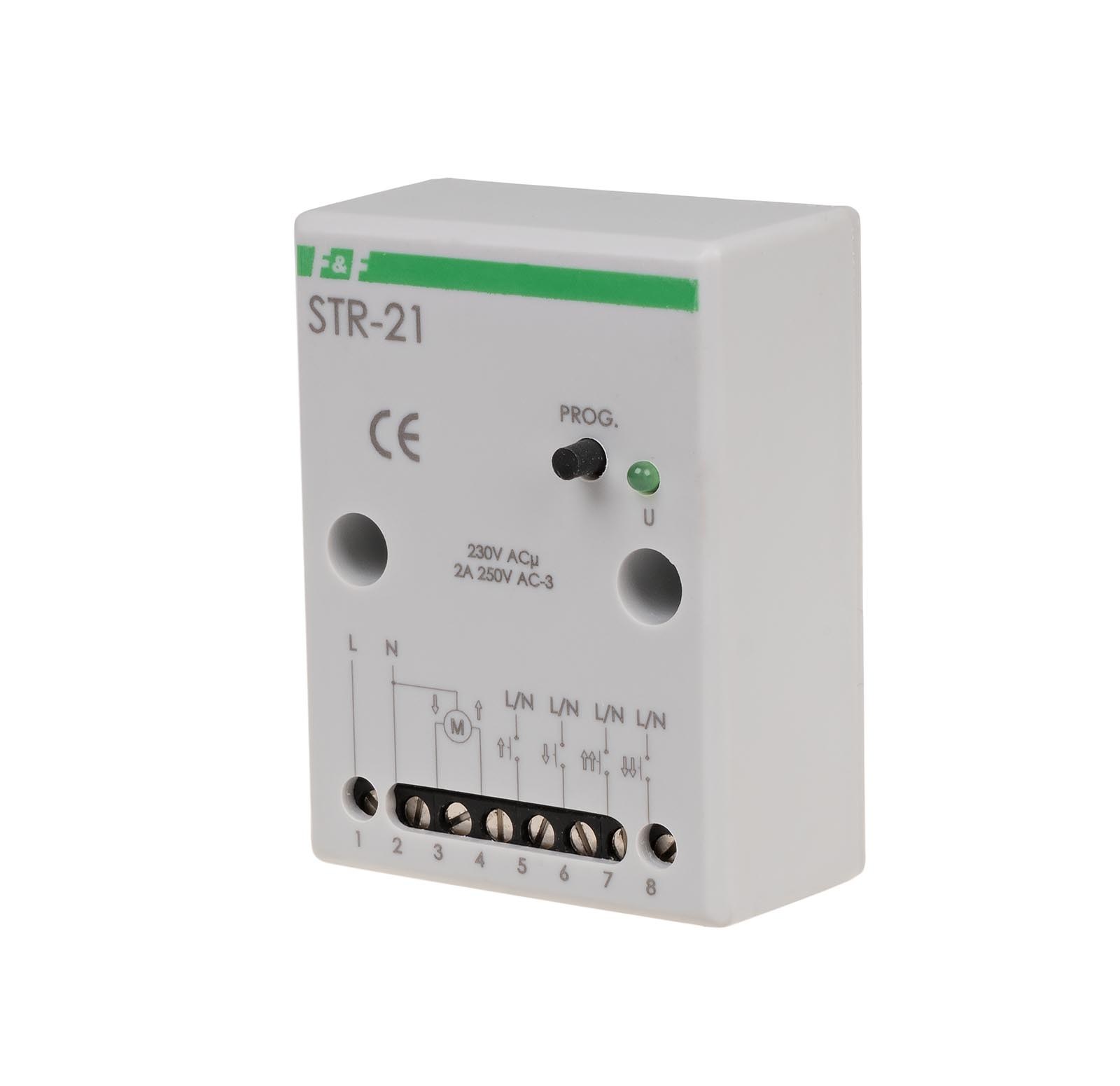

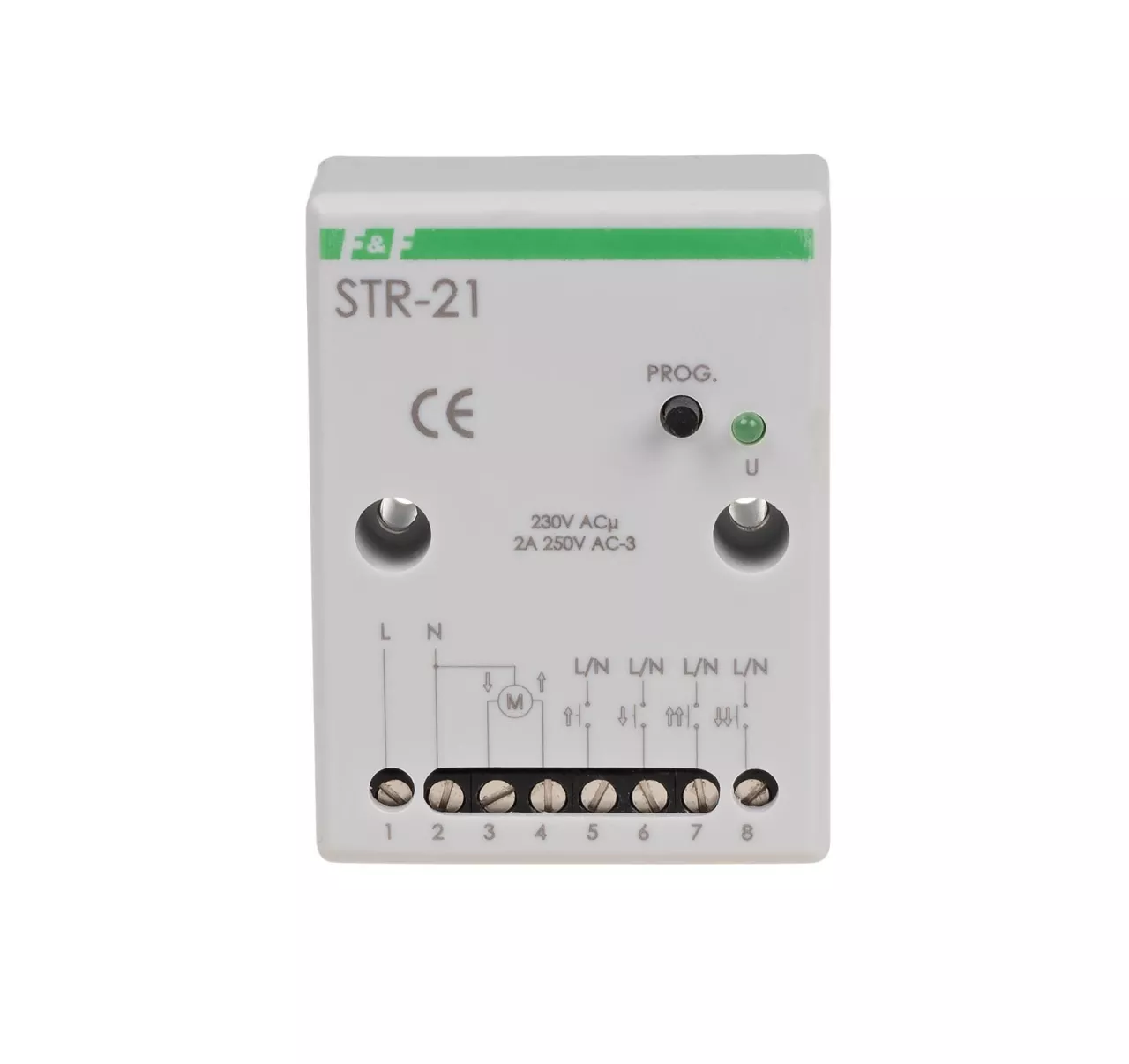

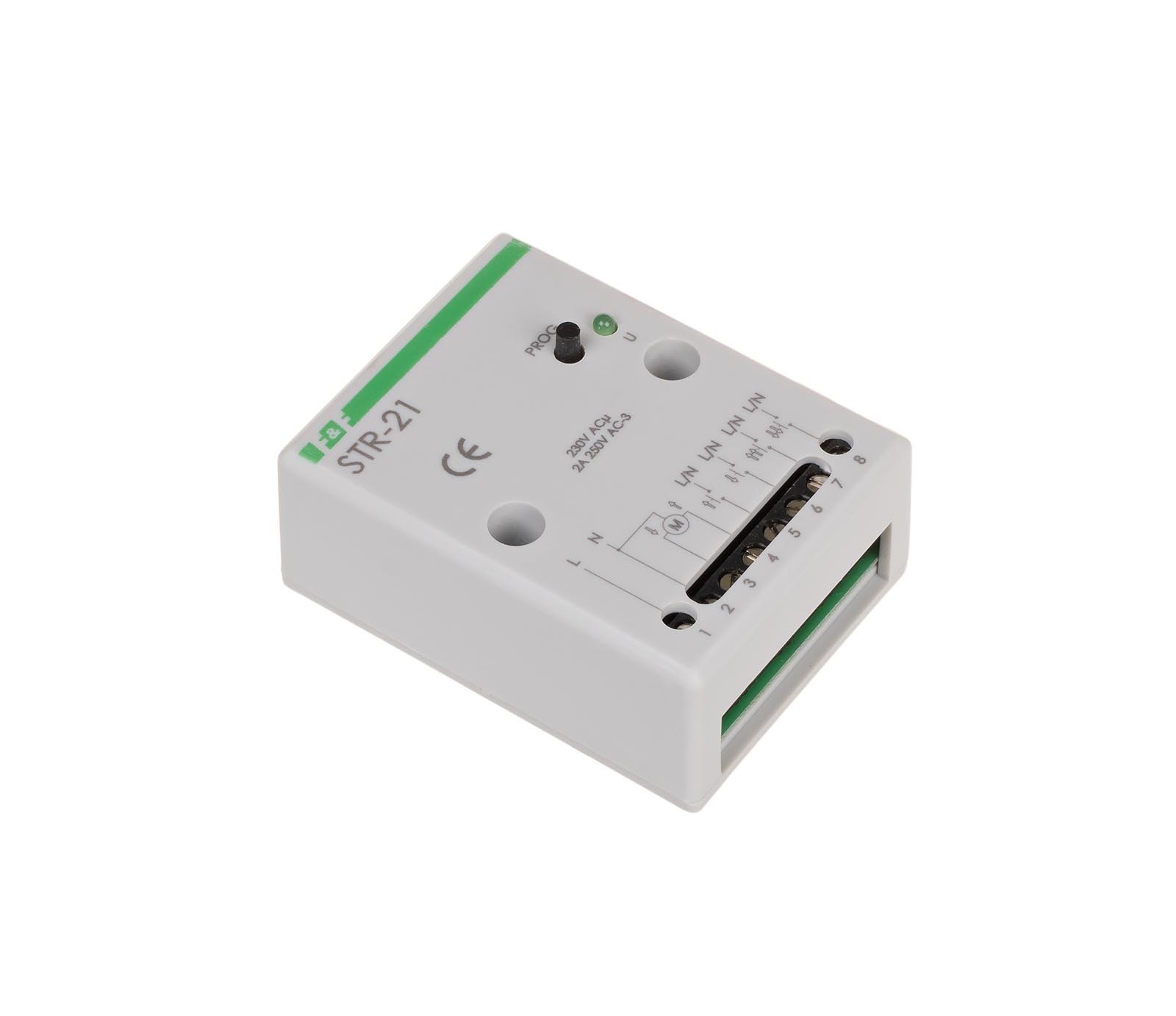

Sterownik roletowy, dwuprzyciskowy STR-21 napięcie 230V AC
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | STR |
Symbol | STR-21 |
GTIN(EAN) | 5908312591511 |
Price unit | piece |
Catalog price | 147,60 zł (120,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Typ silnika 230 V AC Sterowanie centralne dwuprzyciskowe Sterowanie lokalne dwuprzyciskowe Sygnał sterujący L lub N Maksymalny prąd impulsu sterującego 1 mA Maksymalny prąd obciążenia AC-3 1,5 A Czas załączenia - programowany 0 s ÷ 10 min Element wykonawczy przekaźnik Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Pobór mocy 1 W Temperatura pracy -25 ÷ 50 °C Wymiary 51×67×26 mm (± 1 mm) Montaż natynkowy Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
Gross weight: | 81 g |
ETIM class: | Venetian blind control unit |
Assembly arrangement: | Basic element |
Integrated timer: | no |
With brightness sensor connection: | no |
Suitable for wind sensor: | no |
Suitable for rain sensor: | no |
With glass breaking detector connection: | no |
With Astro program: | no |
Substation input: | no |
With memory function: | yes |
Random generator: | no |
Switch-off protection: | no |
Mounting method: | Wall duct |
Material: | Plastic |
Material quality: | Thermoplastic |
Halogen free: | yes |
Surface finishing: | Matt |
Transparent: | no |
Suitable for degree of protection (IP): | IP20 |
Max. switching power: | 300 W |
Nominal voltage: | 230 V |
Type of fastening: | Other |
