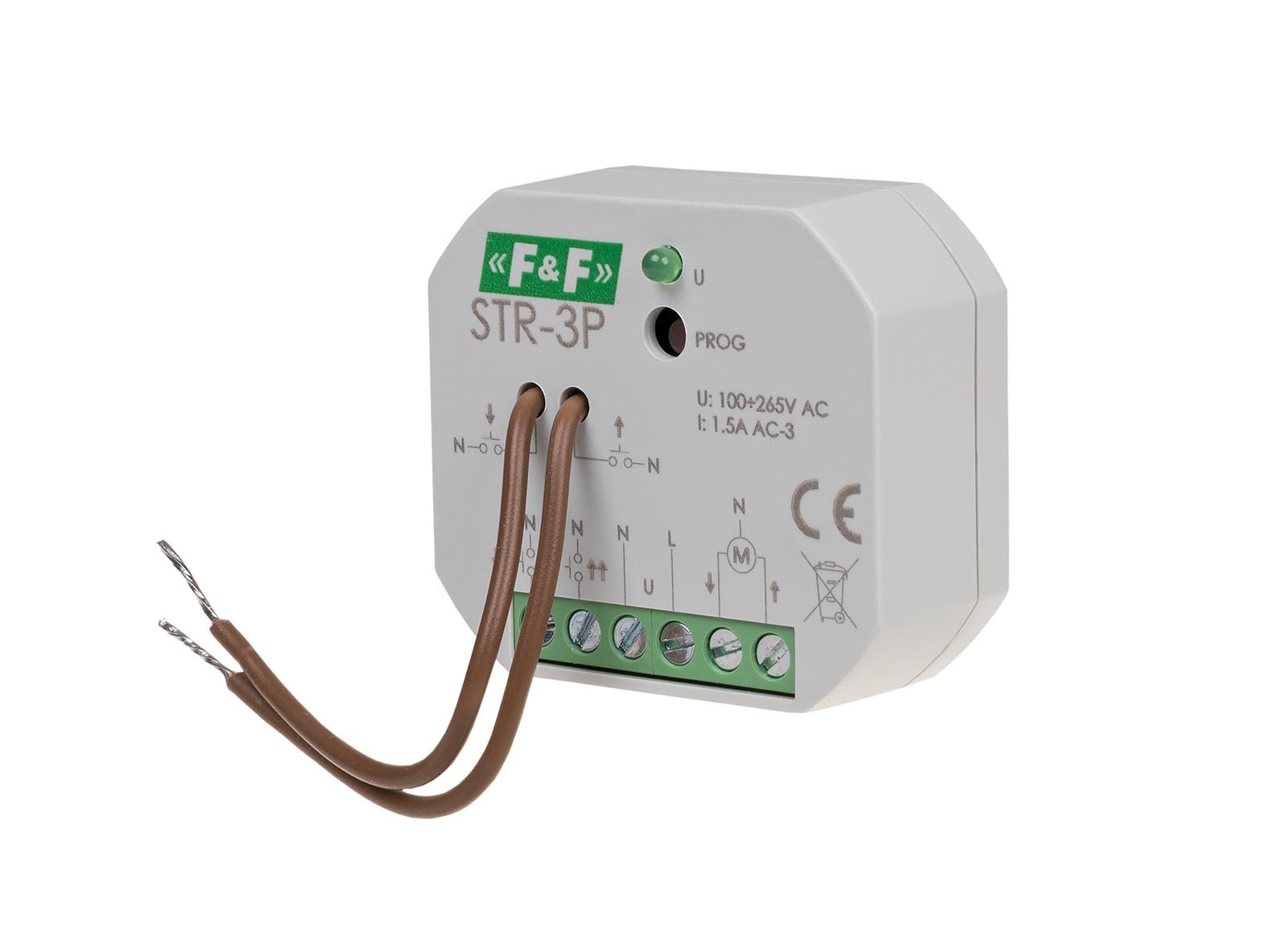

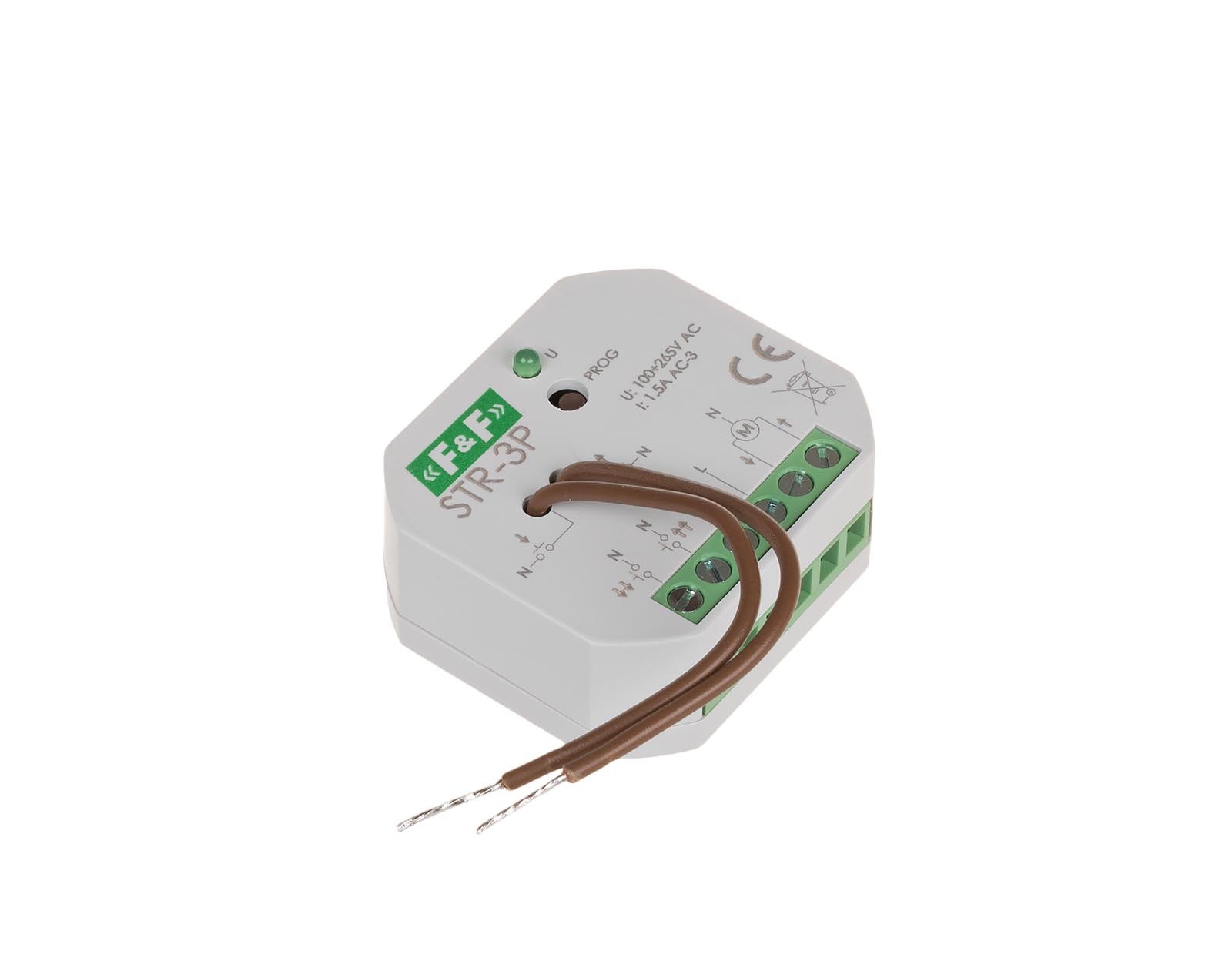

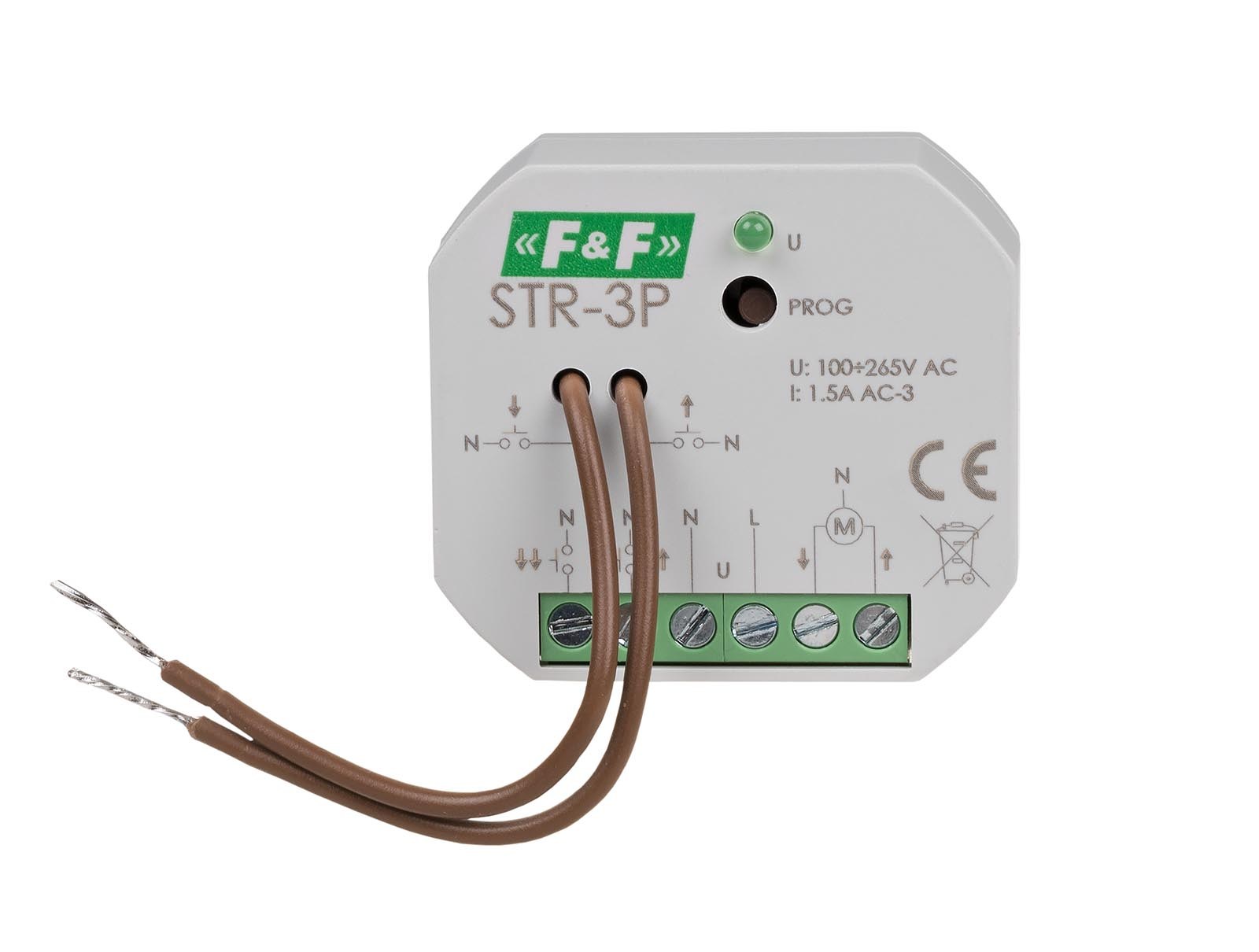

Sterownik rolet do silników AC 100÷265V AC STR-3P
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | STR |
| Symbol | STR-3P |
| GTIN(EAN) | 5908312597834 |
| Price unit | piece |
| Catalog price | 151,91 zł (123,50 zł + 23% VAT) |
| Sale price | from 75,50 zł / szt. (61,38 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 100÷265 V AC/DC Sterowanie wyzwalane poziomem N Typ silnika 230 V AC Sterowanie centralne dwuprzyciskowe Sterowanie lokalne jedno lub dwuprzyciskowe Sygnał sterujący N Czas załączenia - programowany od 1 s do 15 min. Element wykonawczy przekaźnik Obciążenie styku AC-1 / AC-3 8 A / 320 W Przyłącze sterowania lokalnego 2× DY 1 mm² / l: 10 mm Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Pobór mocy czuwanie/praca 0,15 W/0,6 W Temperatura pracy -15 ÷ 50°C Wymiary Ø54 (48×43 mm), wysokość: 20 mm Montaż w puszce podtynkowej Ø60 Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 60 g |
| ETIM class: | Venetian blind control unit |
| Assembly arrangement: | Basic element |
| Integrated timer: | no |
| With brightness sensor connection: | no |
| Suitable for wind sensor: | yes |
| Suitable for rain sensor: | yes |
| With glass breaking detector connection: | no |
| With Astro program: | no |
| Substation input: | yes |
| With memory function: | yes |
| Random generator: | yes |
| Switch-off protection: | no |
| Mounting method: | Flush-mounted |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen free: | yes |
| Surface finishing: | Matt |
| Transparent: | no |
| Suitable for degree of protection (IP): | IP20 |
| Max. switching power: | 320 W |
| Nominal voltage: | 230 V |
| Frequency: | 50 - 50 Hz |
| Type of fastening: | Screw mounting |
