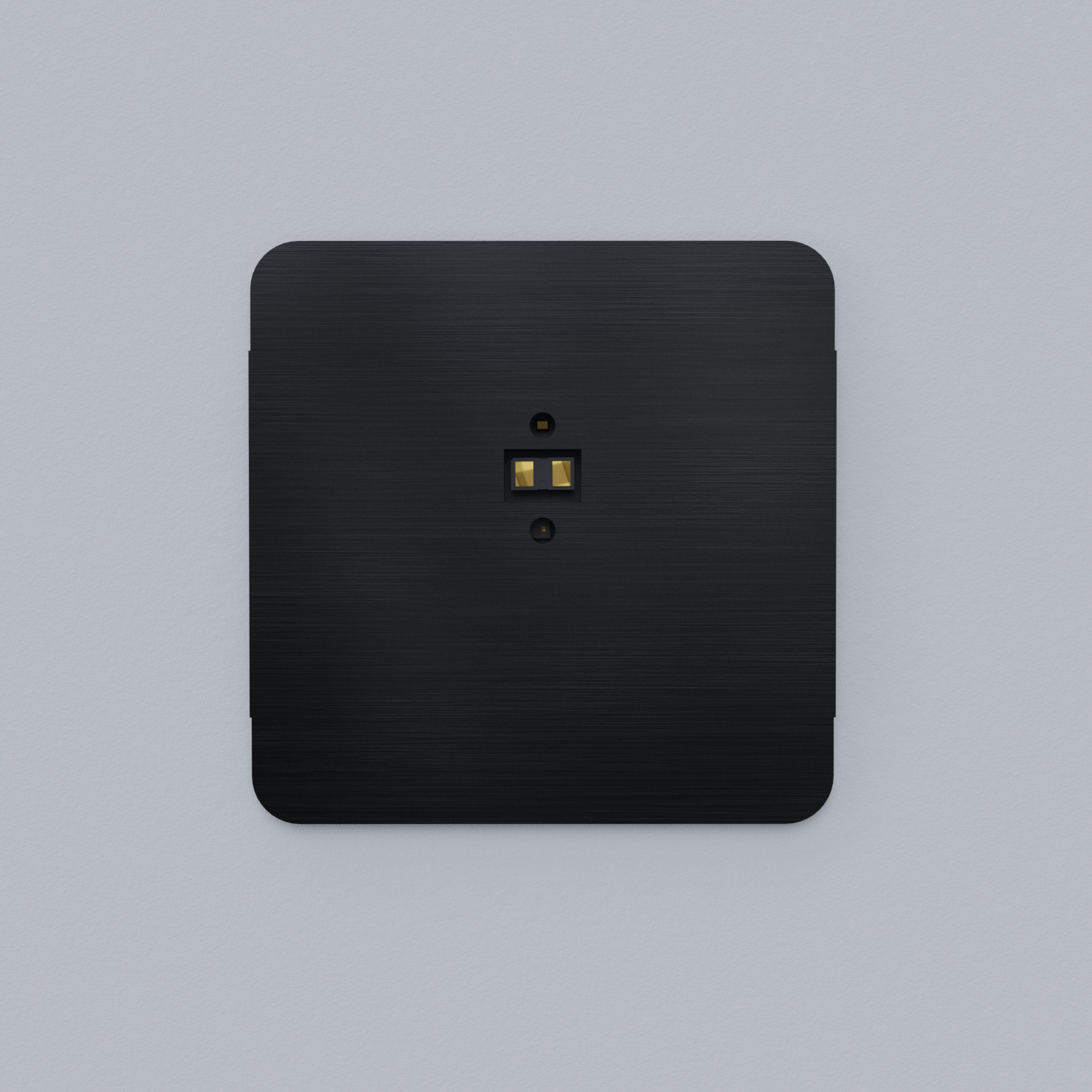

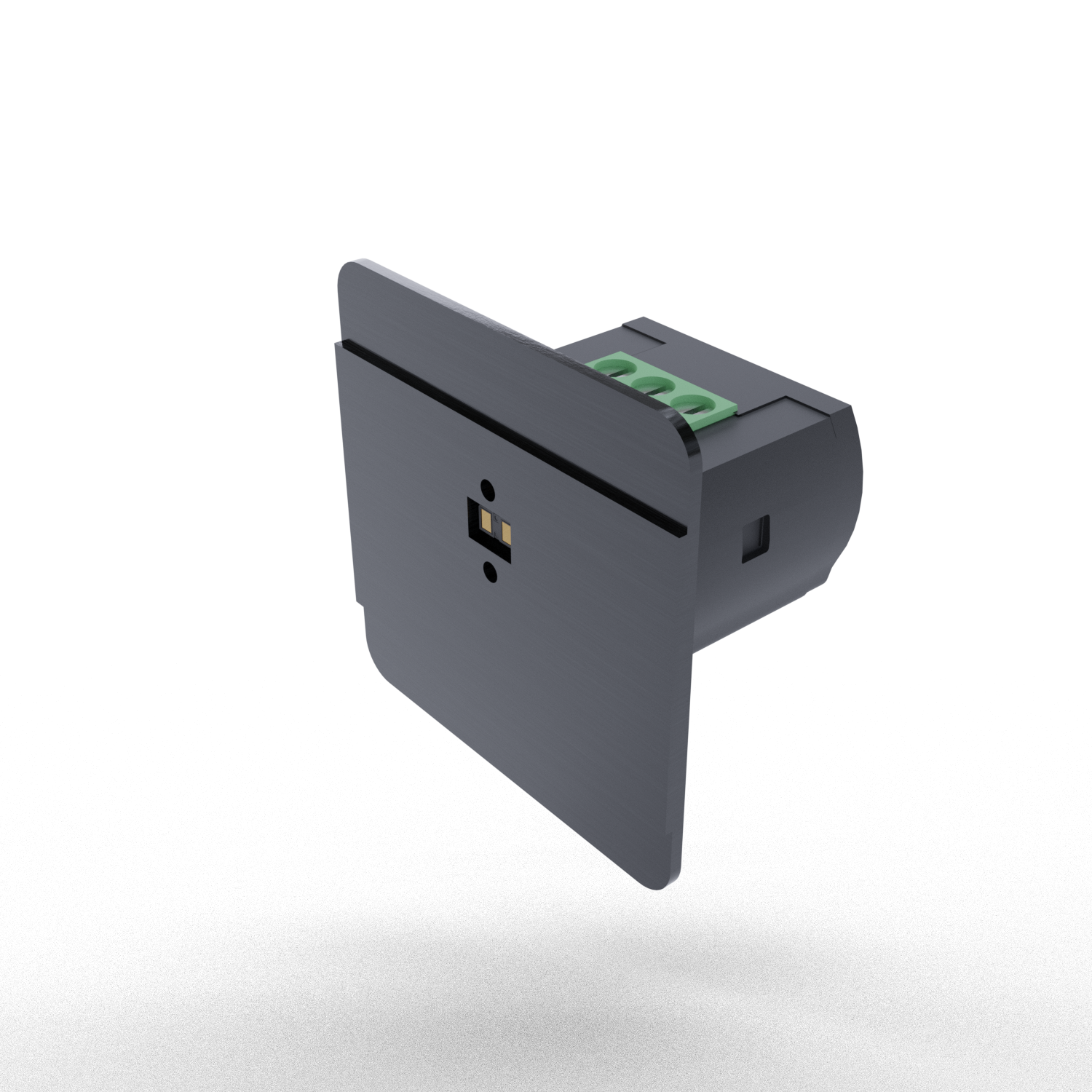

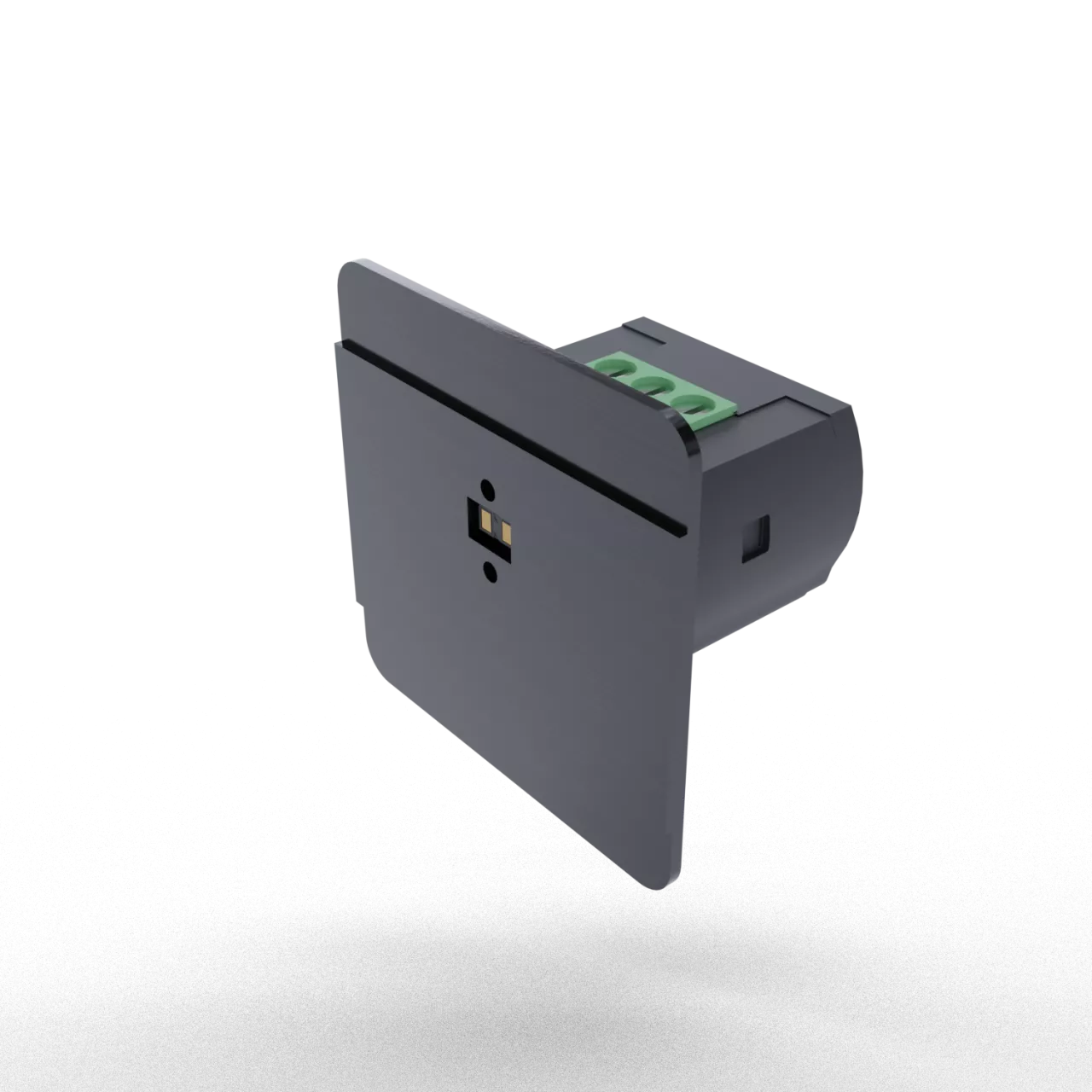

Laserowy czujnik odległości DRL-12, czujnik ruchu, antracyt
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | DR |
Symbol | DRL-12-9 |
GTIN(EAN) | 5902431674421 |
Price unit | piece |
Catalog price | 383,76 zł (312,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 9÷27 V DC Maksymalny prąd obciążenia 4 A Próg zadziałania - regulowany 2÷500 lx Pole detekcji 0,1÷2,0 m regulowane Czas załączenia odbiornika - regulowany 0÷10 min. Rodzaj detekcji czujnik laserowy ToF Długość fali 940 nm Bezpieczeństwo klasa 1 Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Pobór mocy 0,3 W Temperatura pracy -10÷45°C Wymiary zewnętrzne 45×45×1,5 mm; wewnętrzne (puszka) ø35 mm, głębokość 45 mm Montaż podtynkowy Stopień ochrony IP40
Additional features:
Information | Value |
---|---|
Gross weight: | 17 g |
ETIM class: | Movement sensor/presence detector complete |
Model: | Movement sensor |
Sensor type: | Other |
With DALI interface: | no |
Constant light control: | yes |
HVAC-control: | no |
Forced switch on: | yes |
Forced switch off: | no |
Animal zone: | no |
Creep-under protection: | no |
Networkable: | yes |
Scan angle: | 10 ° |
Staircase light controller: | yes |
Bridging switch: | no |
Max. reach sideways: | 0 m |
Max. presence range: | 1 m² |
Max. reach frontally: | 2 m |
Diameter reach on floor: | 1 m |
Suitable for wireless transmission: | no |
Remote operation: | no |
With remote control: | no |
Response value sensitivity adjustable: | yes |
Response value luminosity adjustable: | yes |
With signal unit: | yes |
Teach-function for response value luminosity: | no |
Dim function with dimmer basic element: | yes |
Mounting method: | Flush-mounted |
Suitable for ceiling mounting: | no |
Connection type: | Screwed terminal |
Material: | Metal |
Material quality: | Stainless steel |
Halogen free: | no |
Surface protection: | Other |
Anti-bacterial treatment: | no |
Colour: | Stainless steel |
Transparent: | no |
Degree of protection (IP): | IP20 |
Impact strength: | IK00 |
Voltage type: | DC |
Min. switch-on time: | 1 s |
Max. duty cycle: | 10 min |
Switch-off delay: | 1 s |
Switching-on delay: | 1 s |
Response value luminosity: | 2 - 500 lx |
Max. switching power: | 50 W |
Suitable for C-load: | yes |
Number of switching zones: | 1 |
Max. starting current: | 4 A |
Min. starting current: | 0.1 A |
Substation input: | no |
With alarm function: | no |
Width: | 45 mm |
Height: | 45 mm |
Depth: | 45 mm |
Diameter: | 35 mm |
Built-in width: | 35 mm |
Built-in depth: | 45 mm |
Built-in length: | 45 mm |
Built-in diameter: | 35 mm |
Min. depth of built-in installation box: | 45 mm |
