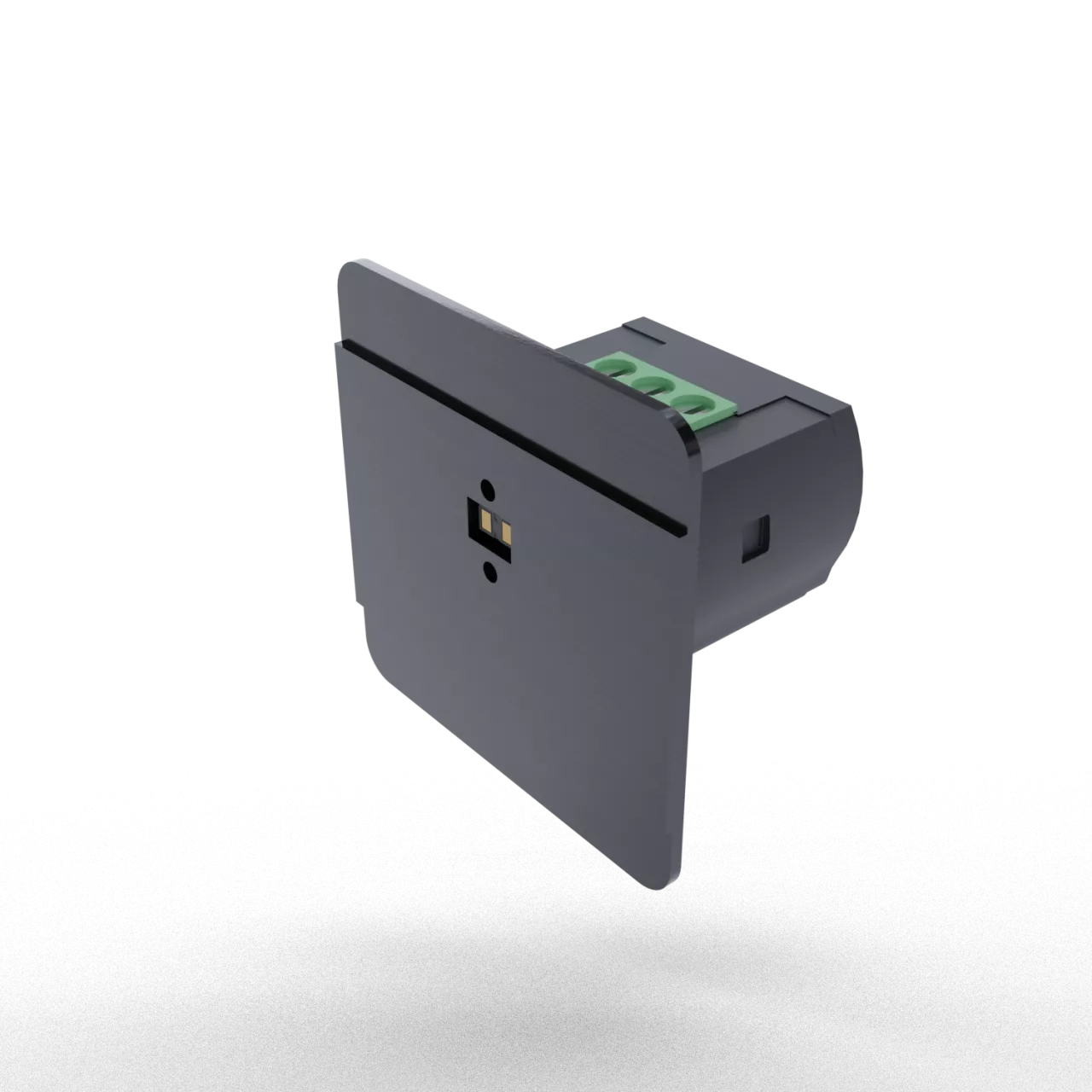

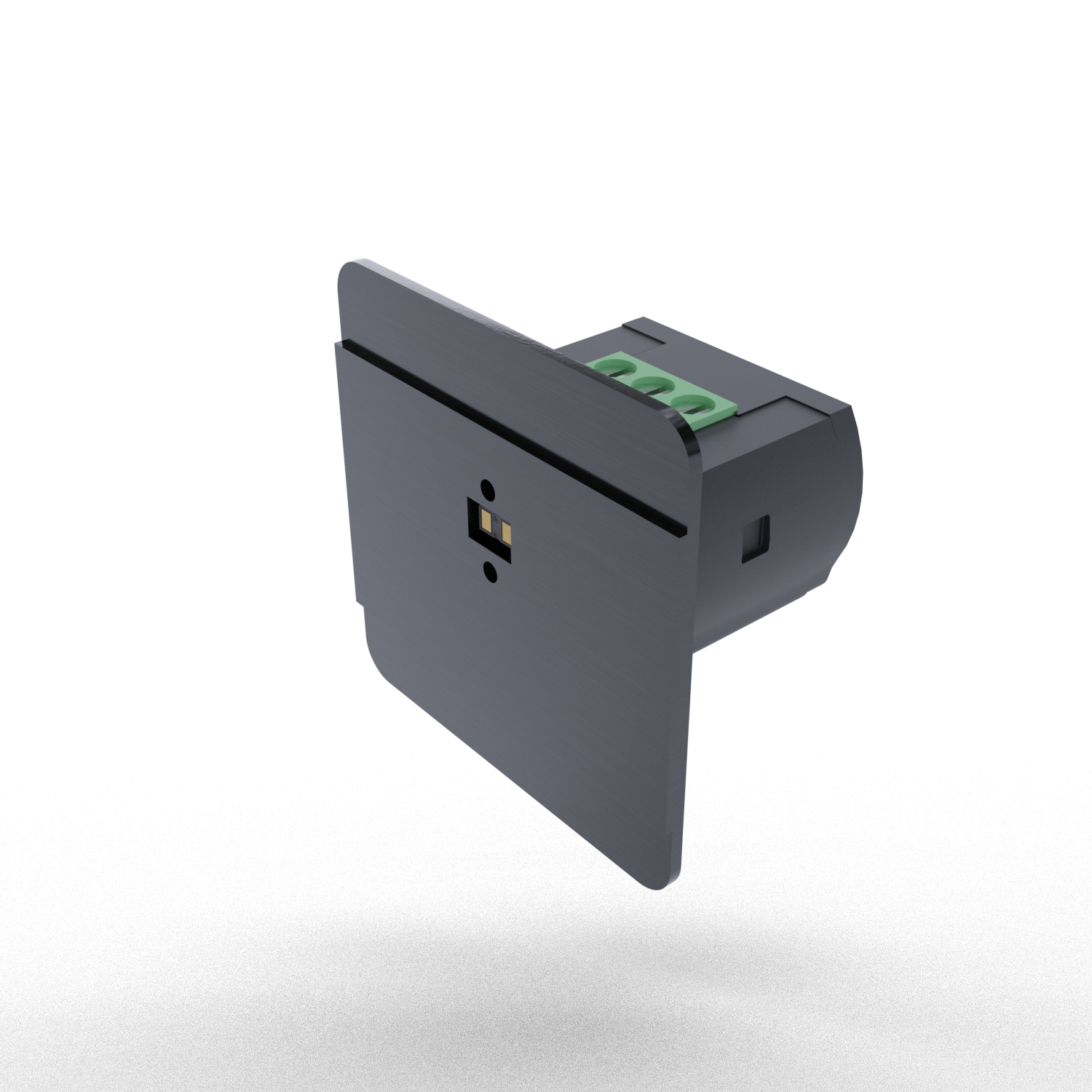

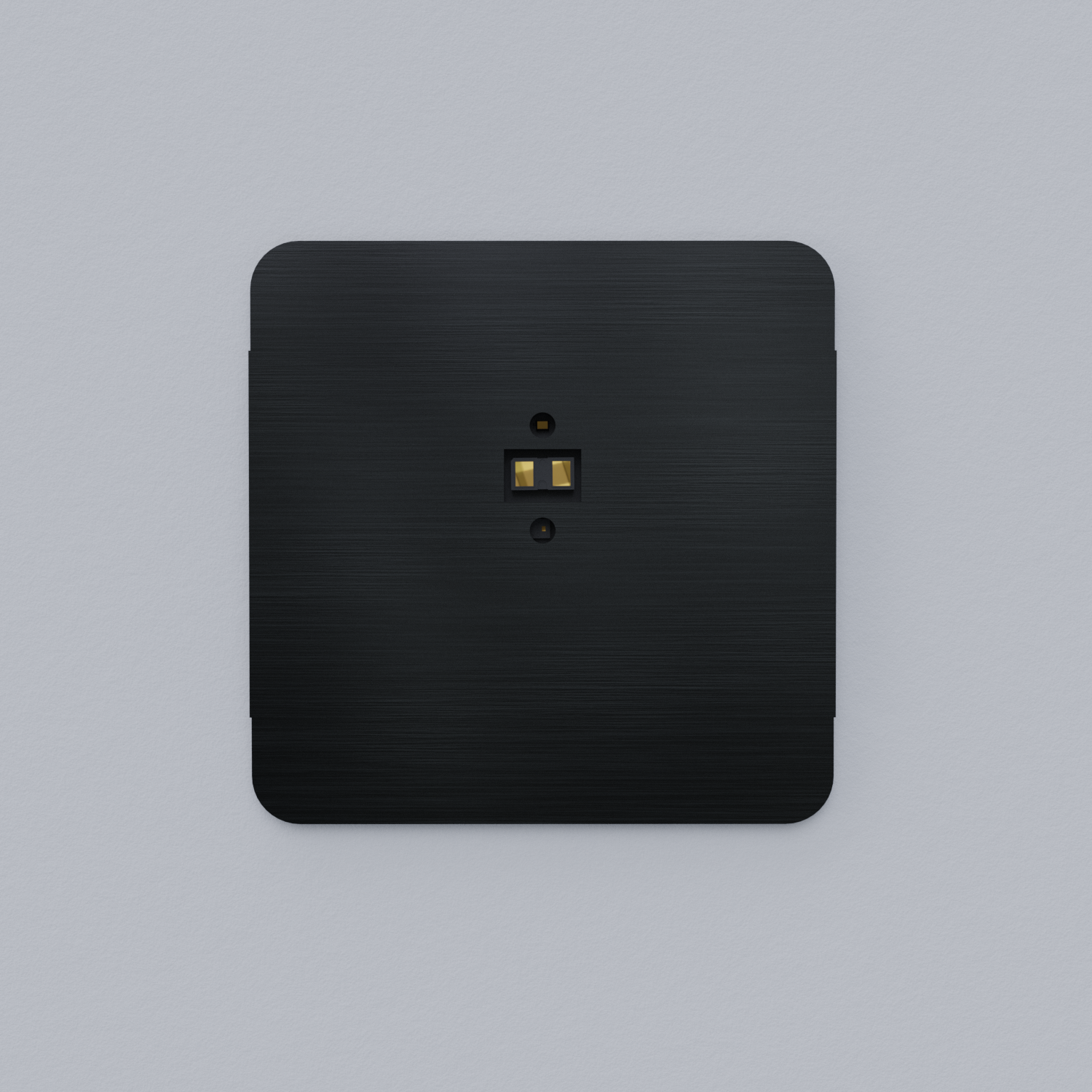

Laserowy czujnik odległości DRL-12, czujnik ruchu, antracyt
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | DR |
| Symbol | DRL-12-9 |
| GTIN(EAN) | 5902431674421 |
| Price unit | piece |
| Catalog price | 383,76 zł (312,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 9÷27 V DC Maksymalny prąd obciążenia 4 A Próg zadziałania - regulowany 2÷500 lx Pole detekcji 0,1÷2,0 m regulowane Czas załączenia odbiornika - regulowany 0÷10 min. Rodzaj detekcji czujnik laserowy ToF Długość fali 940 nm Bezpieczeństwo klasa 1 Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Pobór mocy 0,3 W Temperatura pracy -10÷45°C Wymiary zewnętrzne 45×45×1,5 mm; wewnętrzne (puszka) ø35 mm, głębokość 45 mm Montaż podtynkowy Stopień ochrony IP40
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 17 g |
| ETIM class: | Movement sensor/presence detector complete |
| Model: | Movement sensor |
| Sensor type: | Other |
| With DALI interface: | no |
| Constant light control: | yes |
| HVAC-control: | no |
| Forced switch on: | yes |
| Forced switch off: | no |
| Animal zone: | no |
| Creep-under protection: | no |
| Networkable: | yes |
| Scan angle: | 10 ° |
| Staircase light controller: | yes |
| Bridging switch: | no |
| Max. reach sideways: | 0 m |
| Max. presence range: | 1 m² |
| Max. reach frontally: | 2 m |
| Diameter reach on floor: | 1 m |
| Suitable for wireless transmission: | no |
| Remote operation: | no |
| With remote control: | no |
| Response value sensitivity adjustable: | yes |
| Response value luminosity adjustable: | yes |
| With signal unit: | yes |
| Teach-function for response value luminosity: | no |
| Dim function with dimmer basic element: | yes |
| Mounting method: | Flush-mounted |
| Suitable for ceiling mounting: | no |
| Connection type: | Screwed terminal |
| Material: | Metal |
| Material quality: | Stainless steel |
| Halogen free: | no |
| Surface protection: | Other |
| Anti-bacterial treatment: | no |
| Colour: | Stainless steel |
| Transparent: | no |
| Degree of protection (IP): | IP20 |
| Impact strength: | IK00 |
| Voltage type: | DC |
| Min. switch-on time: | 1 s |
| Max. duty cycle: | 10 min |
| Switch-off delay: | 1 s |
| Switching-on delay: | 1 s |
| Response value luminosity: | 2 - 500 lx |
| Max. switching power: | 50 W |
| Suitable for C-load: | yes |
| Number of switching zones: | 1 |
| Max. starting current: | 4 A |
| Min. starting current: | 0.1 A |
| Substation input: | no |
| With alarm function: | no |
| Width: | 45 mm |
| Height: | 45 mm |
| Depth: | 45 mm |
| Diameter: | 35 mm |
| Built-in width: | 35 mm |
| Built-in depth: | 45 mm |
| Built-in length: | 45 mm |
| Built-in diameter: | 35 mm |
| Min. depth of built-in installation box: | 45 mm |
