Description:

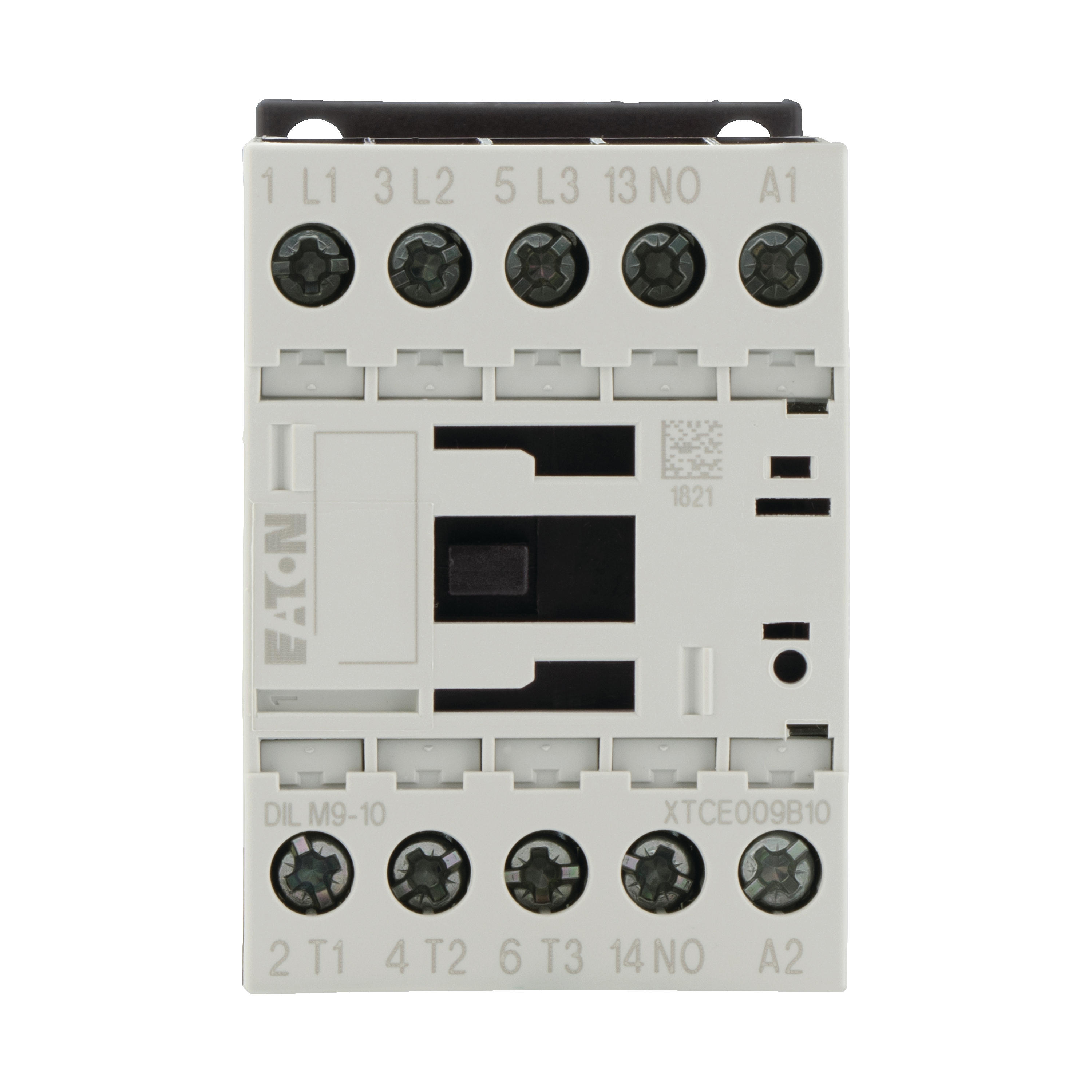

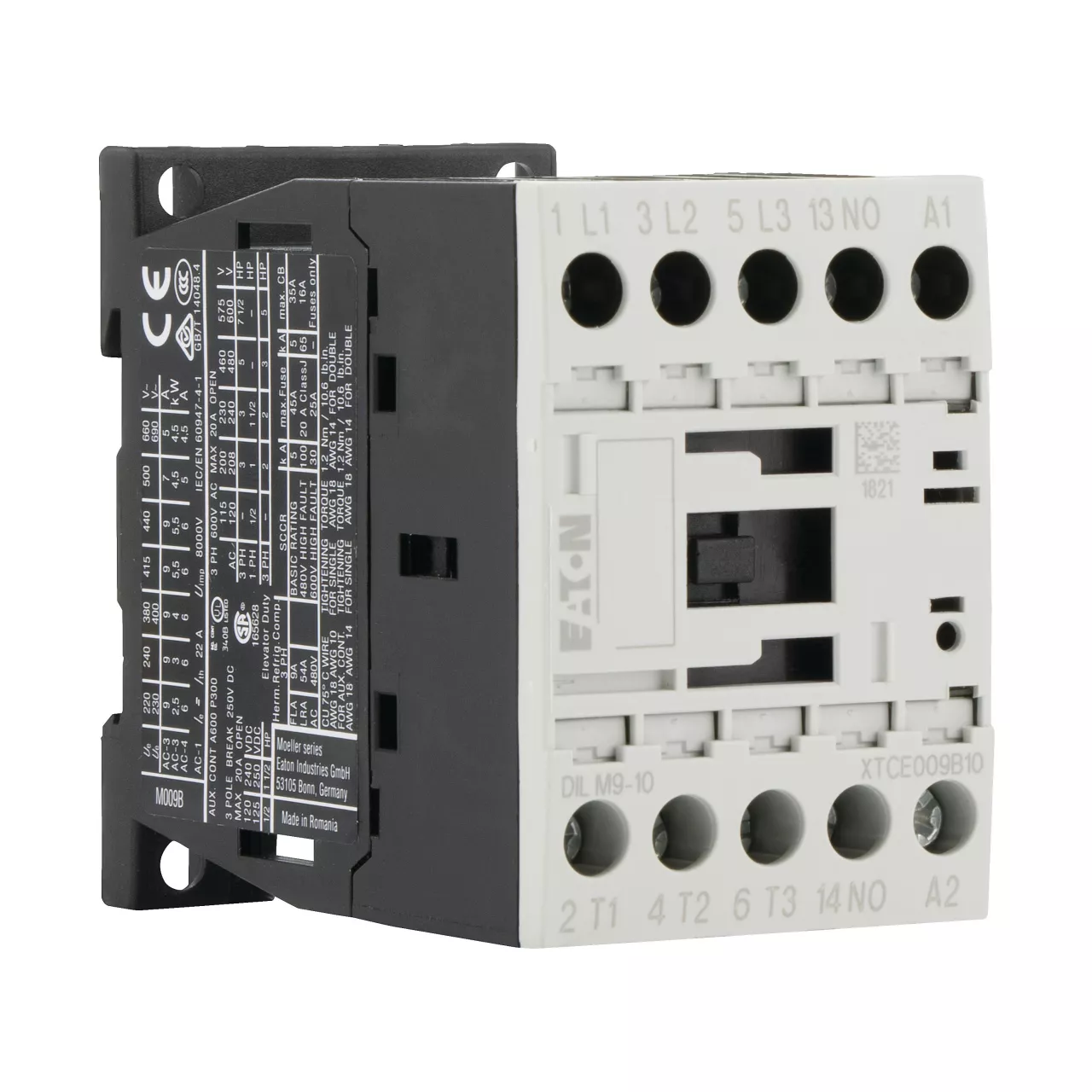

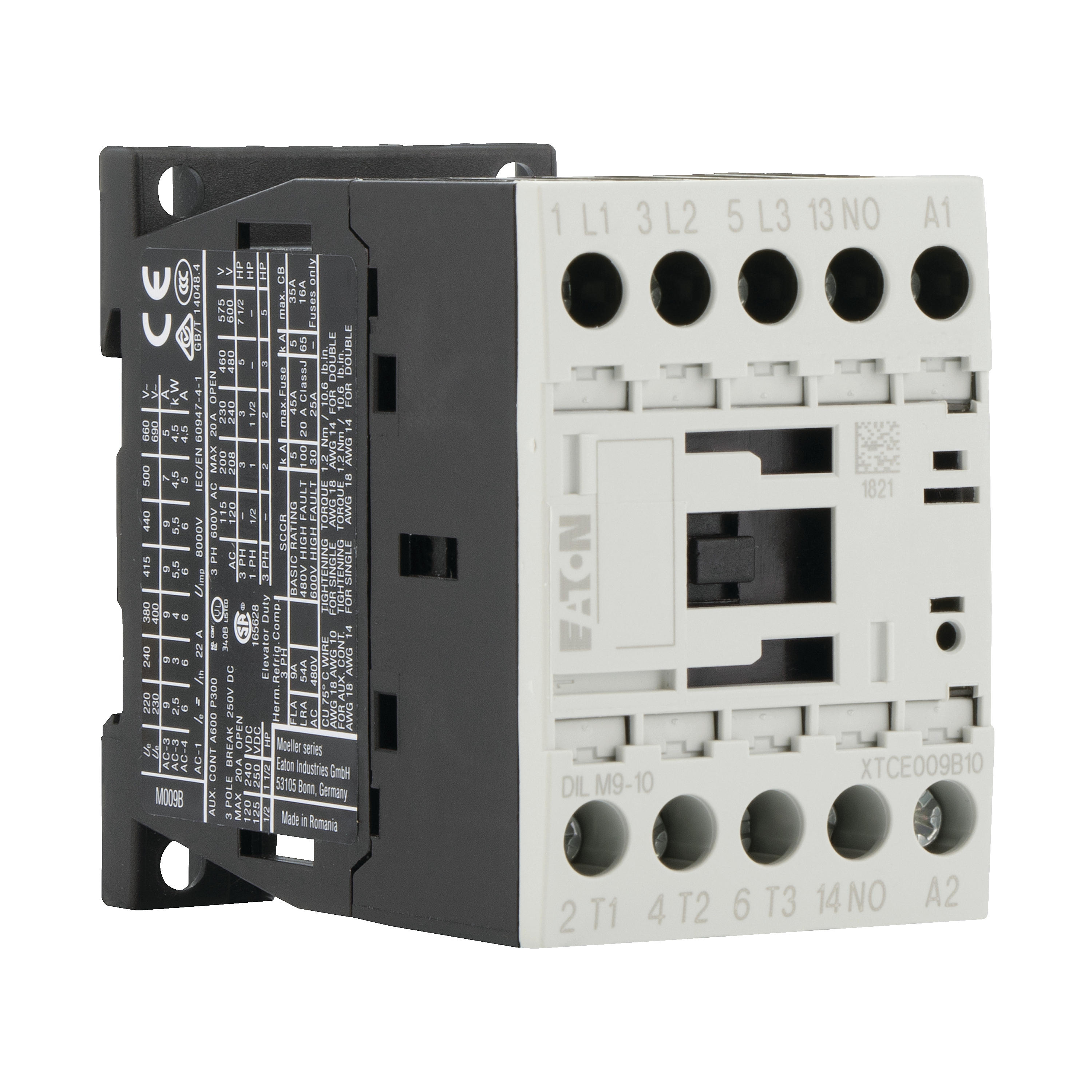

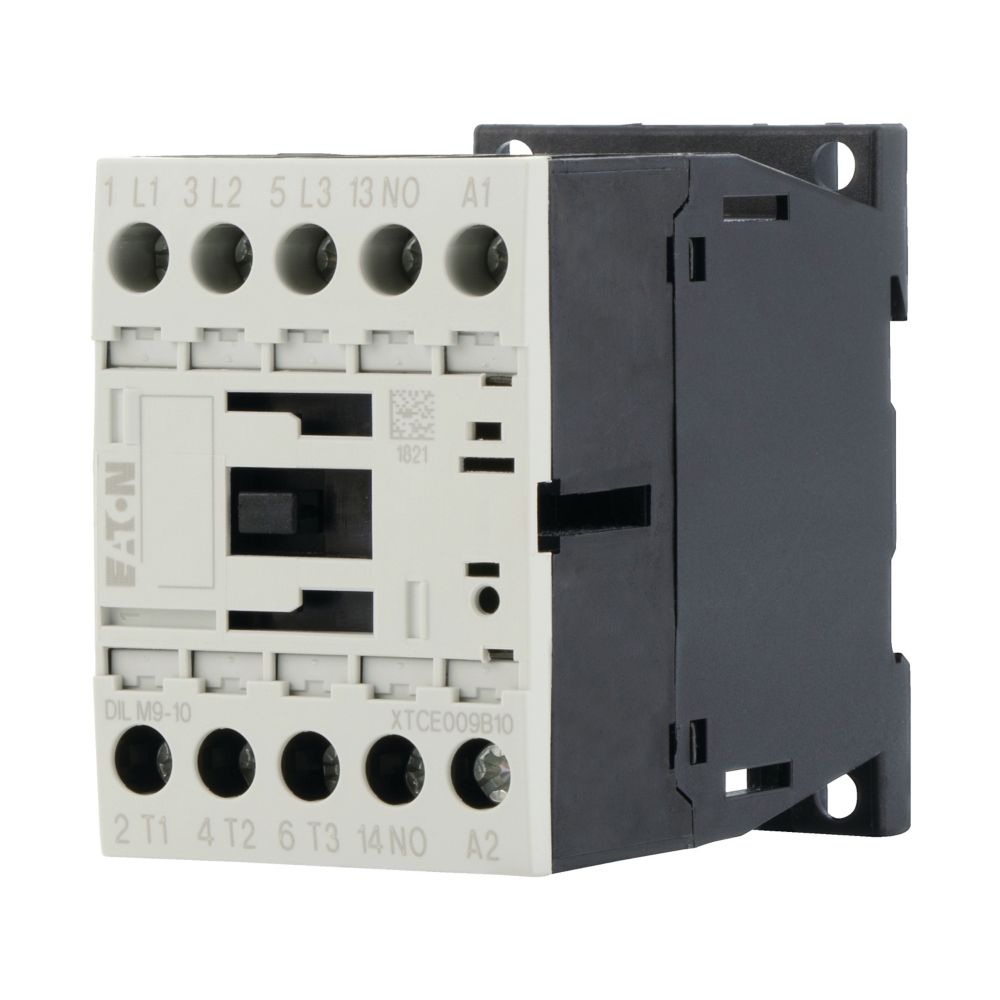

Stycznik, Zastosowanie: Styczniki do silników, Styczniki do 170 A, 3-biegunowy, Kategoria użytkowa: AC-1: Obciążenia nieindukcyjne lub obciążenia o małej indukcyjności, piece oporowe, NAC-3: Standard. silniki indukcyjne AC: rozruch, wyłączanie w trakcie pracy, AC-4: Stand.silniki induk.AC:rozruch,podłącz.,cofanie,pr. spowol.,Sposób podłącz.: Zaciski śrubowe, Uwagi: Odpowiednie również dla silników o klasie sprawności IE3., Urządzenia spełniające normy IE3 są oznaczone odpowiednim logo na opakowaniu., Liczba biegunów: 3-biegunowy, Znamionowy prąd roboczy AC-3, 380 V 400 V: Ie= 9 A, Znamionowy prąd roboczy AC-1 Prąd cieplny umowny na wolnym powietrzu, 3-biegunowy
Number of normally closed contacts as main contact:
0
Number of normally open contacts as main contact:
3
Type of electrical connection of main circuit:
Screw connection
Rated operation current Ie at AC-1, 400 V:
22 A
Rated operation current Ie at AC-3, 400 V:
9 A
Rated operation power at AC-3, 400 V:
4 kW
Rated operation current Ie at AC-4, 400 V:
6 A
Rated operation power at AC-4, 400 V:
2,5 kW
Rated operation power NEMA:
3,7 kW
Number of auxiliary contacts as normally open contact:
1
Number of auxiliary contacts as normally closed contact:
0
Modular version:
no
Operating voltage AC 50 Hz:
24 - 690 V
Operating voltage AC 60 Hz:
24 - 690 V
Width:
45 mm
Height:
68 mm
Depth:
75 mm
