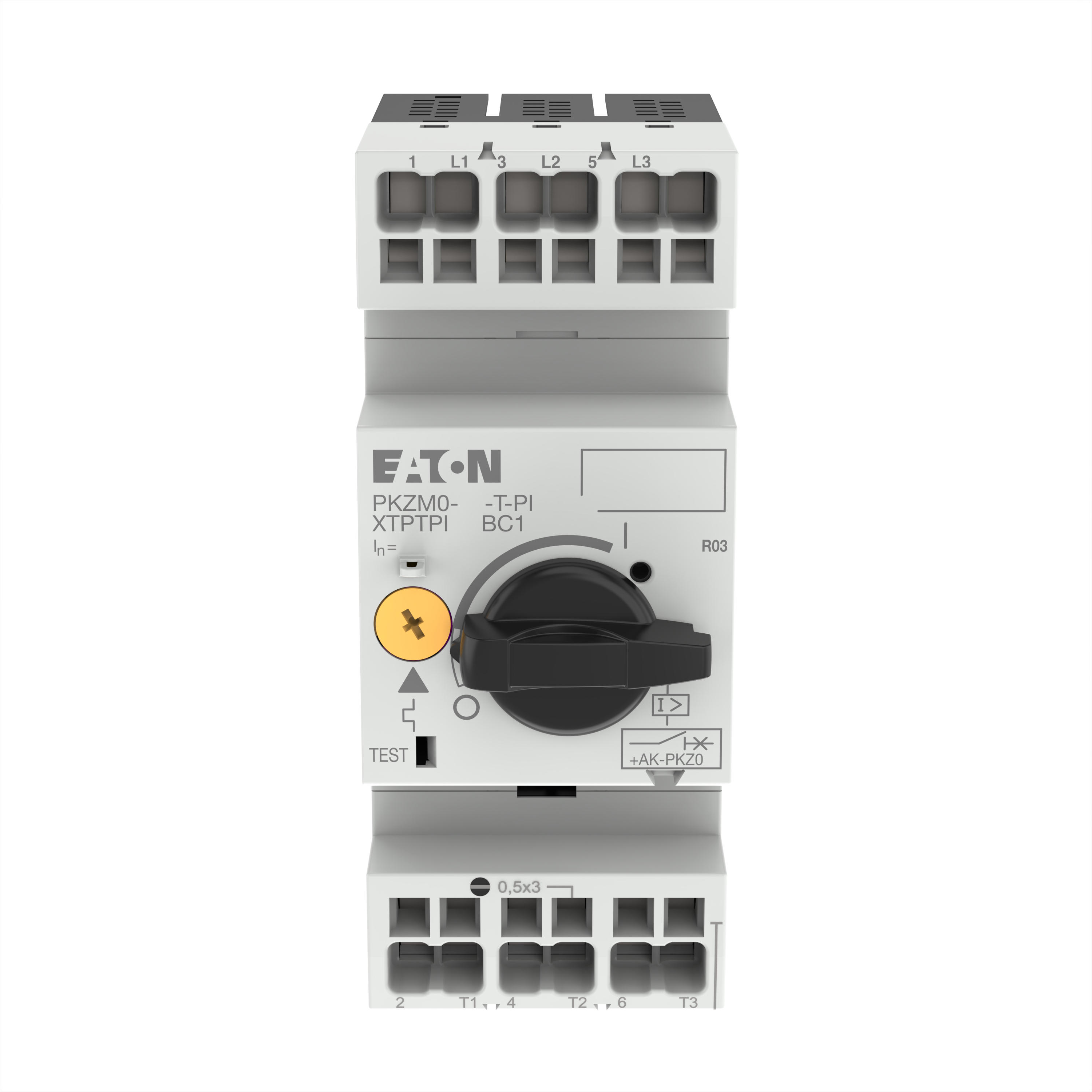

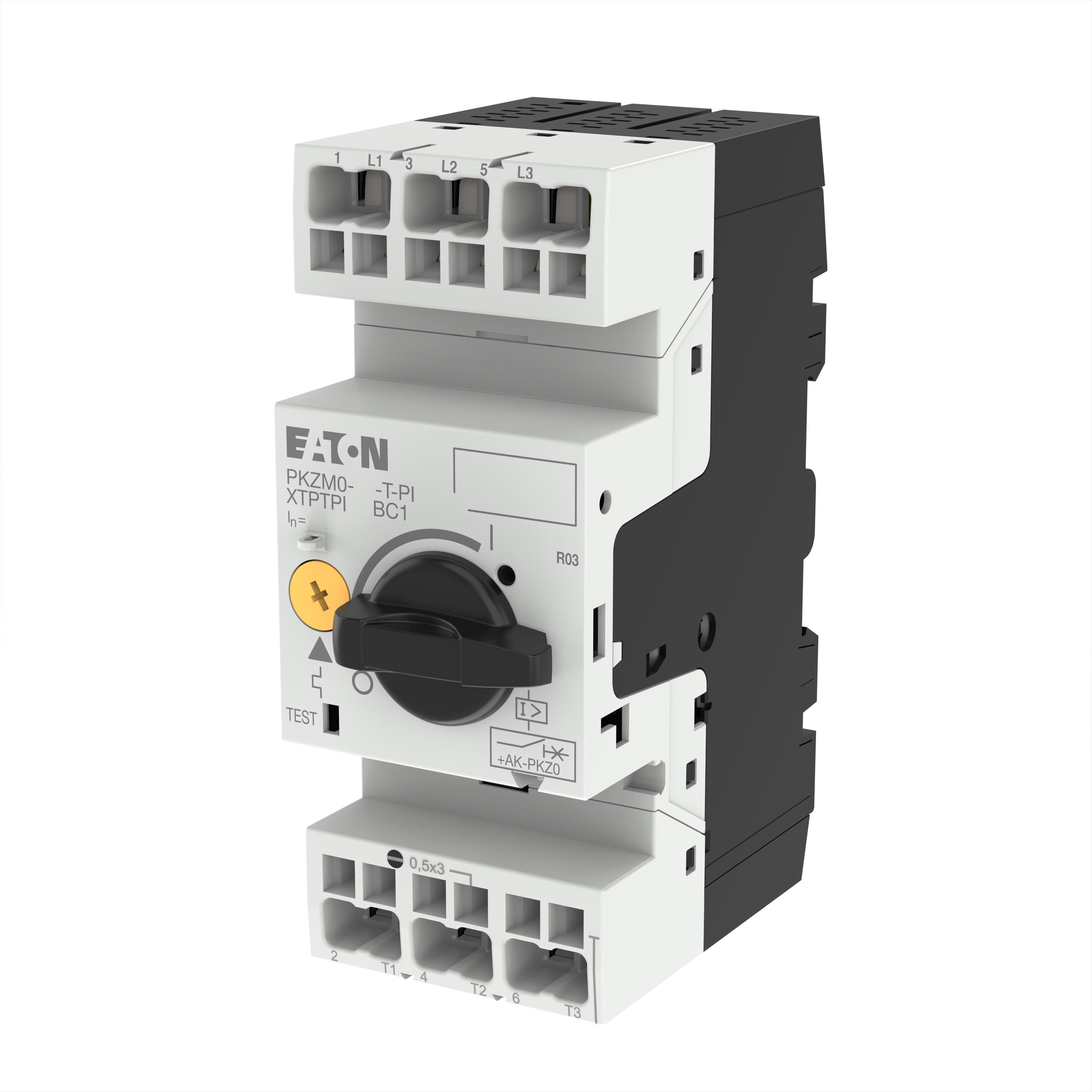

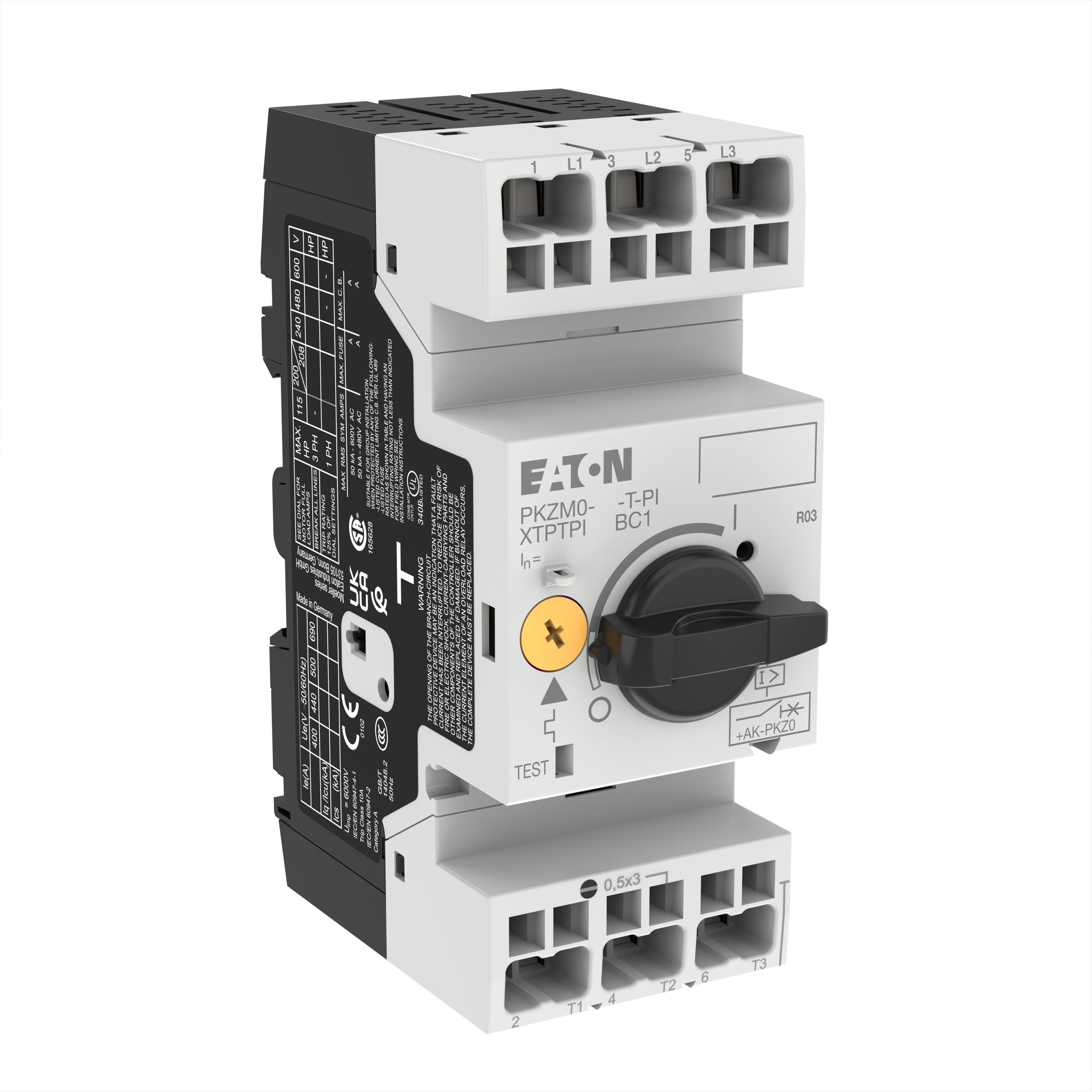

PKZM0-10-T-PI Wył. do ochrony transformatora PKZM0-T Push-In 6,3..10A
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 199172 |
GTIN(EAN) | 4015081972562 |
Price unit | piece |
Catalog price | 569,49 zł (463,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 344 g |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Rated permanent current Iu: | 10 A |
Rated voltage: | 690 - 690 V |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 150 kA |
Overload release current setting: | 10 - 10 A |
Adjustment range short-term delayed short-circuit release: | 0 - 0 A |
Adjustment range undelayed short-circuit release: | 224 - 224 A |
Integrated earth fault protection: | no |
Type of electrical connection of main circuit: | Spring clamp connection |
Device construction: | Built-in device fixed built-in technique |
Suitable for DIN rail (top hat rail) mounting: | no |
DIN rail (top hat rail) mounting optional: | yes |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
With switched-off indicator: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Position of connection for main current circuit: | Other |
Type of control element: | Turn button |
Complete device with protection unit: | no |
Motor drive integrated: | no |
Motor drive optional: | no |
Degree of protection (IP): | IP20 |
