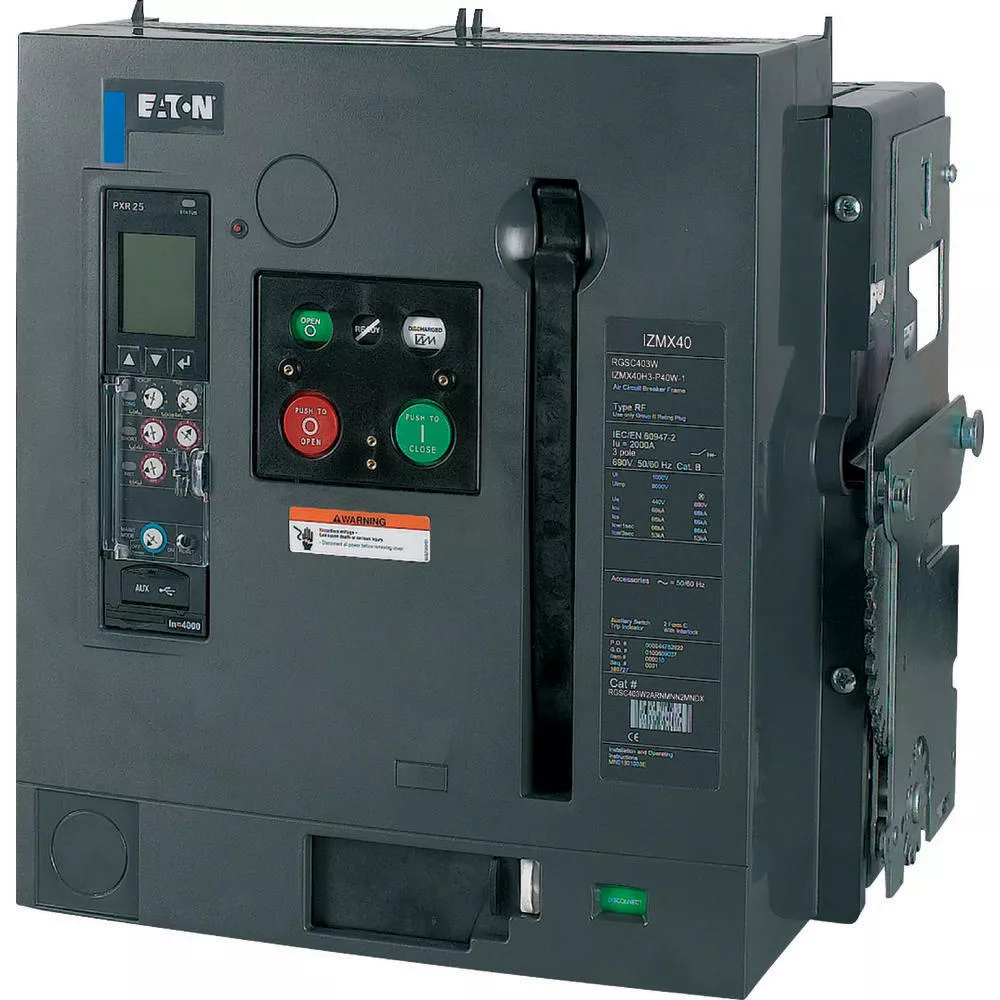

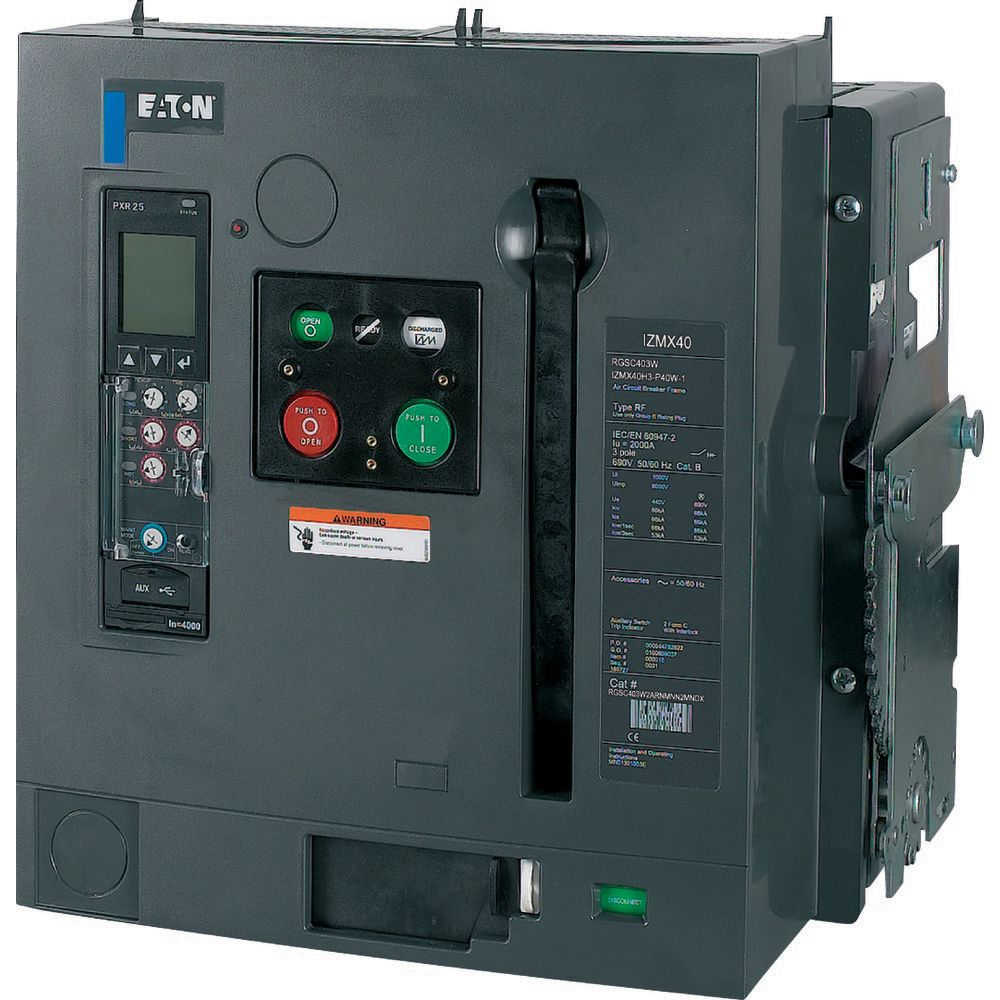

IZMX40B3-V40W-1 Wyłącznik IZMX40B, 3-bieg., 4000 A, wysuwny, PXRV
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 183733 |
GTIN(EAN) | 4015081794690 |
Price unit | piece |
Catalog price | 160 199,53 zł (130 243,52 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 69 kg |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Rated permanent current Iu: | 4000 A |
Rated voltage: | 690 - 690 V |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 66 kA |
Overload release current setting: | 1600 - 4000 A |
Adjustment range short-term delayed short-circuit release: | 2400 - 40000 A |
Adjustment range undelayed short-circuit release: | 8000 - 60000 A |
Integrated earth fault protection: | no |
Type of electrical connection of main circuit: | Rail connection |
Device construction: | Built-in device slide-in technique (withdrawable) |
Suitable for DIN rail (top hat rail) mounting: | no |
DIN rail (top hat rail) mounting optional: | no |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 2 |
With switched-off indicator: | yes |
With integrated under voltage release: | no |
Number of poles: | 3 |
Position of connection for main current circuit: | Back side |
Type of control element: | Push button |
Complete device with protection unit: | yes |
Motor drive integrated: | no |
Motor drive optional: | yes |
Degree of protection (IP): | IP31 |
