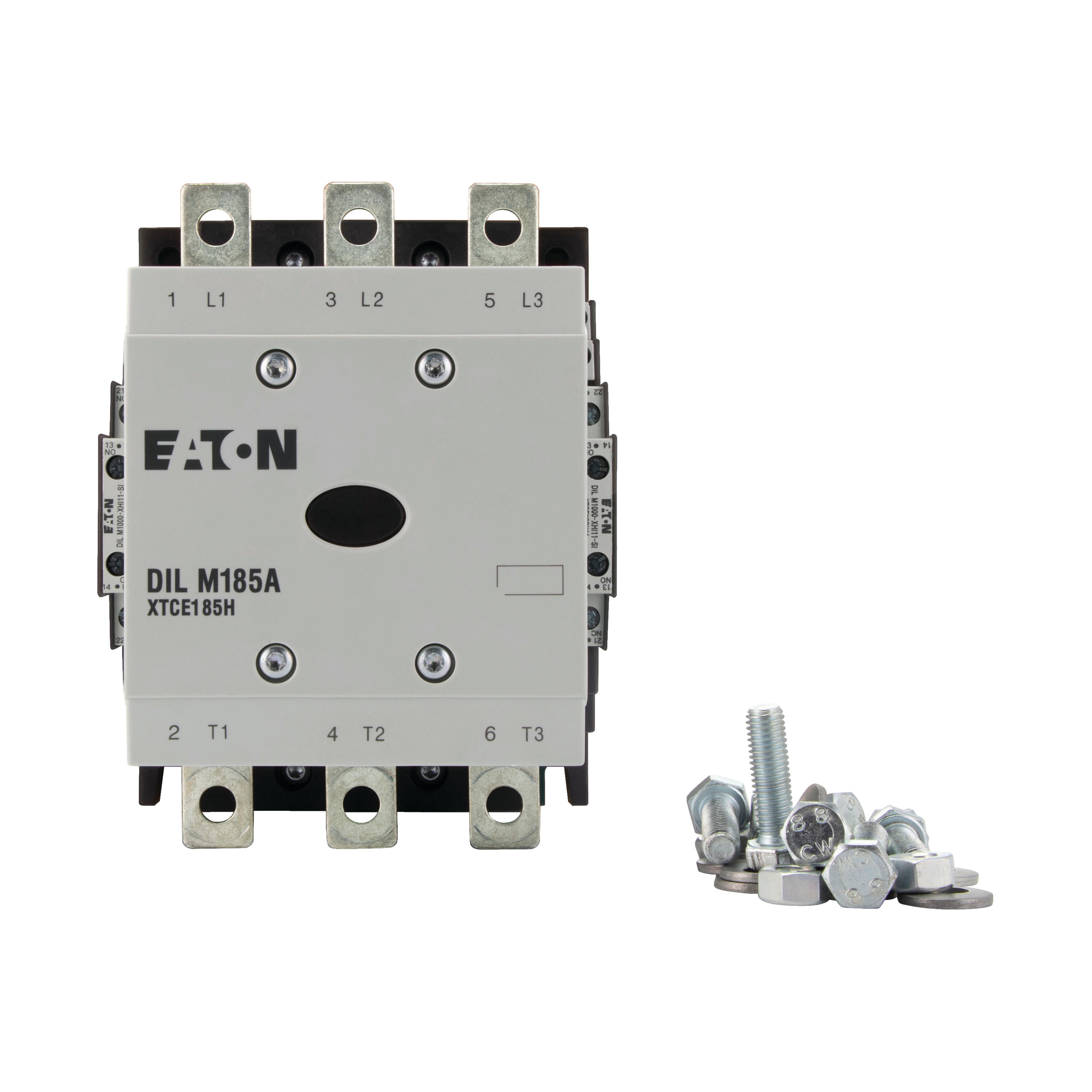

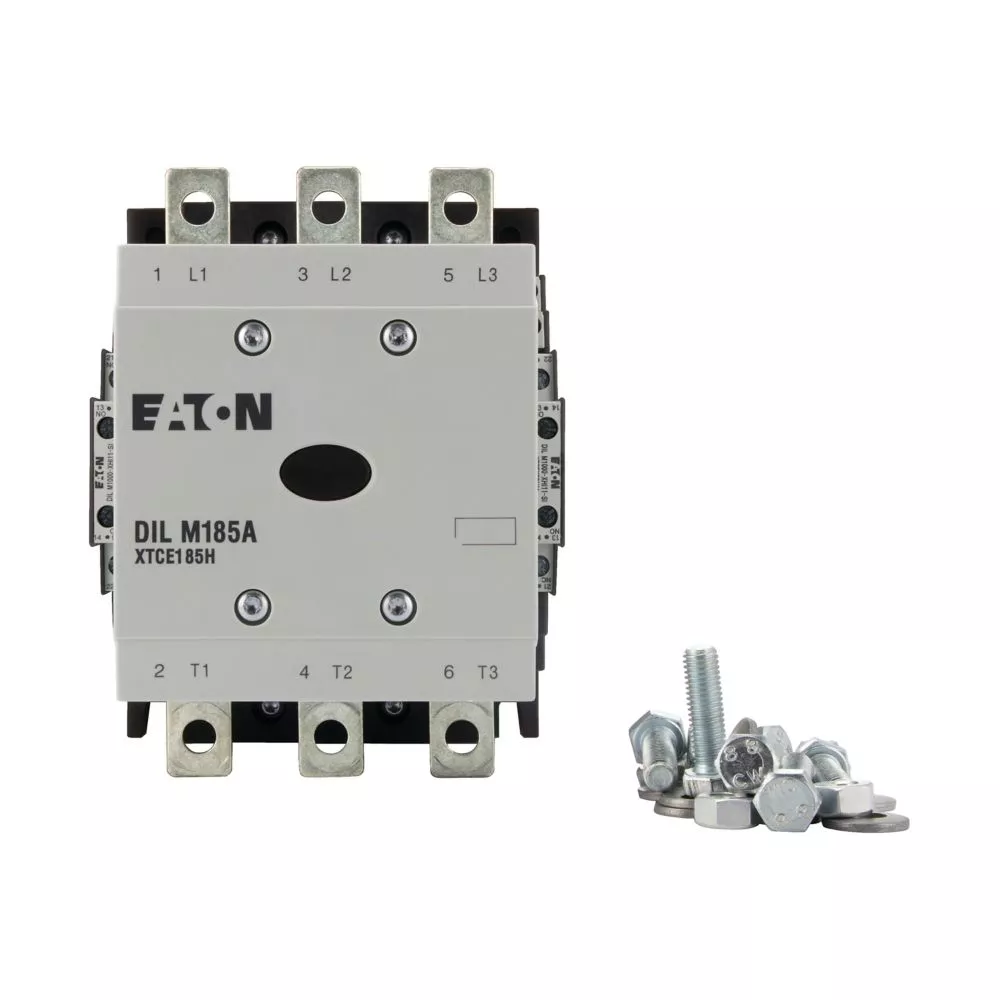

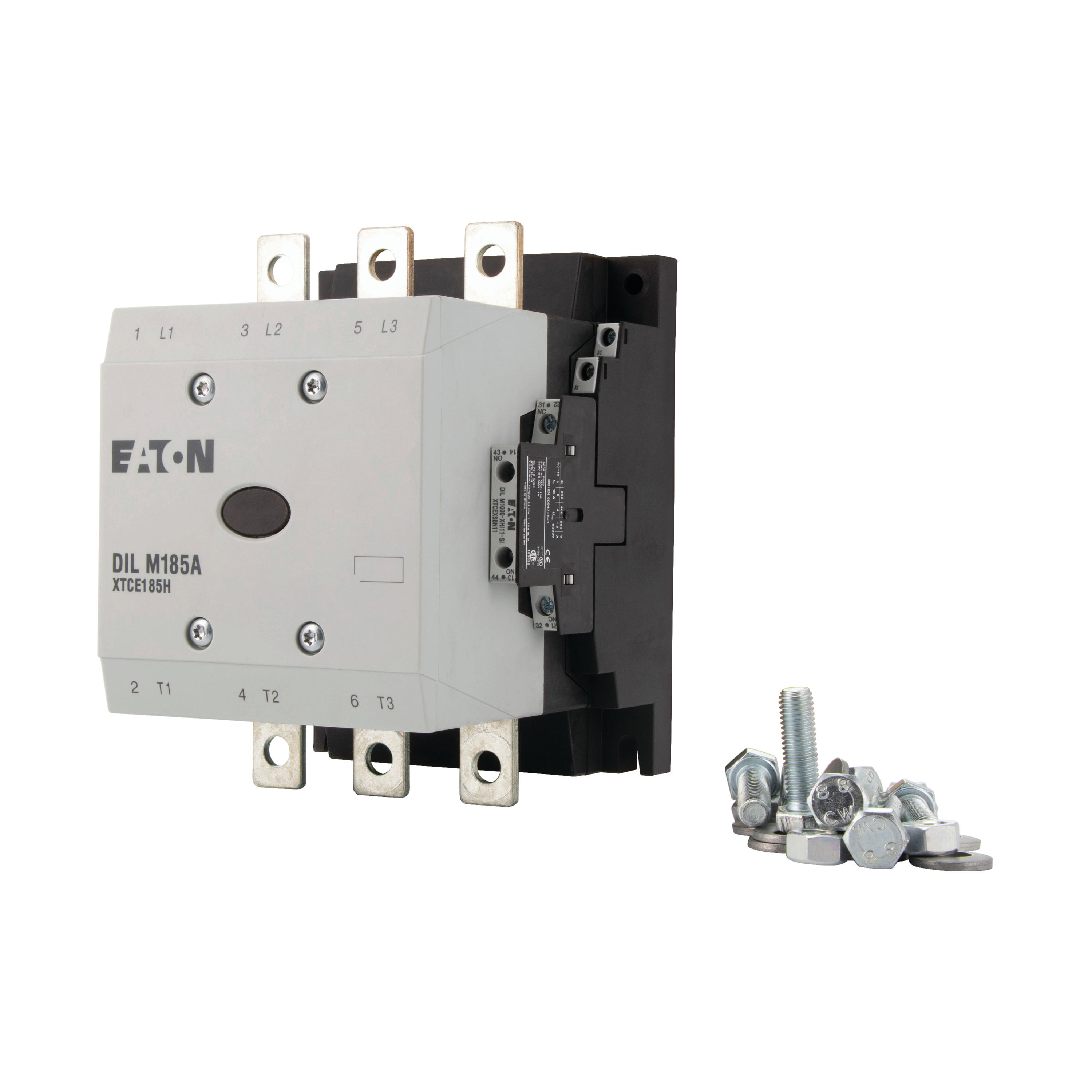

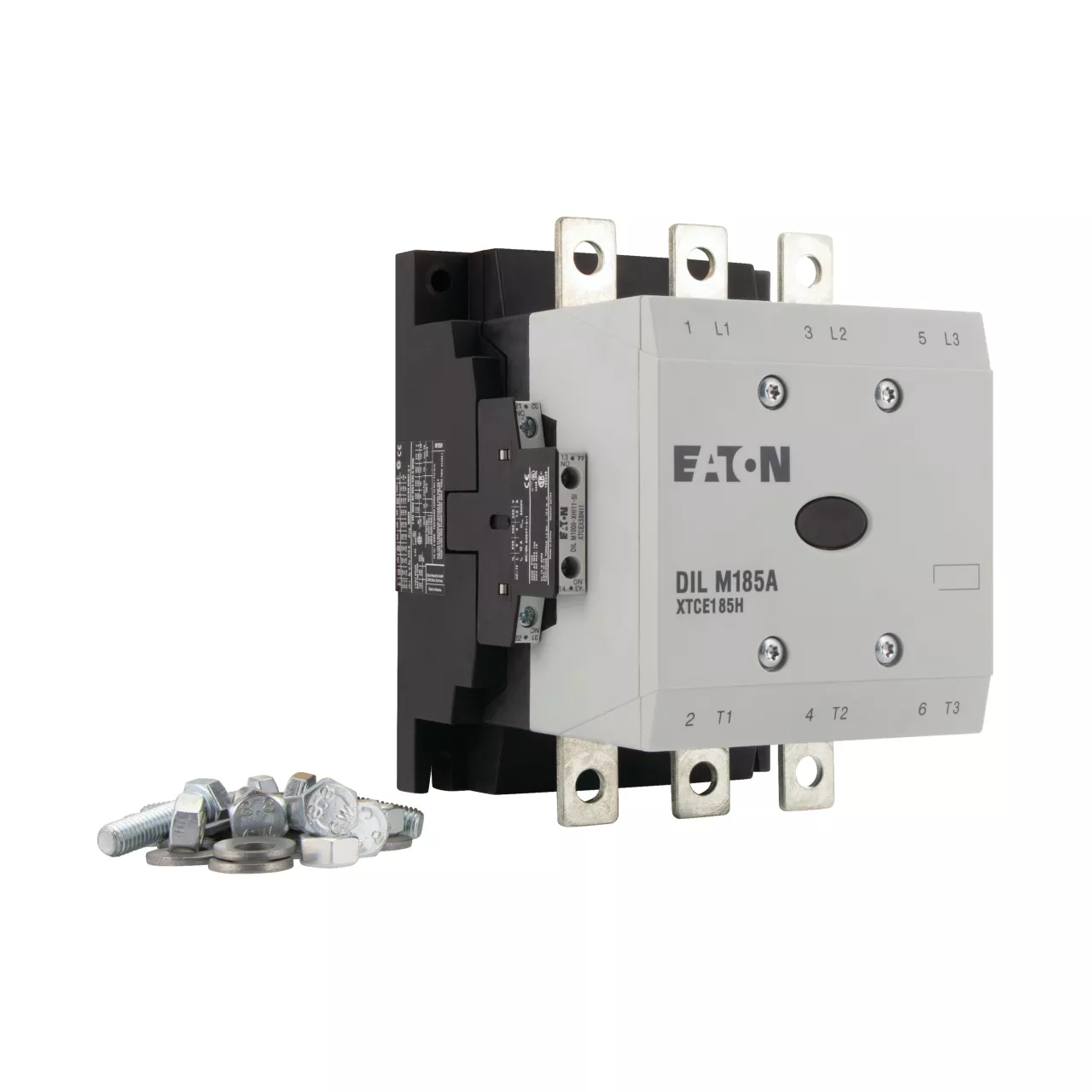

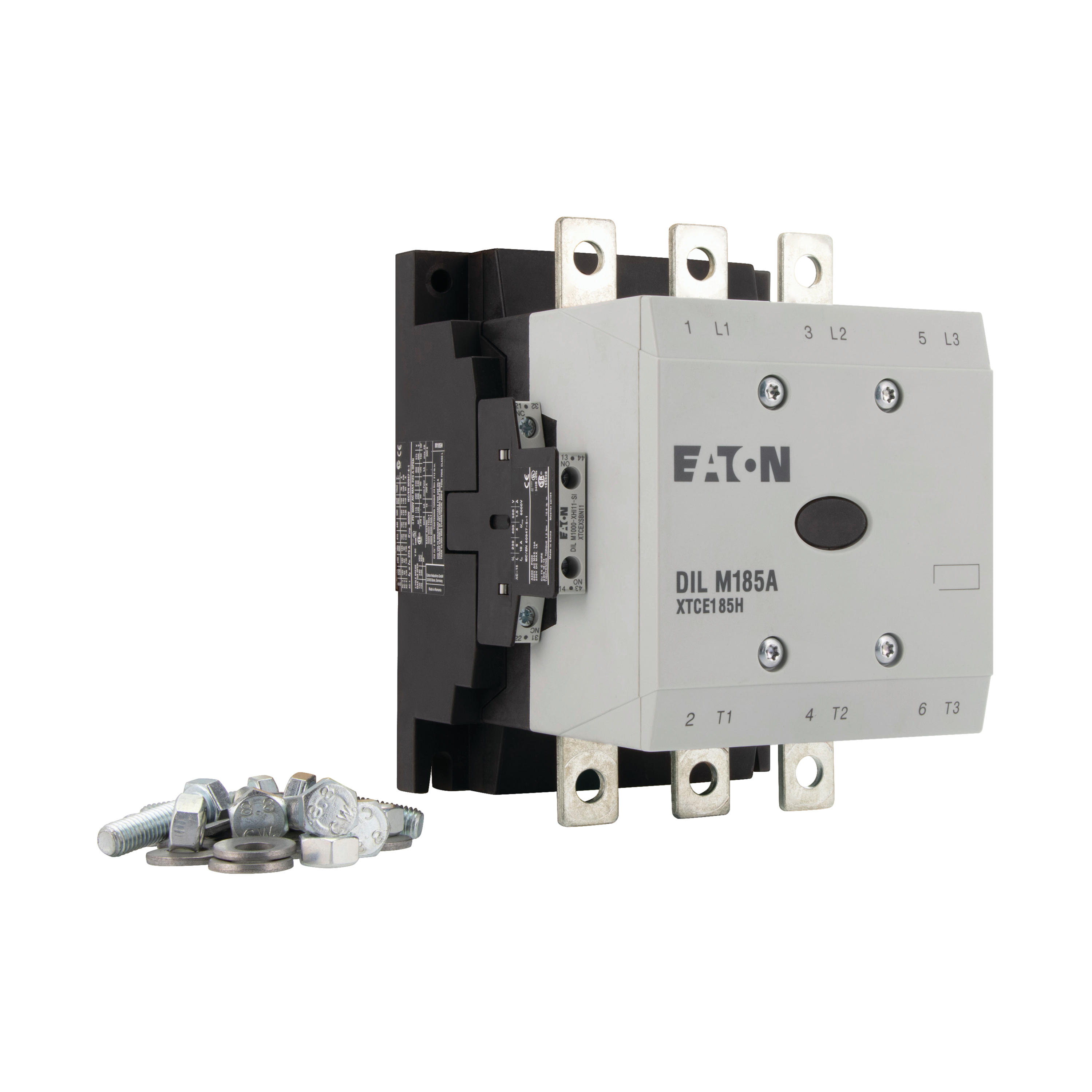

DILM185A/22(RAC240) Stycznik mocy 185 A (90kW/400V), AC3
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 139537 |
| GTIN(EAN) | 4015081363155 |
| Price unit | piece |
| Catalog price | 4 111,89 zł (3 343,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Magneetschakelaar, toepassing: Magneetschakelaars voor motoren, standaardapparaten groter dan 170 A, gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, AC-4: Normale AC-inductiemotoren: starten, tegenstroomremmen, omkeren, tippen, aansluittechniek: Schroefaansluiting, nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 185 A, nominale bedrijfsstroom AC-1 conventionele thermische stroom in vrije lucht, 3-polig, 50 - 60 Hz open bij 40 °C: Ith =Ie= 337 A, in kast: Ith= 245 A, nominale bedrijfsstroom AC-1 conventionele thermische stroom in vrije lucht
Additional features:
| Information | Value |
|---|---|
| Net weight: | 3,54 kg |
| Country of origin | Rumunia |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 190 - 240 V |
| Rated control supply voltage AC 60 Hz: | 190 - 240 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-3, 400 V: | 185 A |
| Rated operation power at AC-3, 400 V: | 90 kW |
| Rated operation current Ie at AC-4, 400 V: | 136 A |
| Rated operation power at AC-4, 400 V: | 75 kW |
| Rated operation power NEMA: | 93 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 2 |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Type of electrical connection of main circuit: | Rail connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Operating voltage AC 50 Hz: | 190 - 240 V |
| Operating voltage AC 60 Hz: | 190 - 240 V |
| Width: | 140 mm |
| Height: | 190 mm |
| Depth: | 158 mm |
