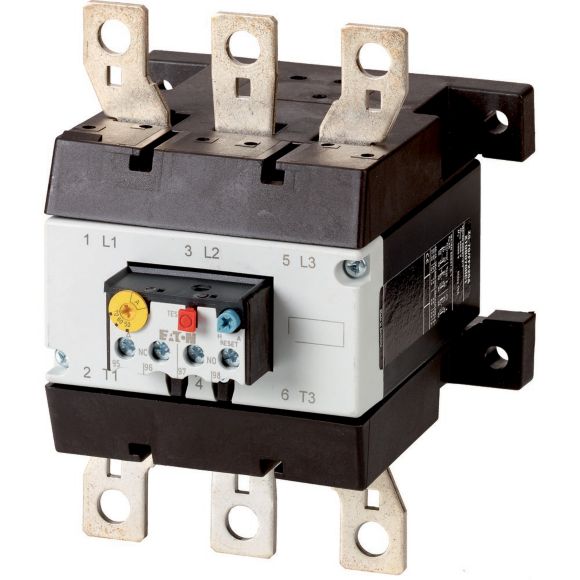

Z5-125/FF225A Przekaźnik przeciążeniowy 95 - 125 A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 139574 |
| GTIN(EAN) | 4015081363520 |
| Price unit | piece |
| Catalog price | 2 033,19 zł (1 653,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ochronny przekaźnik silnikowy do bezpośredniego montażu w styczniku o rozmiarze od DILM185A do DILM225A lub indywidualnego posadowienia, wrażliwość na brak fazy zgodnie z IEC/EN 60947, VDE0660 T.102, klasa wyzwolenia 10A, mocowanie na zaciski, ui 1000V, stopień ochrony IP00, zabezpieczenie przed dotknięciem zgodne z EN50274 z dodatkową pokrywą zacisków, urządzenia na wszystkich rynkach
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,47 kg |
| Country of origin | Niemcy |
| ETIM class: | Thermal overload relay |
| Mounting method: | Direct attachment |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Release class: | CLASS 10 A |
| Type of electrical connection of main circuit: | Screw connection |
| Max. rated operation voltage Ue: | 1000 V |
| Adjustable current range: | 95 - 125 A |
| Reset function input: | no |
| Reset function automatic: | yes |
| Reset function push-button: | yes |
